TECH PUBLICDatasheet (PDF)

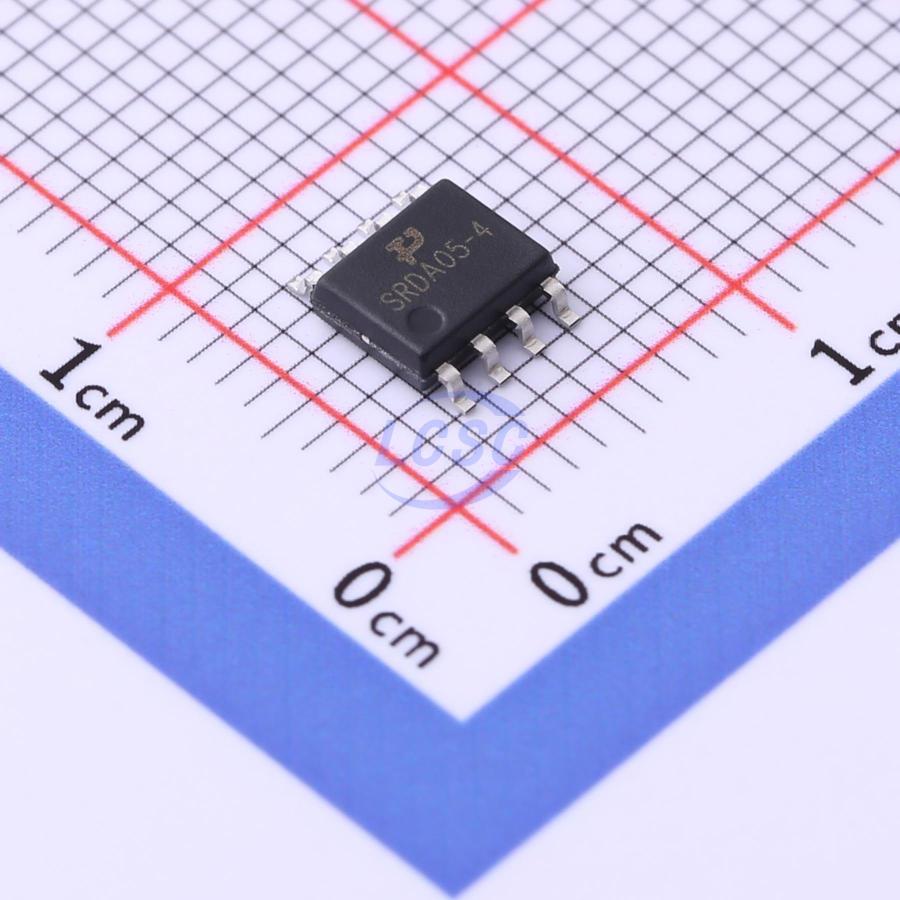

SRDA05-4
25A@8/20us 6V 5V SOP-8 TVS Diodes
SOP-8RoHSActive
Low Capacitance TVS Array
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SRDA05-4
- Store part #
- C2999128
- Package / case
- SOP-8
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,498 in stock
#C2999128
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹76.44 | ₹76.44 |
| 10+ | ₹62.08 | ₹620.80 |
| 30+ | ₹55.10 | ₹1,653.00 |
| 100+ | ₹47.92 | ₹4,792.00 |
| 500+ | ₹38.55 | ₹19,275.00 |
| 1,000+ | ₹36.37 | ₹36,370.00 |
1 × ₹76.44
₹76.44
excl. GST
₹90.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SRDA05-4
₹76.44 for 1 + GST
Specifications
- Clamping Voltage
- 10V;12V;25V
- Peak Pulse Current (Ipp)
- 25A@8/20us
- Voltage - Breakdown
- 6V
- type
- ESD
- Reverse Leakage Current (Ir)
- 500nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.21 g
Overview
Applications
- T1/E1 Line Cards
- T3/E3 and DS3 Interfaces
- STS - 1 Interfaces
- 10/100/1000BaseT Ethernet
- Set Top Box
- ISDN Interfaces
- Low Voltage Interfaces
Key features
- Protects four I/O lines
- Low capacitance (20pF) Max
- Low operating voltage: 5V
- Low clamping voltage
- Protects two lines in common and differential mode
- Complies with following standards:
- IEC61000 - 4 - 2 (ESD) immunity test Air discharge: ±30 kV Contact discharge: ±30 kV
- IEC61000 - 4 - 5 (Lightning) 25A (8/20 μs)
