TECH PUBLIC

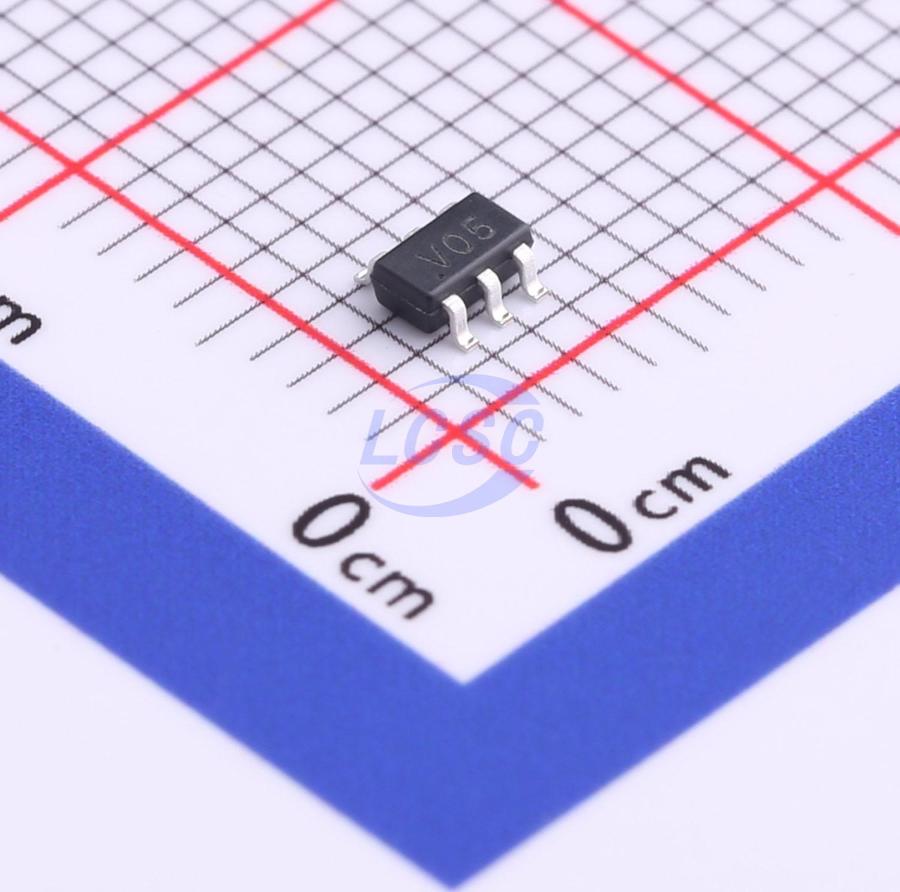

SRV05-4ATCT

18VC Clamp 5.5A@8/20us Ipp SOT-23-6

SOT-23-6RoHSActive

5VWM 18VC SOT-23-6

Manufacturer: TECH PUBLIC
Manufacturer part #: SRV05-4ATCT
Store part #: C2827642
Package / case: SOT-23-6
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,160 in stock

#C2827642

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
10+	₹5.57	₹55.70
100+	₹4.42	₹442.00
300+	₹3.85	₹1,155.00
3,000+	₹3.41	₹10,230.00
6,000+	₹3.07	₹18,420.00
9,000+	₹2.90	₹26,100.00

Quantity (min 10, multiples of 10)

10 × ₹5.57

₹55.70

excl. GST

₹65.73 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SRV05-4ATCT

₹55.70 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 18V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 5.5A@8/20us
Peak Pulse Power Dissipation (Ppp): 300W@8/20us
Number of Channels: Four channels
Voltage - Breakdown: 6V
Reverse Leakage Current (Ir): 80nA
Reverse Stand-Off Voltage (Vrwm): 5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.041 g

Overview

Applications

USB 2.0 and USB 3.0 Ports
USB OTG
Digital video interface(DVI)
Monitor and Flat Panel Displays
PCI Express and Serial SATA Ports
Gigabit Ethernet
IEEE 1394 firewire ports
Consumer products (STB, DVD, DSC, DVC...)

Key features

Ultra low capacitance: 0.4pF typical(/O to /O)
Ultralow leakage: nA level
Low operating voltage: 5V
Low clamping voltage
Up to 4 data lines and one power line protects
Complies with following standards:
IEC61000-4-2(ESD) immunity test Air discharge: ±25kV Contact discharge: ±20kV
IEC61000-4-4(EFT) 40A(5/50ns)
IEC61000-4-5 (Lightning): 5.5 A(8/20μs)
ROHS Compliant
