TECH PUBLICDatasheet (PDF)

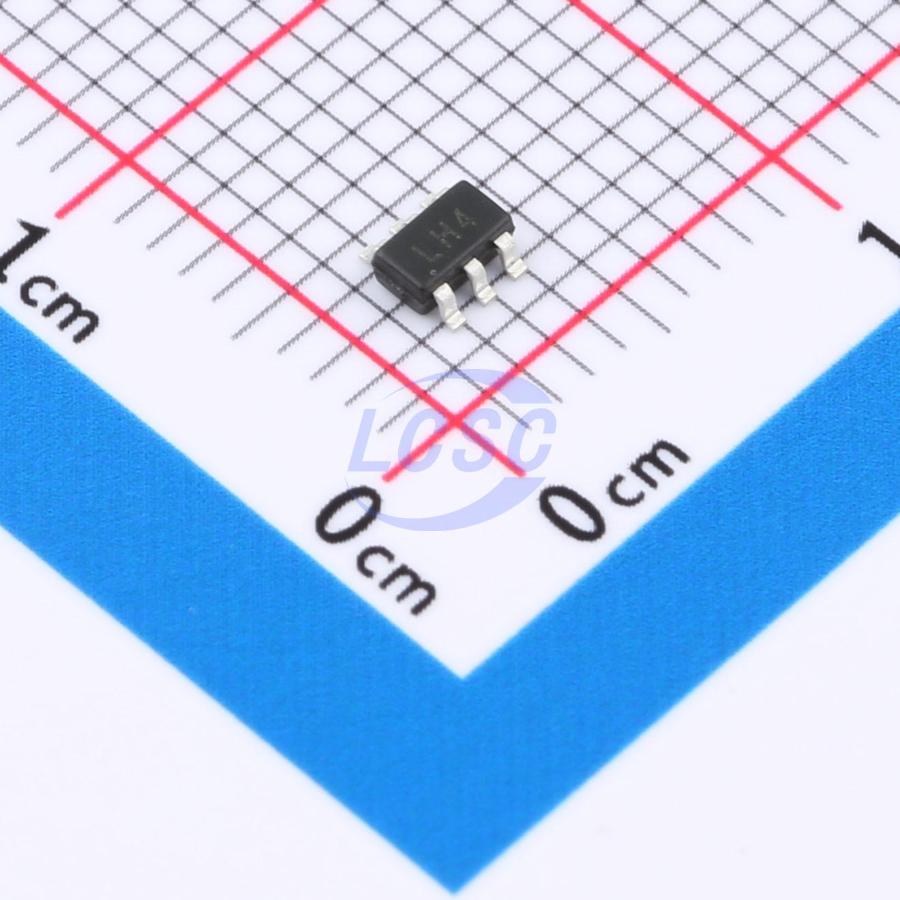

SRV05-4HTG
20VC Clamp TVS DIODE SOT-23-6
SOT-23-6RoHSActive
TVS DIODE 5VWM 20VC SOT-23-6
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SRV05-4HTG
- Store part #
- C3021103
- Package / case
- SOT-23-6
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,490 in stock
#C3021103
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.69 | ₹86.90 |
| 100+ | ₹6.89 | ₹689.00 |
| 300+ | ₹5.99 | ₹1,797.00 |
| 3,000+ | ₹4.87 | ₹14,610.00 |
| 6,000+ | ₹4.33 | ₹25,980.00 |
| 9,000+ | ₹4.06 | ₹36,540.00 |
10 × ₹8.69
₹86.90
excl. GST
₹102.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SRV05-4HTG
₹86.90 for 10 + GST
Specifications
- Clamping Voltage
- 20V
- Number of Channels
- Four channels
- Voltage - Breakdown
- 6V
- type
- TVS
- Reverse Leakage Current (Ir)
- 300nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.034 g
Overview
Applications
- USB 2.0 and USB 3.0 Ports
- USB OTG
- Digital video interface(DVI)
- Monitor and Flat Panel Displays
- PCI Express and Serial SATA Ports
- Gigabit Ethernet
- IEEE 1394 firewire ports
- Consumer products (STB, DVD, DSC, DVC…)
Key features
- Ultra low capacitance: 0.35 pF typical (I/O to I/O )
- Ultra low leakage: nA level
- Low operating voltage: 5V
- Low clamping voltage
- Up to 4 data lines and one power line protects
- Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±25kV Contact discharge: ±25kV – IEC61000-4-4 (EFT) 40A (5/50ns)
- ROHS Compliant
