MDD(Microdiode Semiconductor)Datasheet (PDF)

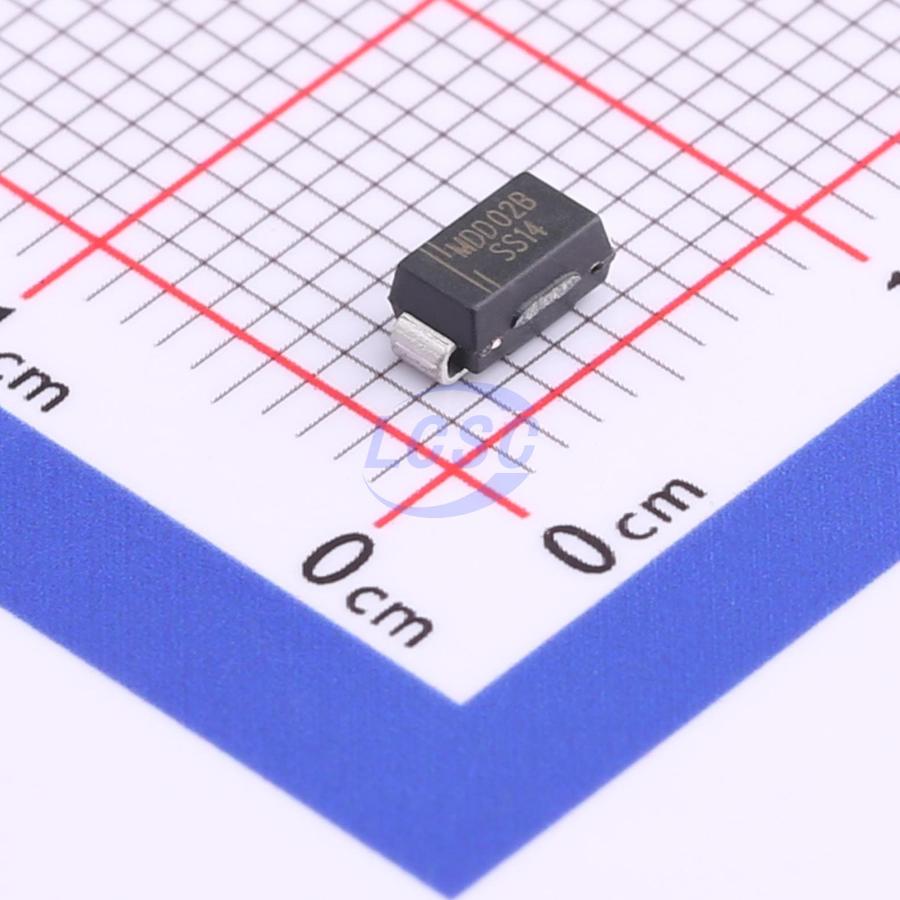

SS14
Diode Independent 40V 1A Surface Mount SMA(DO-214AC)
PopularSMA(DO-214AC)ROHS3 CompliantActive
DIODE SCHOTTKY 40V SMA(DO-214AC)
- Manufacturer
- MDD(Microdiode Semiconductor)
- Manufacturer part #
- SS14
- Store part #
- C2480
- Package / case
- SMA(DO-214AC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,48,850 in stock
#C2480
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.54 | ₹127.00 |
| 500+ | ₹2.02 | ₹1,010.00 |
| 1,500+ | ₹1.79 | ₹2,685.00 |
| 5,000+ | ₹1.28 | ₹6,400.00 |
| 25,000+ | ₹1.20 | ₹30,000.00 |
| 50,000+ | ₹1.16 | ₹58,000.00 |
50 × ₹2.54
₹127.00
excl. GST
₹149.86 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SS14
₹127.00 for 50 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Diode Configuration
- Standalone
- Voltage - Forward(Vf@If)
- 550mV@1A
- Reverse Leakage Current (Ir)
- 300uA@40V
- Non-Repetitive Peak Forward Surge Current
- 25A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.121 g
Overview
Key features
- Plastic package compliant with UL 94V-0 flammability rating
- Surface mount application
- Metal-silicon junction, majority carrier conduction
- Low power consumption, high efficiency
- Built-in stress relief structure for automated placement
- High forward surge current capability
- High-temperature soldering guaranteed: leads withstand 250°C/10 seconds
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SS16#C2481MDD(Microdiode Semiconductor) · SMA(DO-214AC) | MDD(Microdiode Semiconductor) | SMA(DO-214AC) | 3,09,400 | ₹2.91 · 3,09,400 in stock | View |
 | B340A#C64982MDD(Microdiode Semiconductor) · SMA(DO-214AC) | MDD(Microdiode Semiconductor) | SMA(DO-214AC) | 6,62,200 | ₹5.53 · 6,62,200 in stock | View |
 | SS24#C50645MDD(Microdiode Semiconductor) · SMA(DO-214AC) | MDD(Microdiode Semiconductor) | SMA(DO-214AC) | 7,81,050 | ₹3.43 · 7,81,050 in stock | View |
 | SS34#C8678MDD(Microdiode Semiconductor) · SMA(DO-214AC) | MDD(Microdiode Semiconductor) | SMA(DO-214AC) | 33,19,040 | ₹4.64 · 33,19,040 in stock | View |
 | SS54#C22452MDD(Microdiode Semiconductor) · SMA(DO-214AC) | MDD(Microdiode Semiconductor) | SMA(DO-214AC) | 19,37,400 | ₹5.93 · 19,37,400 in stock | View |
