VISHAYDatasheet (PDF)

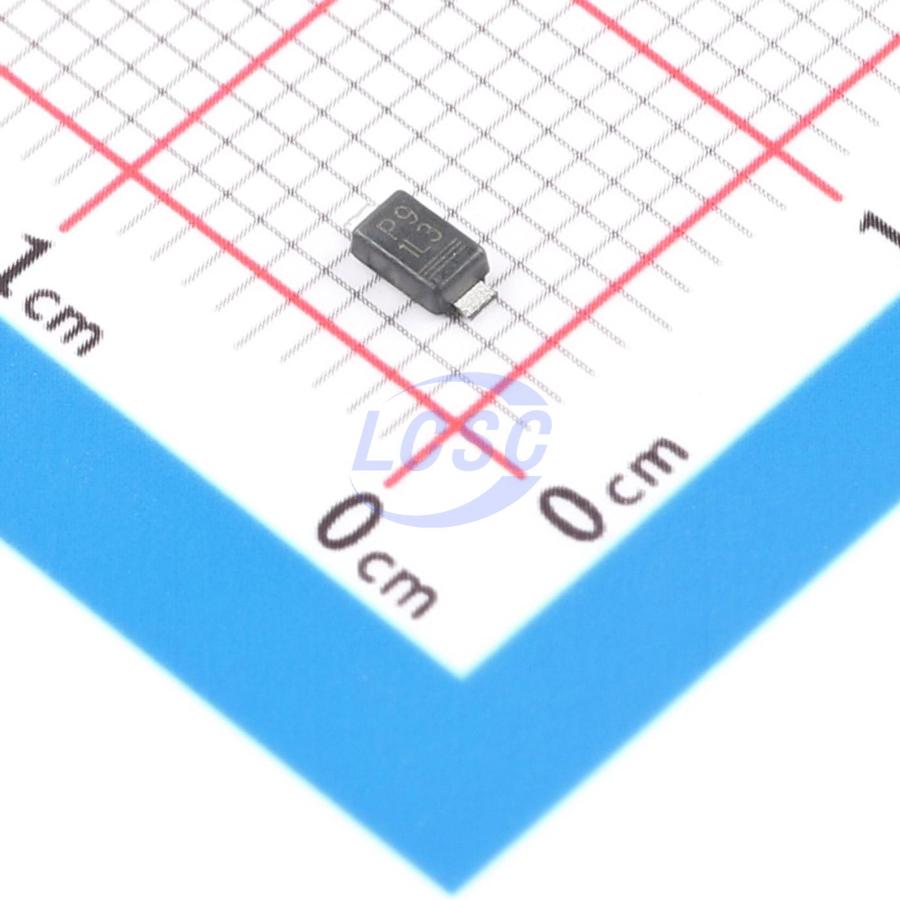

SS1FL3-M3/H
1 Independent 30V 480mV@1A 1A DO-219AB Single Diodes RoHS
DO-219ABROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- SS1FL3-M3/H
- Store part #
- C467992
- Package / case
- DO-219AB
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,910 in stock
#C467992
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.89 | ₹184.45 |
| 50+ | ₹30.92 | ₹1,546.00 |
| 150+ | ₹28.37 | ₹4,255.50 |
| 500+ | ₹25.18 | ₹12,590.00 |
| 3,000+ | ₹23.76 | ₹71,280.00 |
| 6,000+ | ₹22.91 | ₹1,37,460.00 |
5 × ₹36.89
₹184.45
excl. GST
₹217.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SS1FL3-M3/H
₹184.45 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 30V
- Voltage - Forward(Vf@If)
- 480mV@1A
- Reverse Leakage Current (Ir)
- 200uA@30V
- Non-Repetitive Peak Forward Surge Current
- 40A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.053 g
Overview
Applications
- For high-frequency inverters, freewheeling, DC/DC converters, and polarity protection in commercial, industrial, and automotive applications.
Key features
- Low-profile package
- Suitable for automatic placement
- Low forward voltage drop, low power dissipation
- Low leakage current
- MSL Level 1 per J-STD-020, LF maximum peak temperature 260°C
- Wave and reflow solderable
- AEC-Q101 qualified parts available
- Automotive ordering code: NHM3 base part number
- Compatible with SOD-123W package outline
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SS1FL3HM3/H#C5148533VISHAY · SMF (DO-219AB) | VISHAY | SMF (DO-219AB) | 440 | ₹16.37 · 440 in stock | View |
 | SS1FL4HM3/H#C3758129VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | 90 | ₹66.20 · 90 in stock | View |
 | SS1F4HM3/H#C3757602VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | 8 | ₹90.93 · 8 in stock | View |
 | SS1F4-M3/H#C3760148VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | 10 | ₹14.17 · 10 in stock | View |
 | SS1FN6-M3/H#C6684974VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | 340 | ₹33.02 · 340 in stock | View |
