VISHAYDatasheet (PDF)

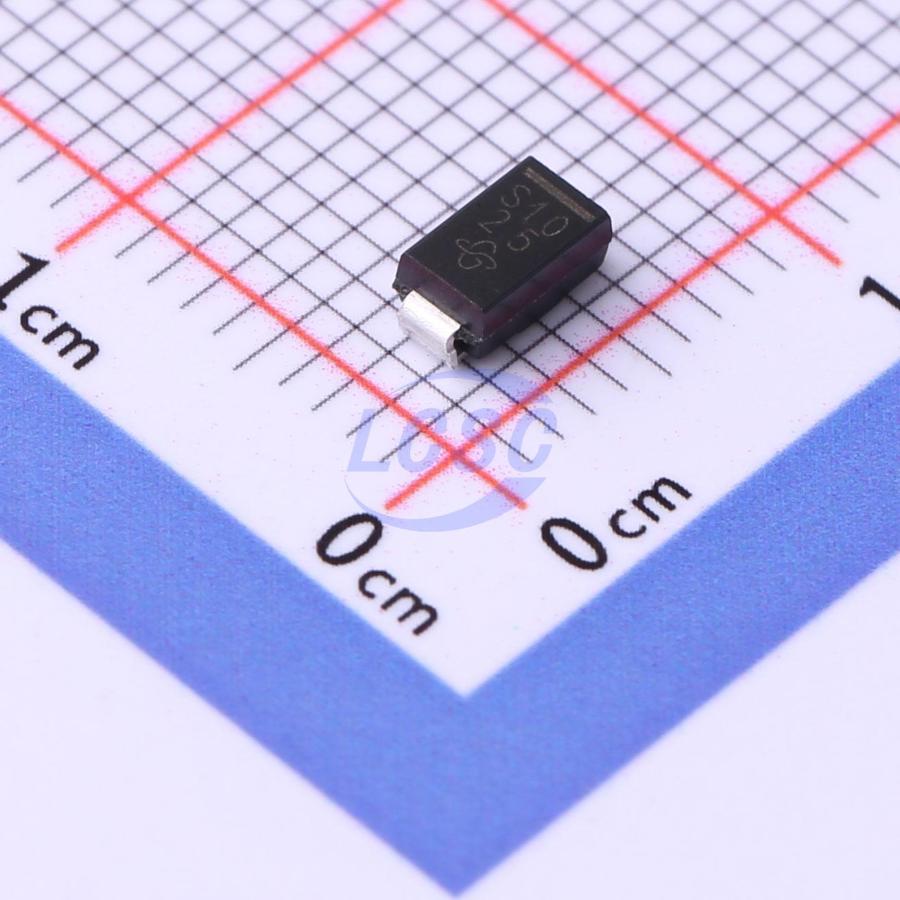

SS1H10HE3_B/H
Diode 1 Independent 100V 1A Surface Mount DO-214AC
DO-214ACROHS3 CompliantActive
DIODE SCHOTTKY 100V DO-214AC
- Manufacturer
- VISHAY
- Manufacturer part #
- SS1H10HE3_B/H
- Store part #
- C3151624
- Package / case
- DO-214AC
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
905 in stock
#C3151624
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.94 | ₹189.70 |
| 50+ | ₹29.41 | ₹1,470.50 |
| 150+ | ₹25.76 | ₹3,864.00 |
| 500+ | ₹21.19 | ₹10,595.00 |
| 1,800+ | ₹19.17 | ₹34,506.00 |
| 5,400+ | ₹17.95 | ₹96,930.00 |
5 × ₹37.94
₹189.70
excl. GST
₹223.85 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,800 per reel
SS1H10HE3_B/H
₹189.70 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Voltage - Forward(Vf@If)
- 860mV@2A
- Reverse Leakage Current (Ir)
- 1uA@100V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,800 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.11 g
Overview
Applications
- For use in low voltage high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.
Key features
- Low profile package
- Ideal for automated placement
- Guardring for overvoltage protection
- Low power losses, high efficiency
- Low forward voltage drop
- Low leakage current
- High surge capability
- Meets MSL level 1, per J - STD - 020, LF maximum peak of 260 ℃
- AEC - Q101 qualified available
- Automotive ordering code: base P/NHE3 or P/NHM3
- Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SS1H10-M3/61T#C3758724VISHAY · DO-214AC(SMA) | VISHAY | DO-214AC(SMA) | 5 | ₹45.64 · 5 in stock | View |
 | SS1H10HE3_B/I#C5240994VISHAY · DO-214AC | VISHAY | DO-214AC | 2,105 | ₹16.34 · 2,105 in stock | View |
 | STPS1150AY#C2970353ST · DO-214AC | ST | DO-214AC | 15 | ₹34.12 · 15 in stock | View |
 | STPS1150A#C315151ST · SMA | ST | SMA | 2,620 | ₹20.10 · 2,620 in stock | View |
 | SS1H10-E3/5AT#C467993VISHAY · SMA(DO-214AC) | VISHAY | SMA(DO-214AC) | 355 | ₹26.90 · 355 in stock | View |
