onsemiDatasheet (PDF)

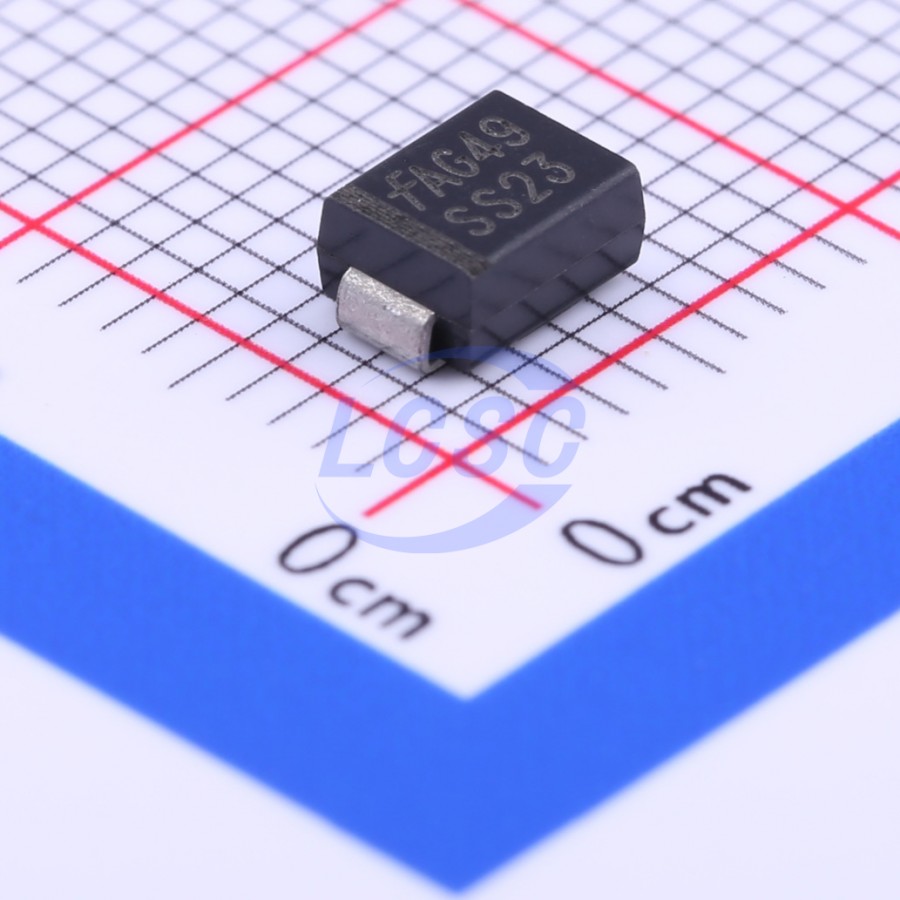

SS23
Diode 30V 2A Surface Mount SMB(DO-214AA)
SMB(DO-214AA)ROHS3 CompliantActive
DIODE SCHOTTKY 30V SMB(DO-214AA)
- Manufacturer
- onsemi
- Manufacturer part #
- SS23
- Store part #
- C232851
- Package / case
- SMB(DO-214AA)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,635 in stock
#C232851
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹59.22 | ₹296.10 |
| 50+ | ₹45.88 | ₹2,294.00 |
| 150+ | ₹40.17 | ₹6,025.50 |
| 500+ | ₹33.04 | ₹16,520.00 |
| 3,000+ | ₹29.86 | ₹89,580.00 |
| 6,000+ | ₹27.95 | ₹1,67,700.00 |
5 × ₹59.22
₹296.10
excl. GST
₹349.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SS23
₹296.10 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+125℃
- Voltage - DC Reverse (Vr) (Max)
- 30V
- Voltage - Forward(Vf@If)
- 500mV@2A
- Reverse Leakage Current (Ir)
- 400uA@30V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.213 g
Overview
The SS22 - S210 series includes high - efficiency, low power loss, general - propose Schottky rectifiers. The clip - bonded leg structure provides high thermal performance and low electrical resistance. These rectifiers are suited for free wheeling, secondary rectification, and reverse polarity protection applications.
Applications
- Low Voltage - High-Frequency Inverters
- Free Wheeling
- Polarity Protection
Key features
- Glass-Passivated Junctions
- High-Current Capability, Low VF
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | B230-13-F#C110482DIODES · SMB | DIODES | SMB | 2,130 | ₹29.99 · 2,130 in stock | View |
 | B240-13-F#C110483DIODES · SMB | DIODES | SMB | 17,145 | ₹10.69 · 17,145 in stock | View |
 | SS24B#C880747Slkor · SMB(DO-214AA) | Slkor | SMB(DO-214AA) | 3,040 | ₹4.72 · 3,040 in stock | View |
 | SS24#C266555BORN · SMB(DO-214AA) | BORN | SMB(DO-214AA) | 10,230 | ₹5.36 · 10,230 in stock | View |
 | SS23-E3/52T#C3759965VISHAY · DO-214AA(SMB) | VISHAY | DO-214AA(SMB) | 565 | ₹38.79 · 565 in stock | View |
