VISHAYDatasheet (PDF)

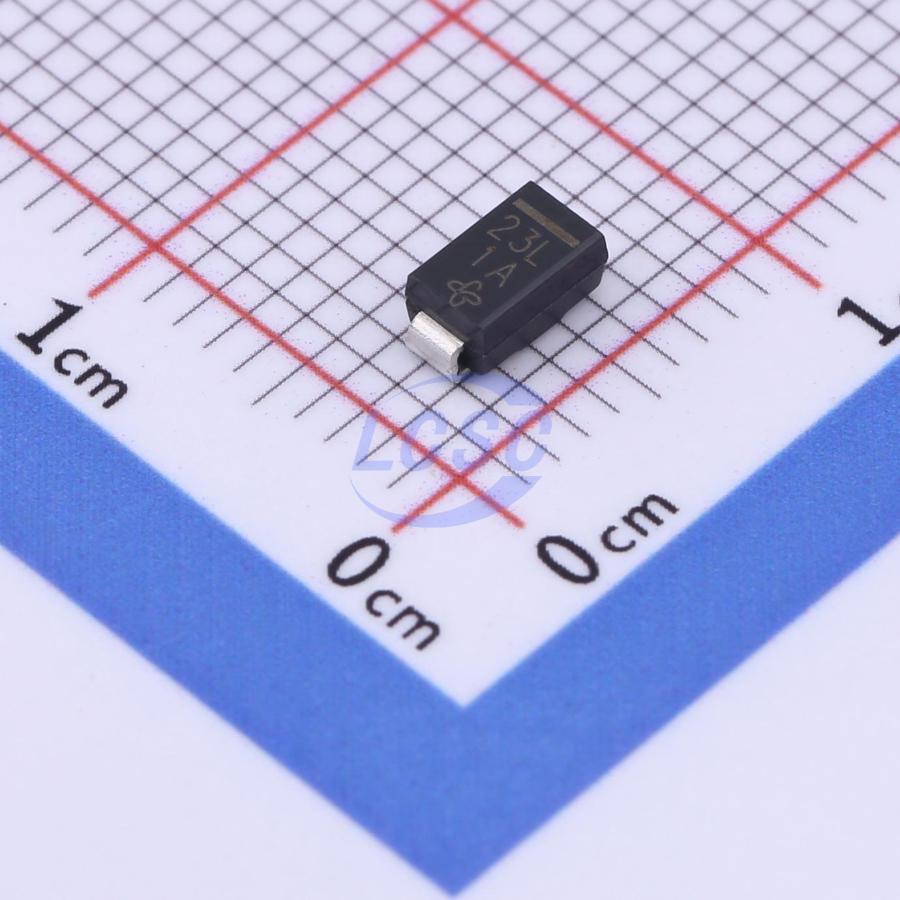

SSA23L-E3/61T
Diode 1 Independent 30V 2A Surface Mount DO-214AC
DO-214ACROHS3 CompliantActive
DIODE SCHOTTKY 30V DO-214AC
- Manufacturer
- VISHAY
- Manufacturer part #
- SSA23L-E3/61T
- Store part #
- C3009050
- Package / case
- DO-214AC
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
31 in stock
#C3009050
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹83.19 | ₹83.19 |
| 10+ | ₹70.73 | ₹707.30 |
| 30+ | ₹65.34 | ₹1,960.20 |
| 100+ | ₹58.90 | ₹5,890.00 |
| 500+ | ₹55.90 | ₹27,950.00 |
| 1,000+ | ₹54.18 | ₹54,180.00 |
1 × ₹83.19
₹83.19
excl. GST
₹98.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,800 per reel
SSA23L-E3/61T
₹83.19 for 1 + GST
Specifications
- Operating Junction Temperature Range
- -65℃~+150℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 30V
- Voltage - Forward(Vf@If)
- 430mV@2A
- Reverse Leakage Current (Ir)
- 500uA@30V
- Non-Repetitive Peak Forward Surge Current
- 60A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.12 g
