TOSHIBADatasheet (PDF)

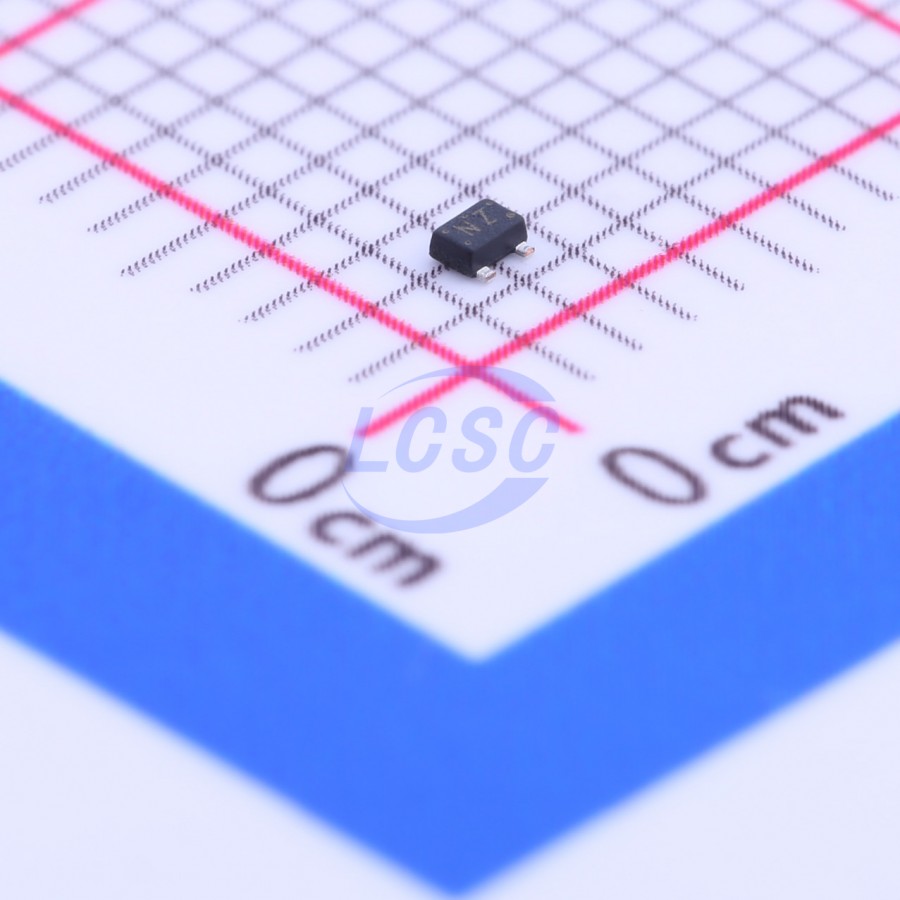

SSM3K56MFV,L3F
N-Channel 20V 800mA 500mW Surface Mount SOT-723
SOT-723ROHS3 CompliantActive
MOSFET N-CH 20V 800mA SOT-723
- Manufacturer
- TOSHIBA
- Manufacturer part #
- SSM3K56MFV,L3F
- Store part #
- C146288
- Package / case
- SOT-723
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,900 in stock
#C146288
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.46 | ₹72.30 |
| 50+ | ₹11.36 | ₹568.00 |
| 150+ | ₹9.82 | ₹1,473.00 |
| 500+ | ₹8.65 | ₹4,325.00 |
| 2,500+ | ₹7.71 | ₹19,275.00 |
| 5,000+ | ₹7.25 | ₹36,250.00 |
5 × ₹14.46
₹72.30
excl. GST
₹85.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 8,000 per reel
SSM3K56MFV,L3F
₹72.30 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 16pF
- Ciss-Input Capacitance
- 55pF
- Pd - Power Dissipation
- 500mW
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 800mA
- Reverse Transfer Capacitance (Crss)
- 8pF
- RDS(on)
- 840mΩ@1.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 1nC@4.5V
- Vgs
- ±8V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 8,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.013 g
Overview
Applications
- High - Speed Switching
Key features
- 1.5 - V gate drive voltage
- Low drain - source on - resistance: RDS(ON) = 235 mΩ (max) (ωVGS = 4.5 V)
- RDS(ON) = 300 mΩ (max) (ωVGS = 2.5 V)
- RDS(ON) = 480 mΩ (max) (@VGS = 1.8 V)
- RDS(ON) = 840 mΩ (max) (ωVGS = 1.5 V)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSSC3134#C700949HUASHUO · SOT-723 | HUASHUO | SOT-723 | 9,440 | ₹7.20 · 9,440 in stock | View |
 | WNM2030-3/TR#C239769WILLSEMI · SOT-723 | WILLSEMI | SOT-723 | 1,560 | ₹4.37 · 1,560 in stock | View |
 | TPM2077#C2827705TECH PUBLIC · SOT-723 | TECH PUBLIC | SOT-723 | 4,000 | ₹3.04 · 4,000 in stock | View |
 | RUM001L02-TP#C2827706TECH PUBLIC · SOT-723 | TECH PUBLIC | SOT-723 | 20,580 | ₹5.05 · 20,580 in stock | View |
 | WNM2030#C3011190TECH PUBLIC · SOT-723 | TECH PUBLIC | SOT-723 | 17,520 | ₹5.58 · 17,520 in stock | View |
