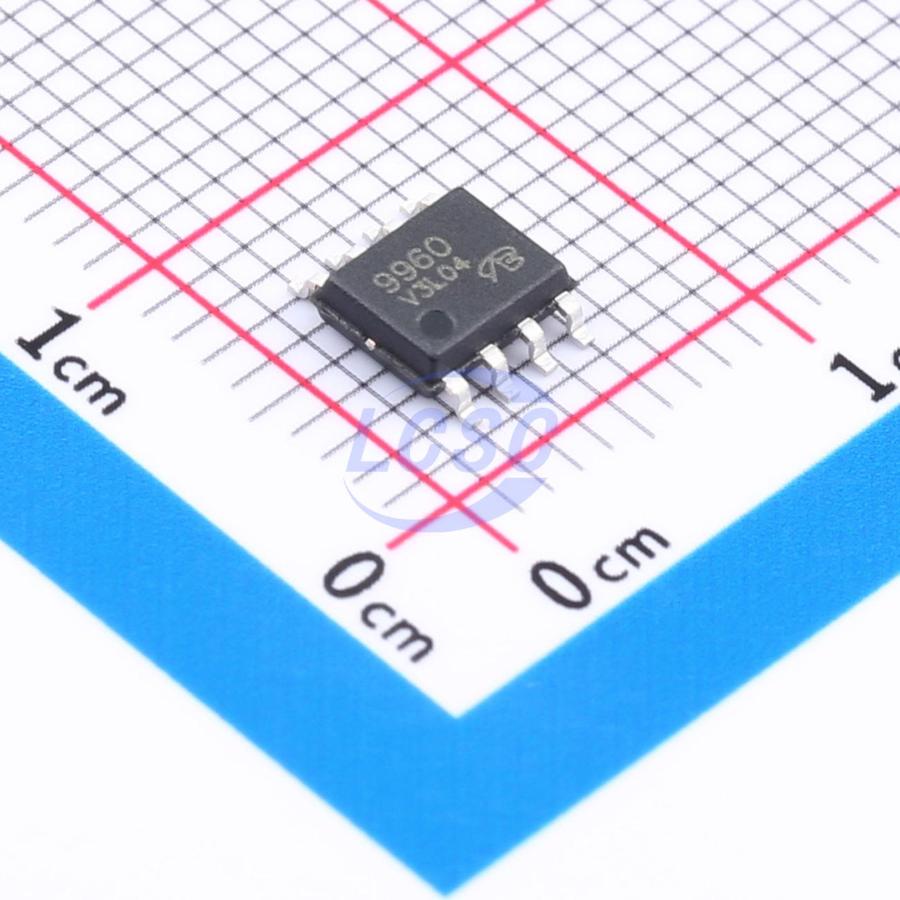

SSM9960M-VB
N-Channel Array 30V 8.5A Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH ARR 30V 8.5A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SSM9960M-VB
- Store part #
- C20417754
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
38 in stock
#C20417754
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹75.62 | ₹75.62 |
| 10+ | ₹60.08 | ₹600.80 |
| 30+ | ₹53.36 | ₹1,600.80 |
| 100+ | ₹44.96 | ₹4,496.00 |
| 500+ | ₹41.17 | ₹20,585.00 |
| 1,000+ | ₹39.08 | ₹39,080.00 |
1 × ₹75.62
₹75.62
excl. GST
₹89.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SSM9960M-VB
₹75.62 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 140pF
- Current - Continuous Drain(Id)
- 8.5A
- Ciss-Input Capacitance
- 660pF
- Reverse Transfer Capacitance (Crss)
- 86pF
- RDS(on)
- 16mΩ@10V;20mΩ@4.5V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 14.5nC@10V;7.1nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.12 g
Overview
Applications
- Notebook system power supply — low-current DC/DC
Key features
- Trench power MOSFET
- 100% Rg tested
- 100% UIS tested
- RoHS compliant (Directive 2002/95/EC)
