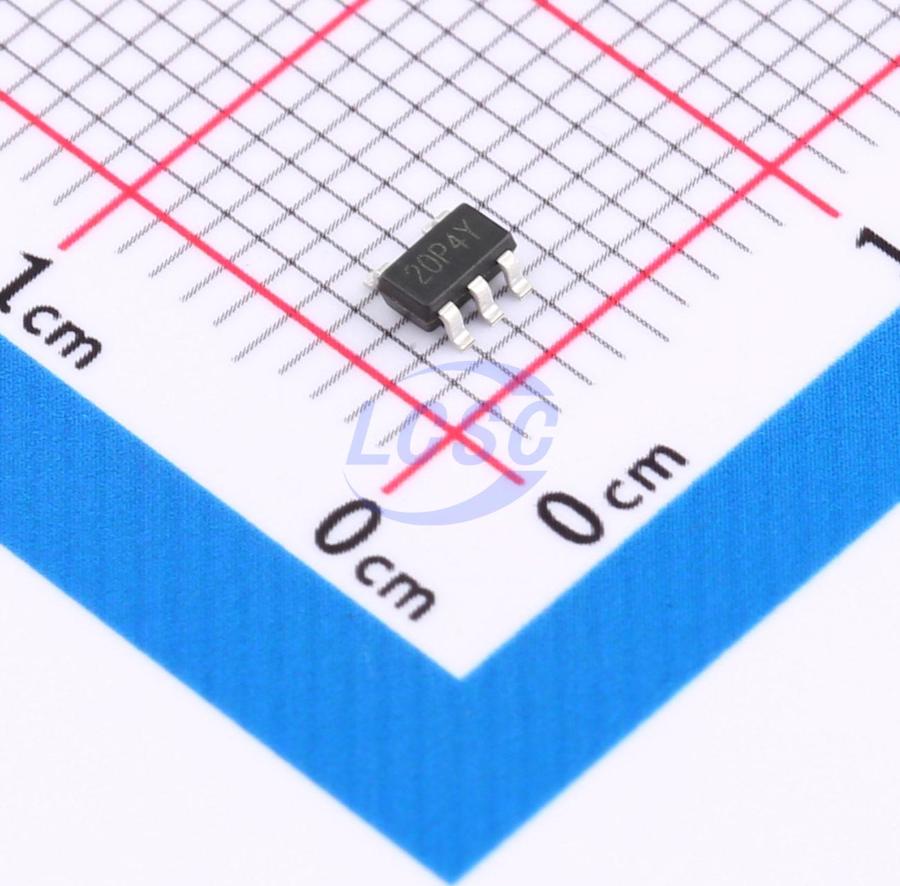

SSP9302
Step-down type 1.3MHz Adjustable 2A SOT-23-5 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-5ROHS CompliantActive
- Manufacturer
- Siproin
- Manufacturer part #
- SSP9302
- Store part #
- C49331833
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,190 in stock
#C49331833
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.31 | ₹53.10 |
| 100+ | ₹4.18 | ₹418.00 |
| 300+ | ₹3.61 | ₹1,083.00 |
| 3,000+ | ₹3.19 | ₹9,570.00 |
| 6,000+ | ₹2.86 | ₹17,160.00 |
| 9,000+ | ₹2.69 | ₹24,210.00 |
10 × ₹5.31
₹53.10
excl. GST
₹62.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SSP9302
₹53.10 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Function
- Step-down type
- Frequency - Switching
- 1.3MHz
- Number of Outputs
- 1
- Features
- Overcurrent Protection;Output discharge
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 2.7V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2A
- Quiescent Current
- 40uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.045 g
Overview
SSP9302 is a compact 5V buck converter capable of delivering 1A output current. The device employs a proprietary control loop to achieve fast transient load response, maintaining high conversion efficiency under both light and heavy loads. SSP9302 features multiple protection functions, including input overvoltage protection, output short-circuit protection, overcurrent protection, and overtemperature protection. It integrates a power tree generator, bandgap voltage reference module, UVLO module, error amplifier, protection circuit, gate driver module, current sensing module, and two power MOSFETs. SSP9302 is available in a SOT23-5 package.
Applications
- Set-top boxes
- Solid-state drives
- Wireless network devices
- Security surveillance systems
- Toys
Key features
- 2.7V to 5.5V input voltage range
- Input overvoltage protection threshold: 6V
- Quiescent current: 40µA in operation
- Output current up to 2A
- Efficiency up to 97%
- OCP, SCP, and OTP
- SOT23-5 package
