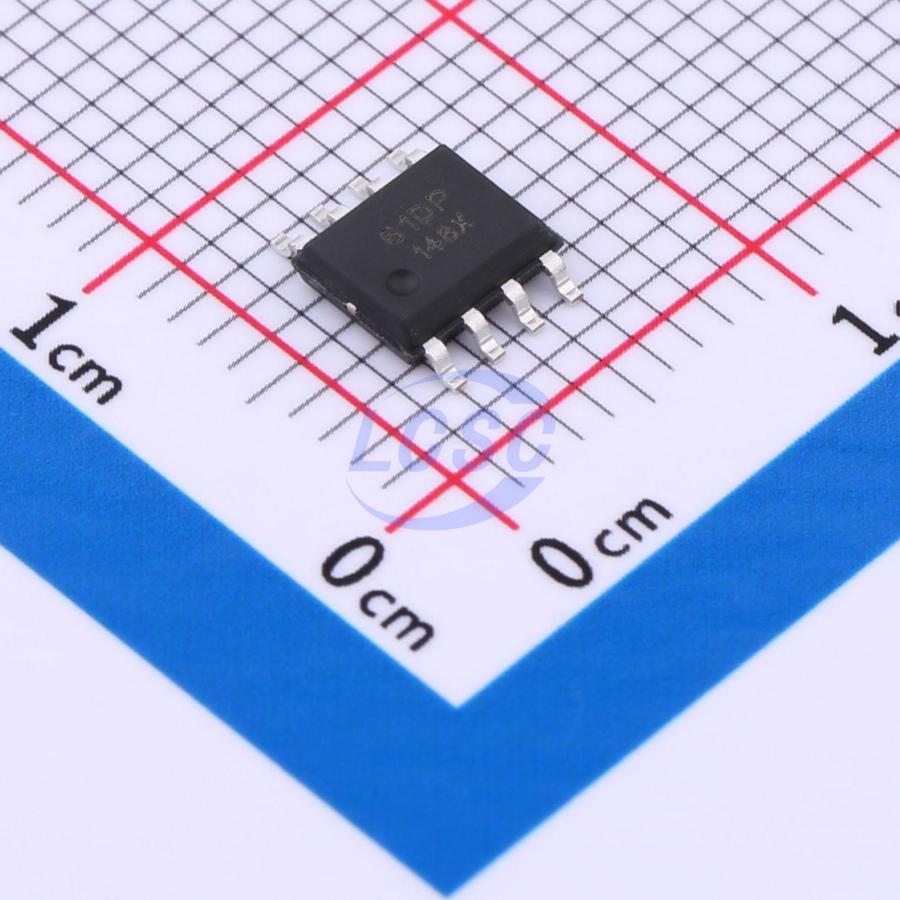

SSP9461
480kHz Step-down type Adjustable 810mV~57V 1.2A SOP-8-EP Voltage Regulators - DC DC Switching Regulators
SOP-8-EPRoHSActive
60V, 1.2A Buck Circuit
- Manufacturer
- Siproin
- Manufacturer part #
- SSP9461
- Store part #
- C2758008
- Package / case
- SOP-8-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18,980 in stock
#C2758008
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹41.29 | ₹206.45 |
| 50+ | ₹32.52 | ₹1,626.00 |
| 150+ | ₹28.78 | ₹4,317.00 |
| 500+ | ₹24.09 | ₹12,045.00 |
| 2,500+ | ₹19.69 | ₹49,225.00 |
| 4,000+ | ₹18.43 | ₹73,720.00 |
5 × ₹41.29
₹206.45
excl. GST
₹243.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SSP9461
₹206.45 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Frequency - Switching
- 480kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~60V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 810mV~57V
- Output Current
- 1.2A
- Quiescent Current
- 730uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.178 g
Overview
The SSP9461 is a monolithic, step- down, switch- mode converter with a built- in power MOSFET. Current- mode operation provides a fast transient response and eases loop stabilization. The wide input range(4.5V to 60V) provides high efficiency output of 1.2A current. Low shutdown mode quiescent current of 0.1μA is suitable for battery- powered applications. Fault state protection includes Cycle by Cycle OCP and thermal shutdown protection.
Applications
- High voltage power conversion
- Automotive systems
- Industrial power system
- Distributed power system
- Battery powered system
Key features
- Output 1.2A peak current
- Operation from 4.5V to 60V Input
- 1Ω internal power MOSFET
- 480KHz fixed switching frequency
- Stable with ceramic output capacitors
- Cycle by Cycle OCP
- Thermal shutdown protection
- >90% efficiency
- Output voltage: adjustable from +0.81V to 0.95VIN
- Low shutdown mode current: < 1μA
- ESOP-8 package with good heat dissipation
