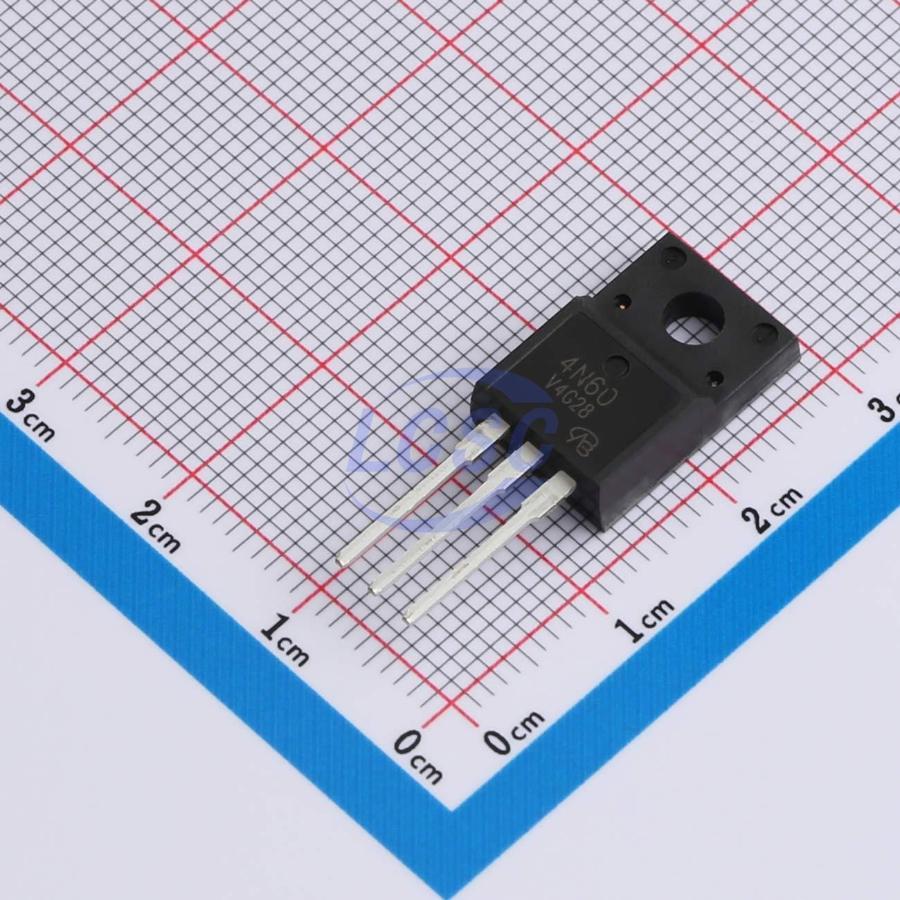

SSS4N60B-VB
N-Channel 650V 4A 30W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 650V 4A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SSS4N60B-VB
- Store part #
- C29779351
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C29779351
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹83.60 | ₹83.60 |
| 10+ | ₹68.80 | ₹688.00 |
| 50+ | ₹56.39 | ₹2,819.50 |
| 100+ | ₹49.20 | ₹4,920.00 |
| 500+ | ₹44.85 | ₹22,425.00 |
| 1,000+ | ₹42.46 | ₹42,460.00 |
1 × ₹83.60
₹83.60
excl. GST
₹98.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
SSS4N60B-VB
₹83.60 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 177pF
- Ciss-Input Capacitance
- 1.08nF
- Pd - Power Dissipation
- 30W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Current - Continuous Drain(Id)
- 4A
- Reverse Transfer Capacitance (Crss)
- 7pF
- RDS(on)
- 2.5Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 48nC
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.84 g
Overview
Key features
- Low Gate Charge Q₉ Results in Simple Drive Requirement
- Improved Gate, Avalanche and Dynamic dV/dt Ruggedness
- Fully Characterized Capacitance and Avalanche Voltage and Current
- Compliant to RoHS directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 5N60L-TF1-T-VB#C22389701VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 10 | ₹72.90 · 10 in stock | View |
 | NDF04N60ZH-VB#C29778885VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 3 | ₹72.90 · 3 in stock | View |
 | F5N60-VB#C29778963VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 10 | ₹72.90 · 10 in stock | View |
 | FDPF5N50UT-VB#C29778971VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 10 | ₹72.90 · 10 in stock | View |
 | FQPF4N50-VB#C29778981VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 10 | ₹72.90 · 10 in stock | View |
