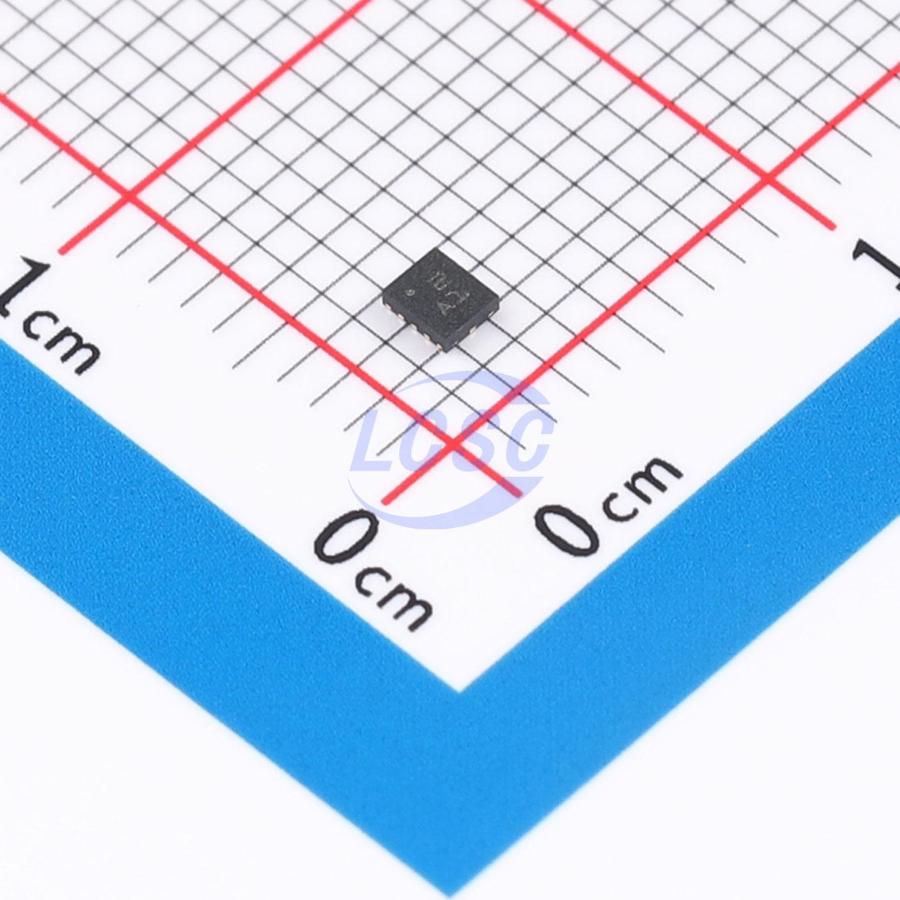

ST1PS02A1QTR

A nano - quiescent miniaturized synchronous step - down converter, which is able to provide up to 400 mA output current with an input voltage ranging from 1.8 V to 5.5 V. This converter is specifically designed for applications where high efficiency, PCB size and thickness are the key factors. The output voltage can be set using three digital control inputs, a VOUT from 1.0 V to 3.3 V can be dynamically selected. Thanks to the enhanced PCC (peak current control) the converter reaches very high efficiency conversion using just a 2.2 μH inductor and two small capacitors. The device embeds a controlled load switch to supply a subsystem with same voltage rail. Advanced design circuitry is implemented to minimize the quiescent current. The device is available in thin plastic package.

Applications

• Wearable applications
• Personal tracking monitors
• Smart watches, sport bands
• Energy harvesting, wireless sensors
• Wearable and fitness accessories
• Industrial sensors, portable low power devices
• Single cell Li - Ion battery applications
• Bluetooth low energy
• Zigbee

Key features

• 500 nA input quiescent current at VIN = 3.6 V (not switching)
• 92% typical efficiency at 10 mA load (VIN = 3.6V, VOUT = 2.5V)
• 100% duty cycle
• 1.8 V to 5.5 V input operating range
• Undervoltage lockout: 1.57 V (VIN falling, typ.)
• Up to 400 mA output current capability
• Low power control operation for the best efficiency
• Embedded soft - start circuit
• Tiny external components: L = 2.2 μH typ.
• Settable inductor current limitation
• Selectable output voltages: 1.0 V to 3.3 V
• Output voltage Power Good
• ±1.5% output voltage accuracy (VOUT, TA = 25 °C)
• Dynamic output voltage selection (D0, D1 and D2)
• Auxiliary load switch Vout2 (AUX control input)
• Available in TQFN12 package
