STDatasheet (PDF)

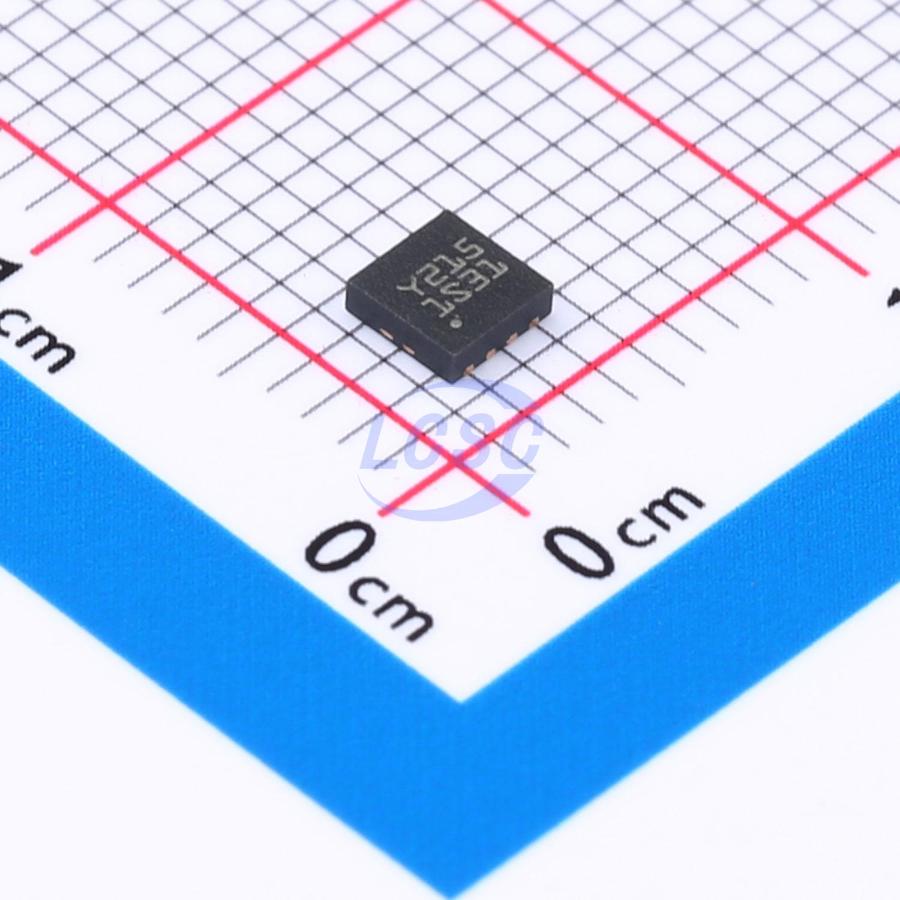

ST1S31PUR
1.9MHz Step-down type Adjustable 800mV~5.5V 3A QFN-8(3x3) Voltage Regulators - DC DC Switching Regulators RoHS
QFN-8(3x3)ROHS3 CompliantActive
3 A DC step-down switching regulator
- Manufacturer
- ST
- Manufacturer part #
- ST1S31PUR
- Store part #
- C2971521
- Package / case
- QFN-8(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
89 in stock
#C2971521
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹407.55 | ₹407.55 |
| 10+ | ₹352.35 | ₹3,523.50 |
| 30+ | ₹317.89 | ₹9,536.70 |
| 100+ | ₹271.64 | ₹27,164.00 |
| 500+ | ₹255.48 | ₹1,27,740.00 |
| 1,000+ | ₹248.72 | ₹2,48,720.00 |
1 × ₹407.55
₹407.55
excl. GST
₹480.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ST1S31PUR
₹407.55 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃@(TJ)
- Frequency - Switching
- 1.9MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection;Operating status indication;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 2.8V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 800mV~5.5V
- Output Current
- 3A
- Quiescent Current
- 630uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.24 g
Overview
The ST1S31 device is an internally compensated, 1.5 MHz fixed-frequency PWM synchronous step-down regulator. It operates from a 2.8 V to 5.5 V input, with an adjustable output voltage as low as 0.8 V. The ST1S31 integrates a 60 mΩ high-side switch and a 45 mΩ synchronous rectifier allowing high efficiency with very low output voltages. The peak current mode control with compensation delivers a very compact solution (3 mm x 3 mm) with a minimum component count.
Applications
- Audio/graphic
- Point of load for ST
Key features
- 2.8 V or 5.5 V
- 1.5 MHz switching frequency
- Output voltage adjustable
- 60 mΩ high-side switch and 45 mΩ synchronous rectifier
- Cycle-by-cycle current limit
- 3x3 - 8L package
