STDatasheet (PDF)

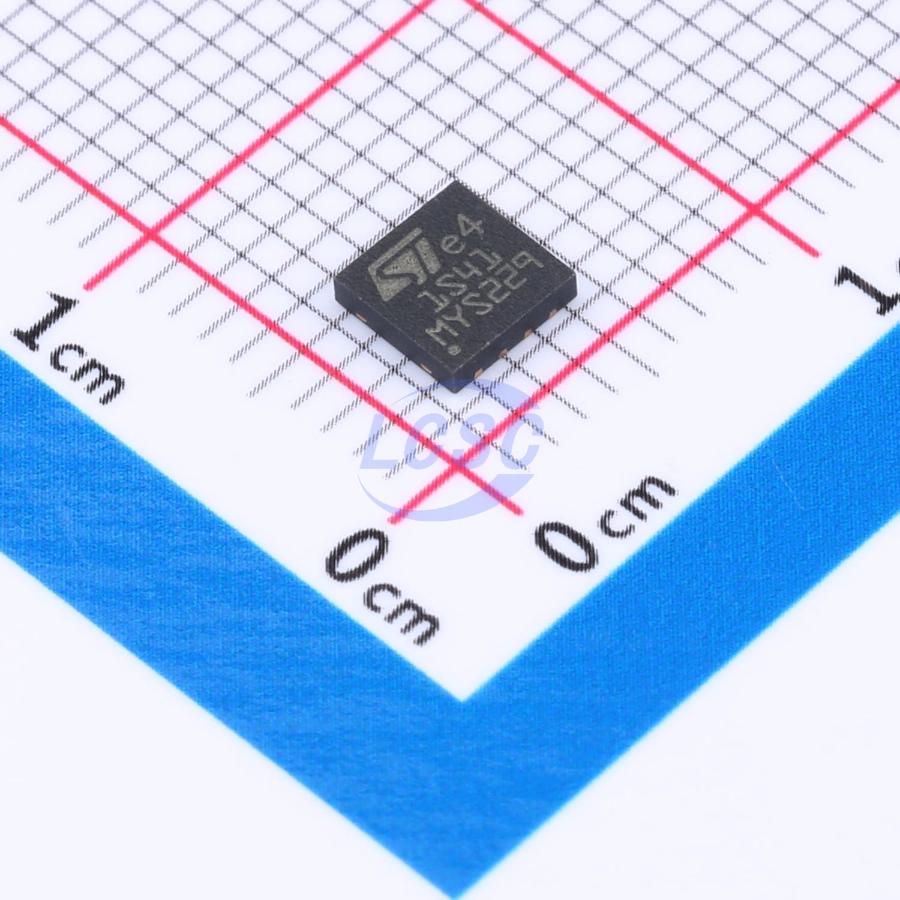

ST1S41PUR
850kHz Step-down type Adjustable 4A 800mV~18V VFQFPN-8L(4x4) Voltage Regulators - DC DC Switching Regulators RoHS
VFQFPN-8L(4x4)ROHS3 CompliantActive
4 A step-down switching regulator
- Manufacturer
- ST
- Manufacturer part #
- ST1S41PUR
- Store part #
- C2071349
- Package / case
- VFQFPN-8L(4x4)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,954 in stock
#C2071349
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹298.32 | ₹298.32 |
| 10+ | ₹248.63 | ₹2,486.30 |
| 30+ | ₹217.53 | ₹6,525.90 |
| 100+ | ₹185.56 | ₹18,556.00 |
| 500+ | ₹171.30 | ₹85,650.00 |
| 1,000+ | ₹165.04 | ₹1,65,040.00 |
1 × ₹298.32
₹298.32
excl. GST
₹352.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,500 per reel
ST1S41PUR
₹298.32 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃@(TJ)
- Frequency - Switching
- 850kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4V~18V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 4A
- Output Voltage
- 800mV~18V
- Quiescent Current
- 1.5mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.1 g
Overview
The ST1S41 is an internally compensated 850 kHz fixed-frequency PWM synchronous stepdown regulator. The ST1S41 operates from 4.0 V to 18 V input, while it regulates an output voltage as low as 0.8 V and up to VIN. The ST1S41 integrates 95 mΩ high-side switch and 69 mΩ synchronous rectifier allowing very high efficiency with very low output voltages. The peak current mode control with internal compensation delivers a very compact solution with a minimum component count. The ST1S41 is available in VFQFPN 4 mm x 4 mm 8-lead package and HSOP-8.
Applications
- μP/ASIC/DSP/FPGA core and I/O supplies
- Point of load for: STB, TVs, DVD
- Optical storage, hard disk drive, printers, audio/graphic cards
Key features
- 4 A output current
- 4.0 V to 18 V input voltage
- Output voltage adjustable from 0.8 V
- 850 kHz switching frequency
- Internal soft-start
- Integrated 95 mΩ and 69 mΩ power MOSFETs
- All ceramic capacitor
- Enable Cycle-by-cycle current limiting
- Current foldback short-circuit protection
- VFQFPN 4x4-8L and HSOP-8 packages
