STDatasheet (PDF)

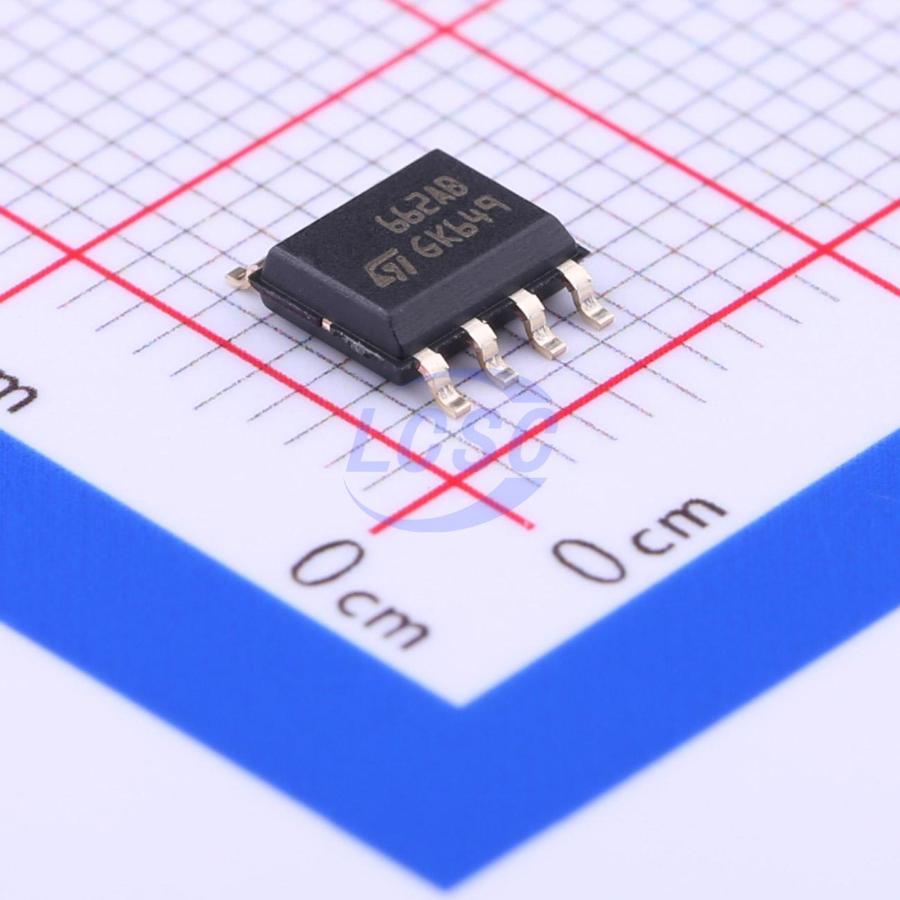

ST662ABD-TR
400kHz boost converter 30mA 11.4V~12.6V SO-8 Voltage Regulators - DC DC Switching Regulators RoHS
SO-8ROHS3 CompliantActive
DC-DC converter from 5 V to 12 V for Flash memory programming supply
- Manufacturer
- ST
- Manufacturer part #
- ST662ABD-TR
- Store part #
- C97784
- Package / case
- SO-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7 in stock
#C97784
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,526.20 | ₹1,526.20 |
| 10+ | ₹1,451.08 | ₹14,510.80 |
| 30+ | ₹1,320.67 | ₹39,620.10 |
| 100+ | ₹1,206.80 | ₹1,20,680.00 |
1 × ₹1,526.20
₹1,526.20
excl. GST
₹1,800.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ST662ABD-TR
₹1,526.20 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 400kHz
- Function
- boost converter
- Features
- Low-power standby;Load disconnect
- Operating Voltage
- 4.5V~5.5V
- Output Current
- 30mA
- Output Voltage
- 11.4V~12.6V
- Quiescent Current
- 100uA
- Energy Efficiency
- 72%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.235 g
Overview
The ST662A is a regulated charge pump DC-DC converter. It provides 12 V ±5 % output voltage to program byte-wide Flash memory, and can supply 30 mA output current from input as low as 4.75 V. A logic controlled shut down pin that interfaces directly with microprocessor reduces the supply current to only 1 μA. The ST662AB is available as Automotive Grade in SO-8 package. The ST662 is an IC developed to provide a 12 V regulated output 30 mA from voltage input as low as 4.75 V without any inductors. It is useful for a wide range of applications and its performances make it ideal for Flash memory programming supply.
Key features
- Output voltage: 12 V ±5 %
- Supply voltage range: 4.5 V to 5.5 V
- Guaranteed output current up to 30 mA
- Very low quiescent current: 100 μA
- Logic controlled electronic shutdown: 1 μA
- Just capacitors needed (no inductor)
