STDatasheet (PDF)

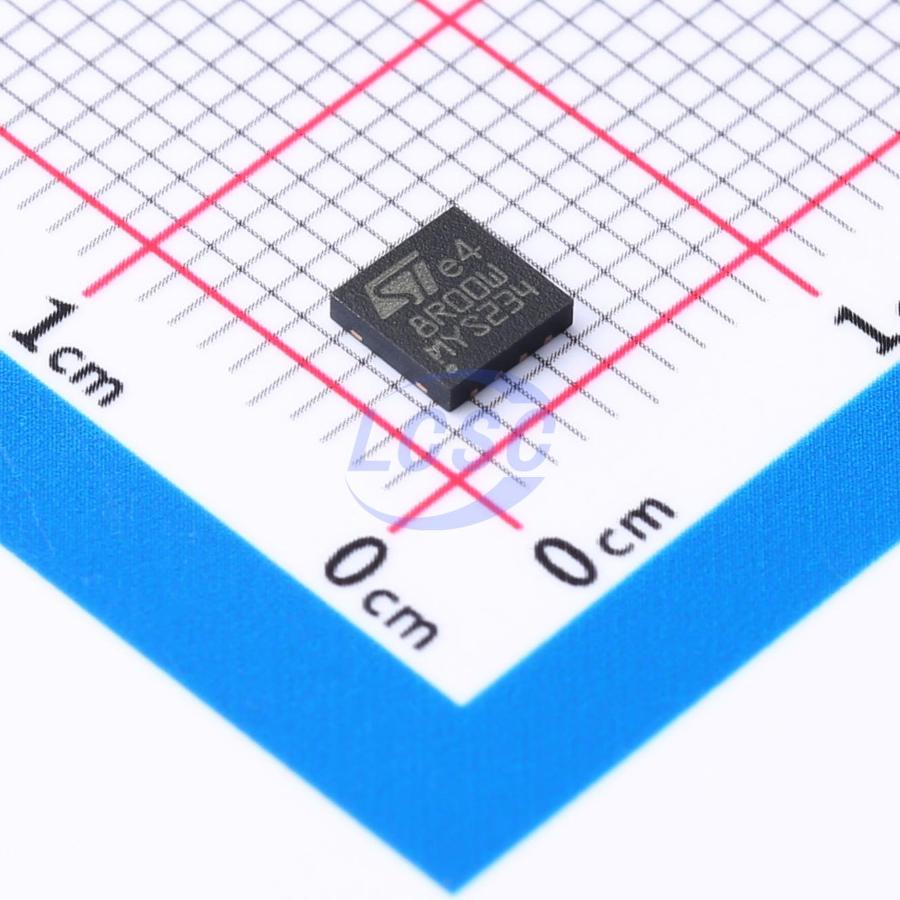

ST8R00WPUR
800kHz~1.4MHz Boost Adjustable 6V~12V 1A DFN-8-EP(4x4) Voltage Regulators - DC DC Switching Regulators RoHS
DFN-8-EP(4x4)ROHS3 CompliantActive
1A Synchronous Step-Up DC-DC Converter
- Manufacturer
- ST
- Manufacturer part #
- ST8R00WPUR
- Store part #
- C2071286
- Package / case
- DFN-8-EP(4x4)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8 in stock
#C2071286
Stock & price checked 46 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹405.06 | ₹405.06 |
| 10+ | ₹343.00 | ₹3,430.00 |
| 30+ | ₹304.24 | ₹9,127.20 |
| 100+ | ₹252.19 | ₹25,219.00 |
| 500+ | ₹234.12 | ₹1,17,060.00 |
| 1,000+ | ₹226.50 | ₹2,26,500.00 |
1 × ₹405.06
₹405.06
excl. GST
₹477.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,500 per reel
ST8R00WPUR
₹405.06 for 1 + GST
Specifications
- Operating Temperature
- -25℃~+125℃
- Frequency - Switching
- 800kHz~1.4MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 4V~6V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 6V~12V
- Output Current
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.27 g
Overview
The ST8R00 is a synchronous PWM step-up DCDC converter. The device is able to provide an output voltage in the range of 6 to 12 V with an input voltage from 4 to 6 V. The high switching frequency (1.7 MHz) permits the use of tiny surface-mount components. In addition to the resistor divider to set the output voltage value, only an inductor and two capacitors are required. Moreover, a low output ripple is guaranteed by the current mode PWM topology and by the use of low ESR SMD ceramic capacitors. The device is available in a very small DFN8 (4×4 mm) package.
Key features
- Output voltage adjustable from 6 V to 12 V
- Output voltage accuracy: ±2%
- Output current up to 1 A
- Low ripple voltage: 5 mV (typ.)
- Synchronous rectification
- High 90% efficiency: V₀ = 9 V (typ.)
- Few external components
- Thermal shutdown protection
- Very small DFN8 (4×4 mm) package
