STDatasheet (PDF)

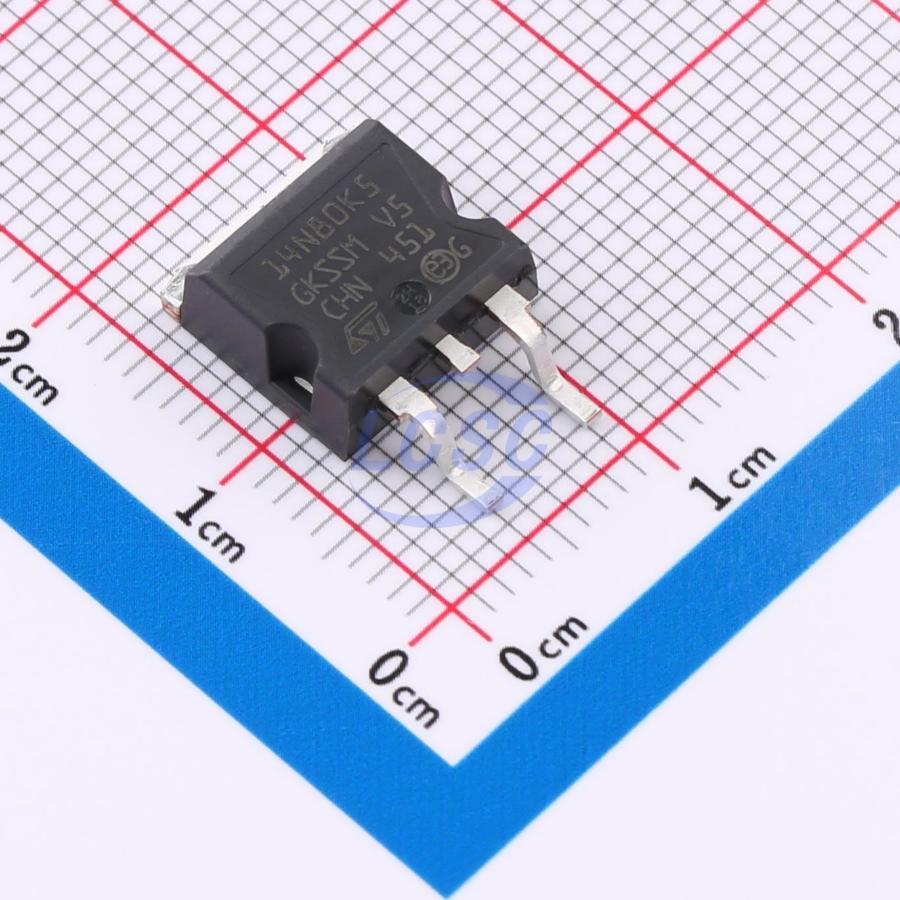

STB14N80K5
800V 12A 130W Surface Mount D2PAK
D2PAKROHS3 CompliantActive
MOSFET 800V 12A D2PAK
- Manufacturer
- ST
- Manufacturer part #
- STB14N80K5
- Store part #
- C5268637
- Package / case
- D2PAK
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
47 in stock
#C5268637
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹694.64 | ₹694.64 |
| 10+ | ₹665.47 | ₹6,654.70 |
| 30+ | ₹647.85 | ₹19,435.50 |
| 100+ | ₹632.82 | ₹63,282.00 |
1 × ₹694.64
₹694.64
excl. GST
₹819.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
STB14N80K5
₹694.64 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 800V
- Current - Continuous Drain(Id)
- 12A
- Ciss-Input Capacitance
- 620pF
- Pd - Power Dissipation
- 130W
- Reverse Transfer Capacitance (Crss)
- 0.8pF
- RDS(on)
- 445mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 22nC@640V
- Gate Threshold Voltage (Vgs(th))
- 3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.96 g
Overview
This very high voltage N-channel Power MOSFET is designed using MDmesh K5 technology based on an innovative proprietary vertical structure. The result is a dramatic reduction in on-resistance and ultra-low gate charge for applications requiring superior power density and high efficiency.
Applications
- Switching applications
Key features
- Industry’s lowest RDS(on) X area
- Industry’s best figure of merit (FoM)
- Ultra-low gate charge
- 100% avalanche tested
- Zener-protected
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STB15N80K5#C500932ST · D2PAK | ST | D2PAK | 572 | ₹430.65 · 572 in stock | View |
 | IPB90R340C3#C536689Infineon · TO-263 | Infineon | TO-263 | 920 | ₹454.58 · 920 in stock | View |
 | STB20N95K5#C500935ST · D2PAK | ST | D2PAK | 895 | ₹1,269.91 · 895 in stock | View |
 | STB21N90K5#C455170ST · D2PAK | ST | D2PAK | 157 | ₹606.57 · 157 in stock | View |
 | IPB95R310PFD7ATMA1#C19725715Infineon · D2PAK | Infineon | D2PAK | 1 | ₹551.11 · 1 in stock | View |
