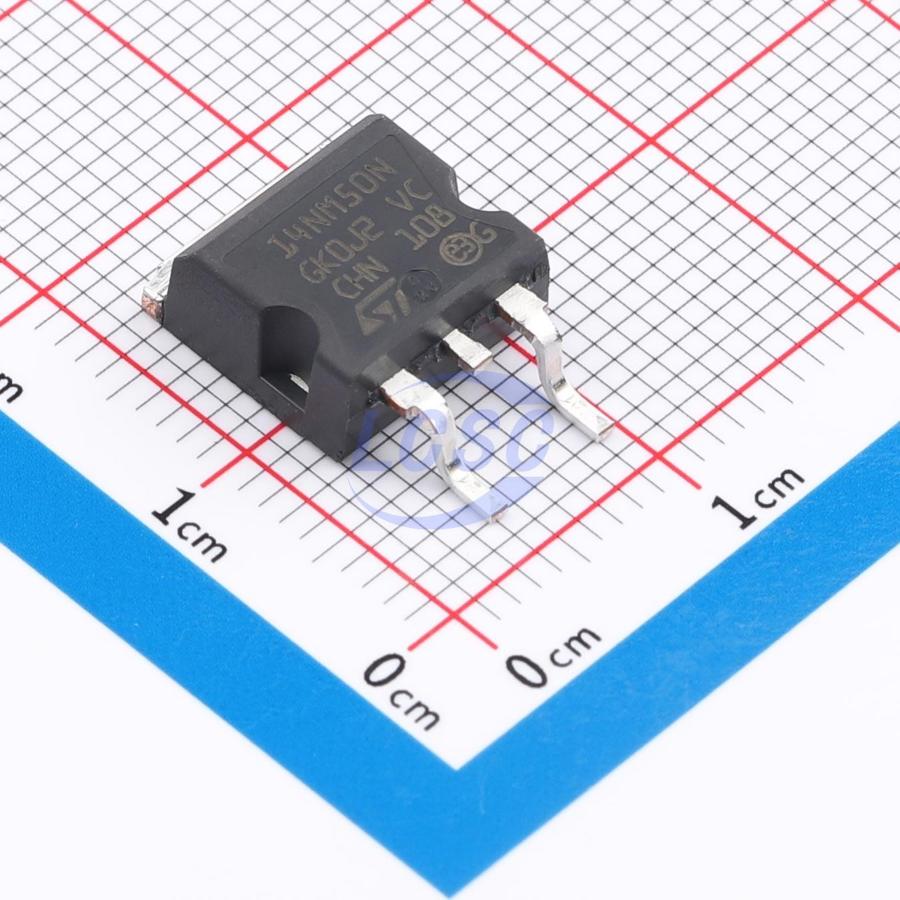

STB14NM50N
N-Channel 500V 12A 6W Surface Mount D2PAK
D2PAKROHS3 CompliantActive
MOSFET N-CH 500V 12A D2PAK
- Manufacturer
- ST
- Manufacturer part #
- STB14NM50N
- Store part #
- C2971433
- Package / case
- D2PAK
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C2971433
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,060.50 | ₹1,060.50 |
| 10+ | ₹1,044.39 | ₹10,443.90 |
| 30+ | ₹1,033.65 | ₹31,009.50 |
| 100+ | ₹1,022.89 | ₹1,02,289.00 |
1 × ₹1,060.50
₹1,060.50
excl. GST
₹1,251.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
STB14NM50N
₹1,060.50 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 500V
- Output Capacitance(Coss)
- 60pF
- Current - Continuous Drain(Id)
- 12A
- Ciss-Input Capacitance
- 816pF
- Pd - Power Dissipation
- 6W
- Reverse Transfer Capacitance (Crss)
- 3pF
- RDS(on)
- 320mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 27nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.955 g
Overview
This device is an N-channel Power MOSFET developed using the second generation of MDmesh™ technology. This revolutionary Power MOSFET associates a vertical structure to the strip layout to yield one of the lowest on-resistance and gate charge. It is therefore suitable for the most demanding high efficiency converters.
Applications
- Switching applications
Key features
- 100% avalanche tested
- Low input capacitance and gate charge
- Low gate input resistance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STB18N60M2#C2688653ST · D2PAK | ST | D2PAK | 50 | ₹751.00 · 50 in stock | View |
 | STB23N80K5#C472539ST · D2PAK | ST | D2PAK | 10 | ₹769.01 · 10 in stock | View |
 | IPB60R280C6-VB#C29779482VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 4 | ₹290.93 · 4 in stock | View |
 | SIHB17N80AE-GE3#C3288194VISHAY · D2PAK(TO-263) | VISHAY | D2PAK(TO-263) | 10 | ₹389.69 · 10 in stock | View |
 | STB30N65M2AG#C3277637ST · D2PAK(TO-263) | ST | D2PAK(TO-263) | 1 | ₹382.36 · 1 in stock | View |
