MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
STDatasheet (PDF)

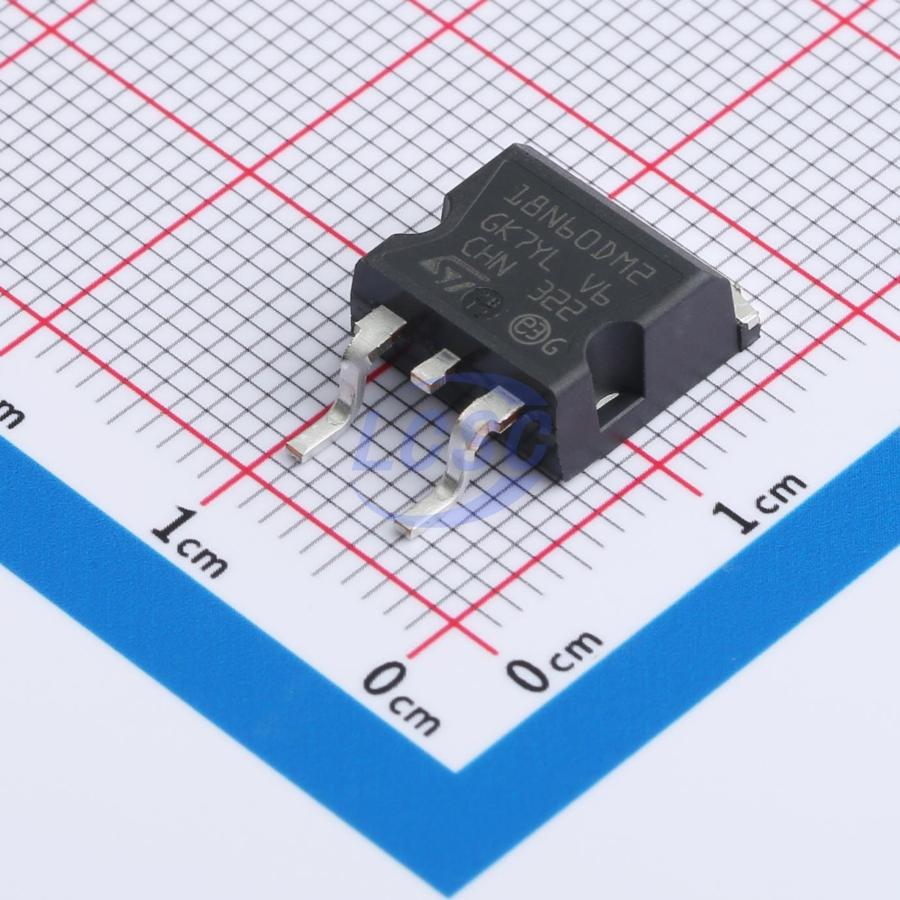

STB18N60DM2
N-Channel 600V 12A 110W Surface Mount D2PAK
D2PAKROHS3 CompliantActive
MOSFET N-CH 600V 12A D2PAK
- Manufacturer
- ST
- Manufacturer part #
- STB18N60DM2
- Store part #
- C2965480
- Package / case
- D2PAK
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C2965480
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹711.65 | ₹711.65 |
| 10+ | ₹603.02 | ₹6,030.20 |
| 30+ | ₹538.62 | ₹16,158.60 |
| 100+ | ₹473.37 | ₹47,337.00 |
| 500+ | ₹443.10 | ₹2,21,550.00 |
| 1,000+ | ₹429.56 | ₹4,29,560.00 |
1 × ₹711.65
₹711.65
excl. GST
₹839.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
STB18N60DM2
₹711.65 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 40pF
- Ciss-Input Capacitance
- 800pF
- Pd - Power Dissipation
- 110W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Current - Continuous Drain(Id)
- 12A
- Reverse Transfer Capacitance (Crss)
- 1.33pF
- RDS(on)
- 295mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 20nC@10V
- Vgs
- ±25V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.74 g
Overview
This high-voltage N-channel power MOSFET is part of the MDmesh DM2 fast-recovery diode series. It features ultralow reverse recovery charge (Qrr) and reverse recovery time (trr), combined with low on-resistance RDS(ON), making it suitable for demanding high-efficiency converters and ideal for bridge topologies and zero-voltage switching (ZVS) phase-shift converters.
Applications
- Switching applications
Key features
- Fast recovery body diode
- Ultra-low gate charge and input capacitance
- Low on-resistance
- 100% avalanche tested
- Extremely high dv/dt robustness
- Zener protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STB18N60M2#C2688653ST · D2PAK | ST | D2PAK | 50 | ₹751.00 · 50 in stock | View |
 | STB18N65M5#C2971036ST · D2PAK | ST | D2PAK | 10 | ₹940.15 · 10 in stock | View |
 | IXFA12N65X2#C3291128Littelfuse/IXYS · TO-263 | Littelfuse/IXYS | TO-263 | 10 | ₹1,431.76 · 10 in stock | View |
 | STB21N65M5#C5268754ST · D2PAK | ST | D2PAK | 6 | ₹1,987.11 · 6 in stock | View |
 | STB16N90K5#C2970503ST · D2PAK | ST | D2PAK | 19 | ₹1,146.49 · 19 in stock | View |
