STDatasheet (PDF)

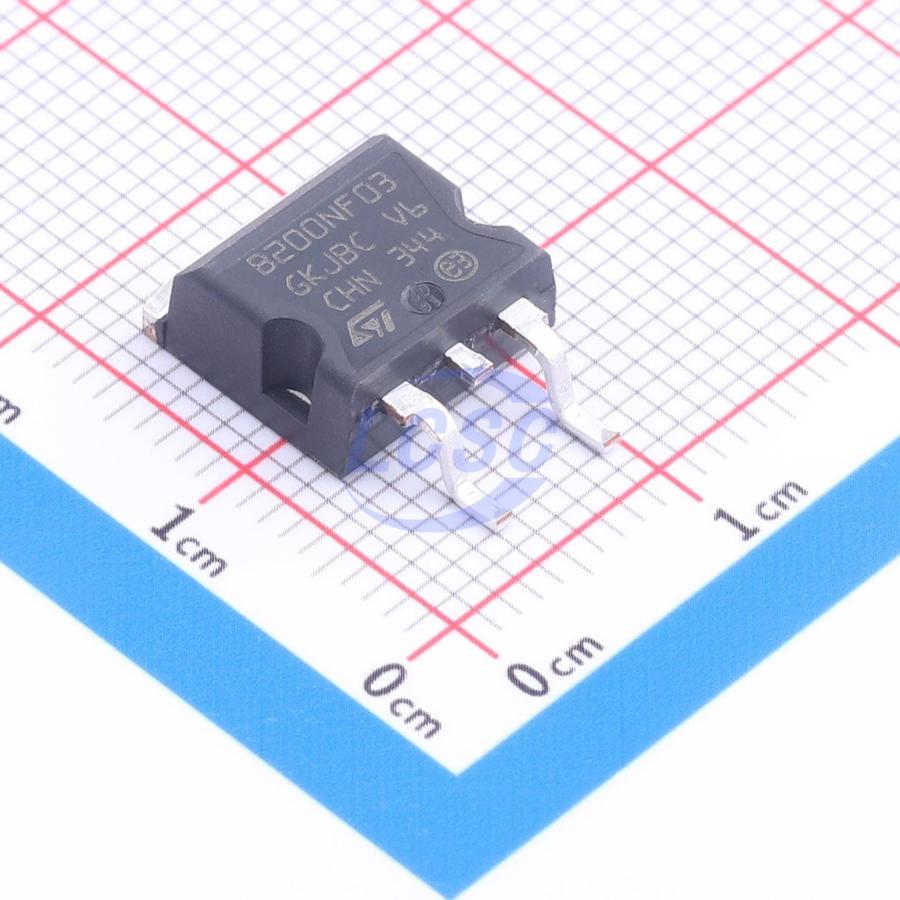

STB200NF03T4
30V 120A 300W 3.6mΩ 1 N-channel D2PAK Single FETs, MOSFETs
D2PAKRoHSActive
- Manufacturer
- ST
- Manufacturer part #
- STB200NF03T4
- Store part #
- C5268662
- Package / case
- D2PAK
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C5268662
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹723.48 | ₹723.48 |
| 10+ | ₹710.81 | ₹7,108.10 |
| 30+ | ₹702.21 | ₹21,066.30 |
| 100+ | ₹693.82 | ₹69,382.00 |
1 × ₹723.48
₹723.48
excl. GST
₹853.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
STB200NF03T4
₹723.48 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 120A
- Ciss-Input Capacitance
- 4.95nF
- Pd - Power Dissipation
- 300W
- RDS(on)
- 3.6mΩ
- Number
- 1 N-channel
- Gate Charge(Qg)
- 140nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.711 g
Overview
This power MOSFET represents the latest achievement of STMicroelectronics' unique "Single Feature Size™" strip process. Transistors fabricated with this process feature extremely high packing density, enabling low on-resistance and excellent avalanche characteristics, while requiring fewer alignment steps, resulting in outstanding manufacturing repeatability.
Applications
- Switching applications
Key features
- Current limited by package
- Standard threshold drive
- 100% avalanche tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RS100N190S#C22364787REASUNOS · TO-263 | REASUNOS | TO-263 | 11 | ₹75.25 · 11 in stock | View |
 | SE100150G#C476674SINO-IC · TO-263 | SINO-IC | TO-263 | 1,691 | ₹166.54 · 1,691 in stock | View |
| PSMN2R8-80BS,118#C553267Nexperia · D2PAK | Nexperia | D2PAK | 24 | ₹709.86 · 24 in stock | View | |
 | HY4008NA2B#C2886432HUAYI · TO-263-2L | HUAYI | TO-263-2L | 2 | ₹165.27 · 2 in stock | View |
 | DOB14N10#C41430582DOINGTER · TO-263 | DOINGTER | TO-263 | 528 | ₹89.12 · 528 in stock | View |
