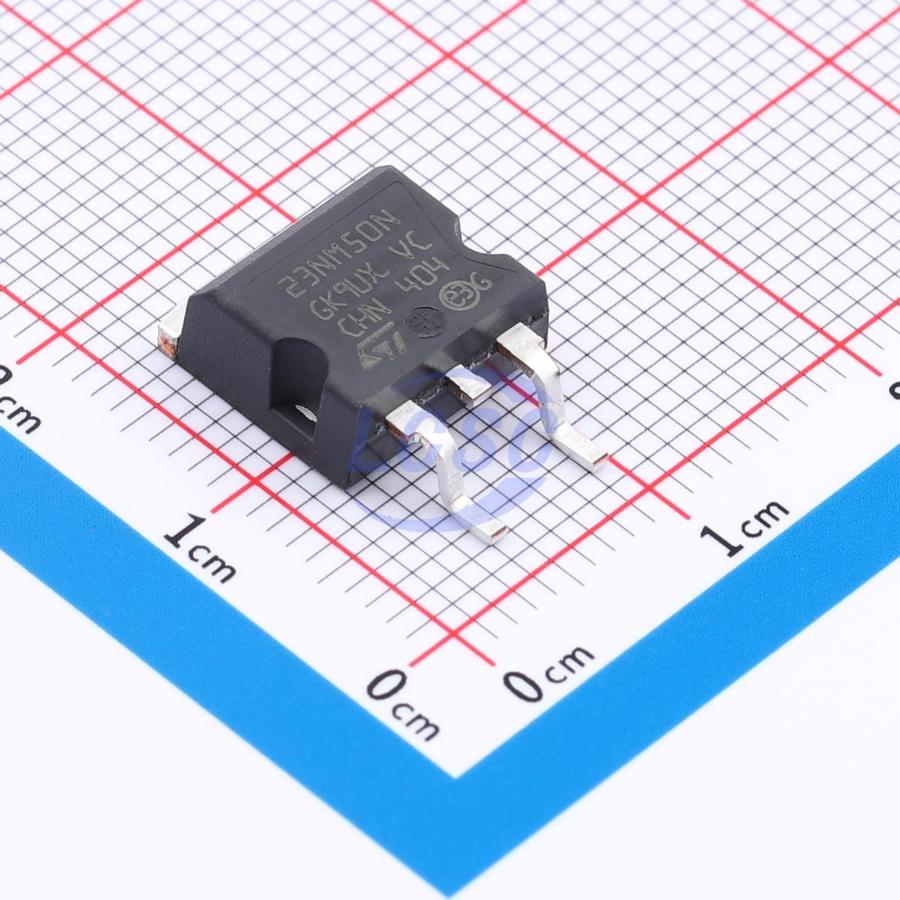

STB23NM50N
N-Channel 500V 17A 125W Surface Mount TO-263-3(D2PAK)
TO-263-3(D2PAK)ROHS3 CompliantActive
MOSFET N-CH 500V 17A TO-263-3(D2PAK)
- Manufacturer
- ST
- Manufacturer part #
- STB23NM50N
- Store part #
- C2688650
- Package / case
- TO-263-3(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C2688650
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹545.42 | ₹545.42 |
| 10+ | ₹533.58 | ₹5,335.80 |
| 30+ | ₹525.61 | ₹15,768.30 |
| 100+ | ₹517.64 | ₹51,764.00 |
1 × ₹545.42
₹545.42
excl. GST
₹643.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
STB23NM50N
₹545.42 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 84pF
- Ciss-Input Capacitance
- 1.33nF
- Pd - Power Dissipation
- 125W
- Drain to Source Voltage
- 500V
- Current - Continuous Drain(Id)
- 17A
- Reverse Transfer Capacitance (Crss)
- 4.8pF
- RDS(on)
- 190mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 45nC@10V
- Vgs
- ±25V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.05 g
Overview
These devices are made using the second generation of MDmesh™ technology. This revolutionary Power MOSFET associates a new vertical structure to the company’s strip layout to yield one of the lowest on-resistance and gate charge. It is therefore suitable for the most demanding high efficiency converters.
Applications
- Switching applications
Key features
- 100% avalanche tested
- Low input capacitance and gate charge
- Low gate input resistance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPB60R099P7ATMA1#C3279155Infineon · TO-263-3 | Infineon | TO-263-3 | 67 | ₹430.11 · 67 in stock | View |
 | STB33N65M2#C2688644ST · TO-263-3(D2PAK) | ST | TO-263-3(D2PAK) | 4 | ₹1,060.50 · 4 in stock | View |
| STB26NM60N#C2688646ST · TO-263-3(D2PAK) | ST | TO-263-3(D2PAK) | 6 | ₹3,073.83 · 6 in stock | View | |
 | IPB60R080P7ATMA1#C7210840Infineon · TO-263-3 | Infineon | TO-263-3 | 48 | ₹606.05 · 48 in stock | View |
 | IPB65R099CFD7AATMA1#C3279163Infineon · TO-263-3 | Infineon | TO-263-3 | 5 | ₹755.72 · 5 in stock | View |
