STDatasheet (PDF)

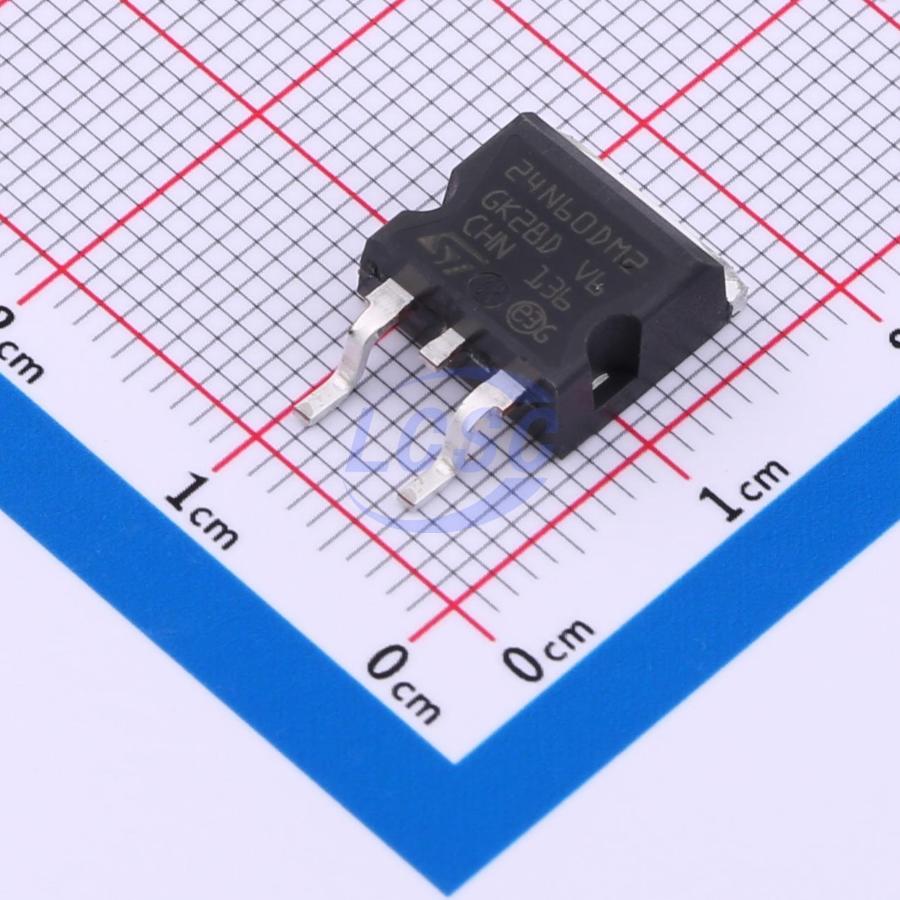

STB24N60DM2
N-Channel 600V 18A 150W Surface Mount D2PAK
D2PAKROHS3 CompliantActive
MOSFET N-CH 600V 18A D2PAK
- Manufacturer
- ST
- Manufacturer part #
- STB24N60DM2
- Store part #
- C2969962
- Package / case
- D2PAK
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
38 in stock
#C2969962
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹699.21 | ₹699.21 |
| 10+ | ₹625.26 | ₹6,252.60 |
| 30+ | ₹581.42 | ₹17,442.60 |
| 100+ | ₹536.93 | ₹53,693.00 |
| 500+ | ₹516.29 | ₹2,58,145.00 |
| 1,000+ | ₹507.04 | ₹5,07,040.00 |
1 × ₹699.21
₹699.21
excl. GST
₹825.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
STB24N60DM2
₹699.21 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 56pF
- Ciss-Input Capacitance
- 1.055nF
- Pd - Power Dissipation
- 150W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Current - Continuous Drain(Id)
- 18A
- Reverse Transfer Capacitance (Crss)
- 2.4pF
- RDS(on)
- 200mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 29nC@10V
- Vgs
- ±25V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.94 g
Overview
These FDmesh II Plus low Qg Power MOSFETs with intrinsic fast-recovery body diode are produced using a new generation of MDmesh technology: MDmesh II Plus low Qg. These revolutionary Power MOSFETs associate a vertical structure to the company's strip layout to yield one of the lowest on-resistance and gate charge. They are therefore suitable for the most demanding high efficiency converters and ideal for bridge topologies and ZVS phase-shift converters.
Applications
- Switching applications
Key features
- Extremely low gate charge and input capacitance
- Lower RDS(on) X area vs previous generation
- Low gate input resistance
- 100% avalanche tested
- Zener-protected
- Extremely high dv/dt and avalanche capabilities
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTB190N65S3HF#C604393onsemi · TO-263 | onsemi | TO-263 | 1 | ₹775.45 · 1 in stock | View |
 | NVB190N65S3F#C604527onsemi · D2PAK | onsemi | D2PAK | 1 | ₹633.86 · 1 in stock | View |
| STB32N65M5#C2971102ST · D2PAK | ST | D2PAK | 10 | ₹3,283.18 · 10 in stock | View | |
 | STB28N65M2#C2971536ST · D2PAK | ST | D2PAK | 1 | ₹686.73 · 1 in stock | View |
 | STB30N65M5#C500941ST · D2PAK | ST | D2PAK | 10 | ₹1,125.08 · 10 in stock | View |
