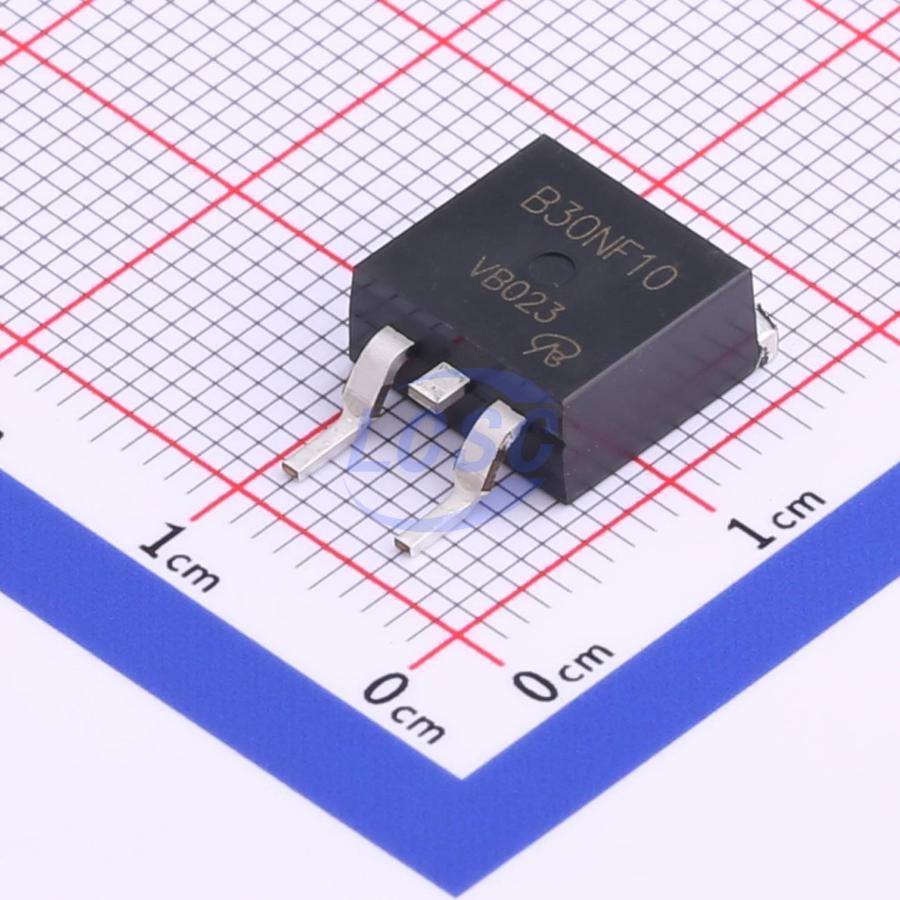

STB30NF10T4-VB
N-Channel 100V 45A 127W Surface Mount TO-263(D2PAK)
TO-263(D2PAK)RoHSActive
MOSFET N-CH 100V 45A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STB30NF10T4-VB
- Store part #
- C878989
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
44 in stock
#C878989
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹128.19 | ₹128.19 |
| 10+ | ₹104.11 | ₹1,041.10 |
| 50+ | ₹92.16 | ₹4,608.00 |
| 100+ | ₹80.23 | ₹8,023.00 |
| 500+ | ₹73.11 | ₹36,555.00 |
| 1,000+ | ₹69.54 | ₹69,540.00 |
1 × ₹128.19
₹128.19
excl. GST
₹151.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STB30NF10T4-VB
₹128.19 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 410pF
- Current - Continuous Drain(Id)
- 45A
- Ciss-Input Capacitance
- 3.1nF
- Pd - Power Dissipation
- 127W
- Reverse Transfer Capacitance (Crss)
- 150pF
- RDS(on)
- 30mΩ@10V;35mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 35nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.2 g
Overview
Key features
- Trench power MOSFET
- 175°C junction temperature
- Low thermal resistance package
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NDB710AE-VB#C19626738VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 20 | ₹130.06 · 20 in stock | View |
 | PHB27NQ10T,118-VB#C52190961VBsemi Elec · TO-263 | VBsemi Elec | TO-263 | 5 | ₹142.16 · 5 in stock | View |
 | PSMN034-100BS,118-VB#C52190963VBsemi Elec · TO-263 | VBsemi Elec | TO-263 | 5 | ₹142.16 · 5 in stock | View |
 | BUK9637-100E,118-VB#C52190964VBsemi Elec · TO-263 | VBsemi Elec | TO-263 | 5 | ₹142.16 · 5 in stock | View |
 | BUK9635-100A-118-VB#C52209317VBsemi Elec · TO-263 | VBsemi Elec | TO-263 | 10 | ₹142.16 · 10 in stock | View |
