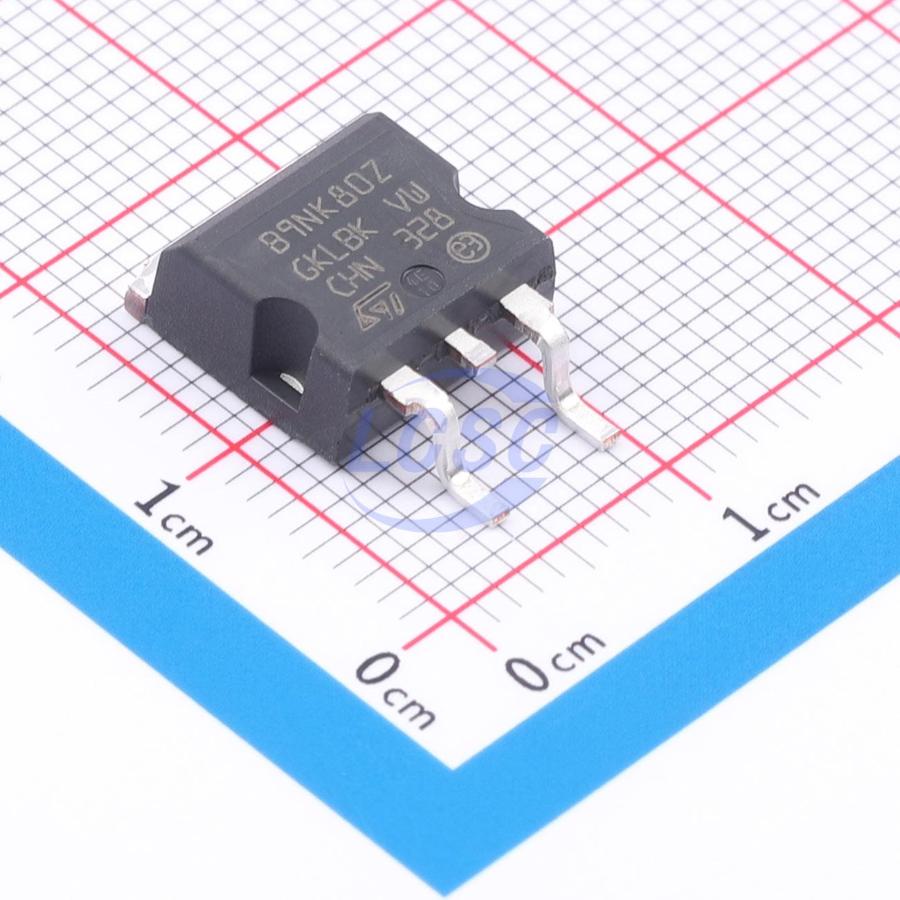

STB9NK80Z
N-Channel 800V 5.2A 125W Surface Mount D2PAK
D2PAKROHS3 CompliantActive
MOSFET N-CH 800V 5.2A D2PAK
- Manufacturer
- ST
- Manufacturer part #
- STB9NK80Z
- Store part #
- C2965391
- Package / case
- D2PAK
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C2965391
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹333.37 | ₹333.37 |
| 10+ | ₹328.22 | ₹3,282.20 |
| 30+ | ₹324.99 | ₹9,749.70 |
| 100+ | ₹321.77 | ₹32,177.00 |
1 × ₹333.37
₹333.37
excl. GST
₹393.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
STB9NK80Z
₹333.37 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 800V
- Output Capacitance(Coss)
- 122pF
- Current - Continuous Drain(Id)
- 5.2A
- Ciss-Input Capacitance
- 1.138nF
- Pd - Power Dissipation
- 125W
- Reverse Transfer Capacitance (Crss)
- 25pF
- RDS(on)
- 1.8Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 40nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.68 g
Overview
This high-voltage device is a Zener-protected N-channel Power MOSFET developed using the SuperMESH technology, an optimization of the well-established PowerMESH. In addition to a significant reduction in on-resistance, this device is designed to ensure a high level of dv/dt capability for the most demanding applications.
Applications
- Switching applications
Key features
- AEC-Q101 qualified
- 100% avalanche tested
- Gate charge minimized
- Very low intrinsic capacitance
- Zener-protected
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STB7NK80ZT4#C283493ST · D2PAK | ST | D2PAK | 94 | ₹162.69 · 94 in stock | View |
 | STB6NK90ZT4#C315154ST · D2PAK | ST | D2PAK | 142 | ₹176.44 · 142 in stock | View |
 | MS8N100FE#C3825155MASPOWER · TO-263 | MASPOWER | TO-263 | 372 | ₹171.88 · 372 in stock | View |
 | FQB5N90TM#C463024onsemi · D2PAK | onsemi | D2PAK | 870 | ₹275.58 · 870 in stock | View |
 | STB10N95K5#C2688654ST · D2PAK | ST | D2PAK | 521 | ₹303.72 · 521 in stock | View |
