STDatasheet (PDF)

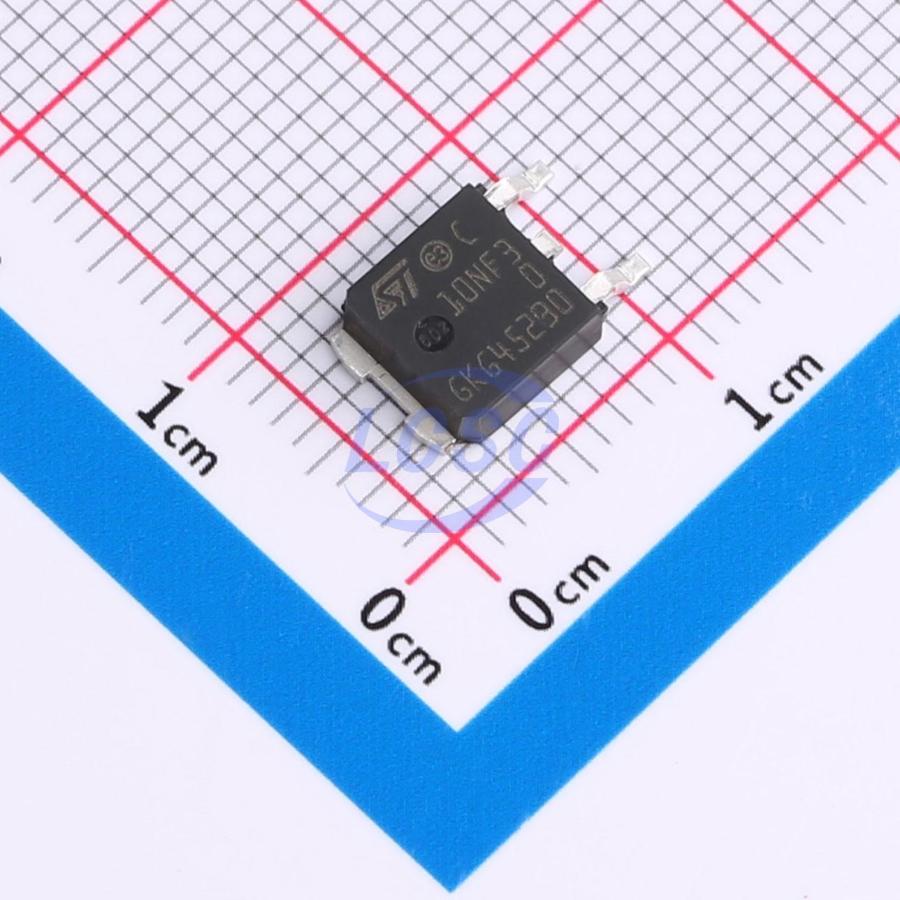

STD10NF30
103W 300V 10A 330mΩ@10V 1 N-channel N-Channel TO-252(DPAK) Single FETs, MOSFETs RoHS
TO-252(DPAK)ROHS3 CompliantActive
- Manufacturer
- ST
- Manufacturer part #
- STD10NF30
- Store part #
- C2970017
- Package / case
- TO-252(DPAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C2970017
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹285.56 | ₹285.56 |
| 10+ | ₹251.29 | ₹2,512.90 |
| 30+ | ₹229.83 | ₹6,894.90 |
| 100+ | ₹195.58 | ₹19,558.00 |
| 500+ | ₹185.60 | ₹92,800.00 |
| 1,000+ | ₹181.26 | ₹1,81,260.00 |
1 × ₹285.56
₹285.56
excl. GST
₹336.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STD10NF30
₹285.56 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 110pF
- Ciss-Input Capacitance
- 780pF
- Pd - Power Dissipation
- 103W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 300V
- Current - Continuous Drain(Id)
- 10A
- Reverse Transfer Capacitance (Crss)
- 15pF
- RDS(on)
- 330mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 23nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.4 g
Overview
This fully clamped MOSFET is manufactured using ST's latest advanced mesh overlay process, based on an innovative stripe layout. The inherent advantages of this new technology, combined with additional clamping capability, make this product particularly suitable for use under the most severe operating conditions, such as those encountered in automotive environments. The device is also well suited for other applications requiring enhanced durability.
Applications
- Switching applications
Key features
- AEC-Q101 qualified
- 100% avalanche tested
- Low capacitance and low gate charge
- Maximum junction temperature 175°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TK290P65Y,RQ#C146274TOSHIBA · TO-252(DPAK) | TOSHIBA | TO-252(DPAK) | 154 | ₹291.58 · 154 in stock | View |
 | NCE65T360K#C181931NCE · TO-252 | NCE | TO-252 | 5,171 | ₹127.50 · 5,171 in stock | View |
 | STD16N60M2#C2970218ST · DPAK | ST | DPAK | 1,405 | ₹118.66 · 1,405 in stock | View |
 | BMD65N340C1#C53426988Bestirpower · DPAK | Bestirpower | DPAK | 168 | ₹89.62 · 168 in stock | View |
 | NCE70T360K#C502909NCE · TO-252 | NCE | TO-252 | 1,142 | ₹112.90 · 1,142 in stock | View |
