STDatasheet (PDF)

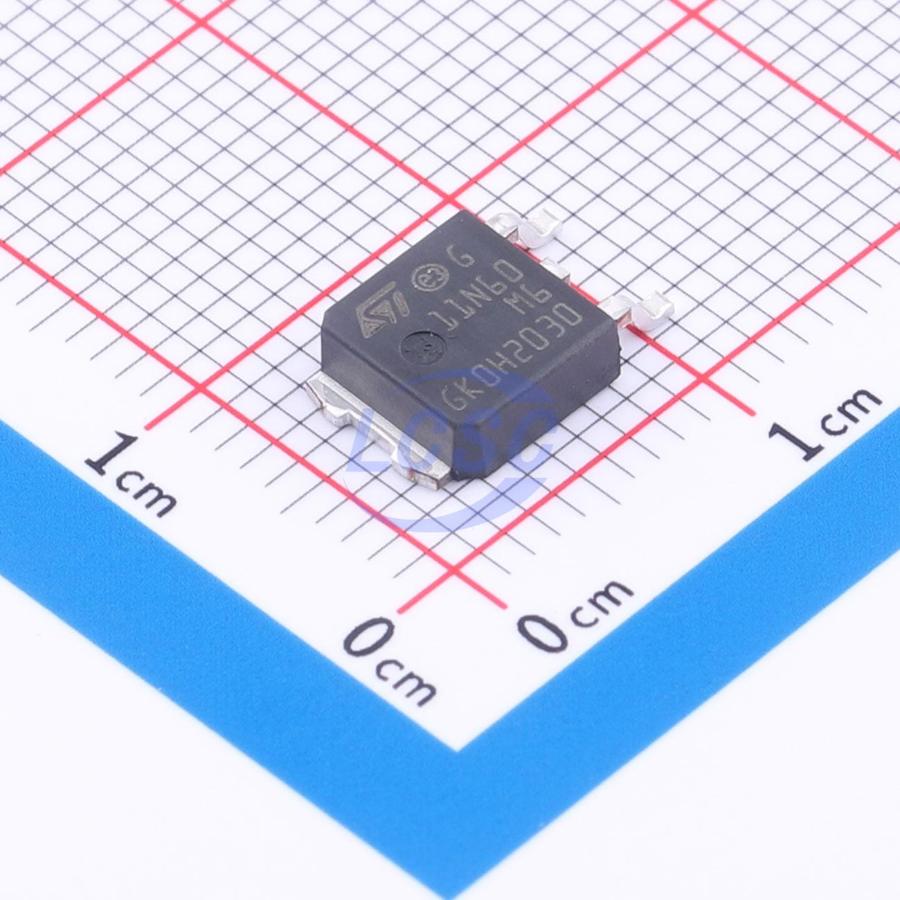

STD11N60M6
N-Channel 600V 8A 90W Surface Mount DPAK
DPAKROHS3 CompliantActive
MOSFET N-CH 600V 8A DPAK
- Manufacturer
- ST
- Manufacturer part #
- STD11N60M6
- Store part #
- C5268761
- Package / case
- DPAK
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
29 in stock
#C5268761
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹214.25 | ₹214.25 |
| 10+ | ₹208.68 | ₹2,086.80 |
| 30+ | ₹205.03 | ₹6,150.90 |
| 100+ | ₹201.37 | ₹20,137.00 |
1 × ₹214.25
₹214.25
excl. GST
₹252.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
STD11N60M6
₹214.25 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Output Capacitance(Coss)
- 35pF
- Current - Continuous Drain(Id)
- 8A
- Ciss-Input Capacitance
- 387pF
- Pd - Power Dissipation
- 90W
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 500mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 10.3nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.5 g
Overview
The new MDmesh M6 technology integrates the latest technological advancements into the well-established SJ MOSFET MDmesh product family. It delivers outstanding improvement in RDS(on) per unit area, combined with efficient switching performance, providing users with a seamless experience and achieving maximum efficiency in end applications.
Applications
- Switching applications
- LLC converters
- Boost PFC converters
Key features
- Reduced switching losses
- Lower RDS(on) per unit area compared to previous generation
- Low gate input resistance
- 100% avalanche tested
- Zener protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| STD12N60M6#C5268757ST · DPAK | ST | DPAK | 32 | ₹272.00 · 32 in stock | View | |
 | FCD600N60Z-VB#C18212487VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 5 | ₹138.77 · 5 in stock | View |
 | 08N50C3 TO252-VB#C19190119VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 25 | ₹140.74 · 25 in stock | View |
 | FQD7N65C-VB#C19711319VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹137.17 · 50 in stock | View |
 | STD10NM60N-VB#C20626329VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | On request | ₹147.61 · 0 in stock | View |
