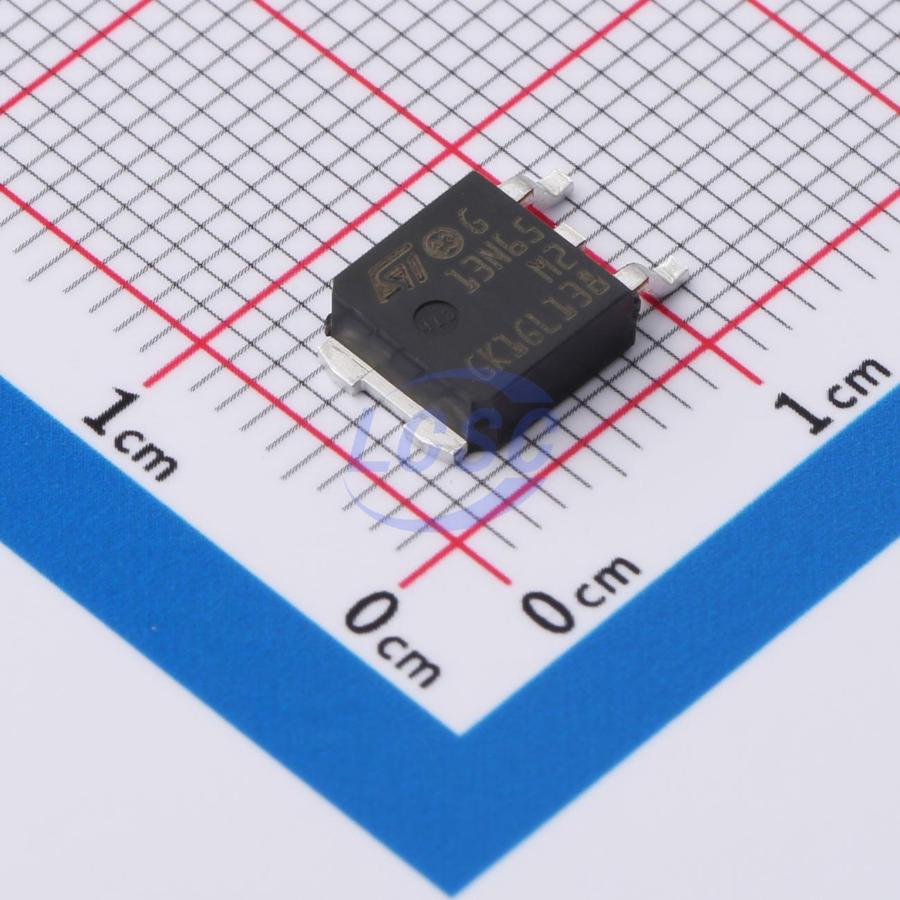

STD13N65M2
110W 650V 10A 430mΩ@10V 1 N-channel N-Channel DPAK Single FETs, MOSFETs RoHS
DPAKROHS3 CompliantActive
MOSFET N-CH 650V 10A DPAK
- Manufacturer
- ST
- Manufacturer part #
- STD13N65M2
- Store part #
- C2970253
- Package / case
- DPAK
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
29 in stock
#C2970253
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹166.67 | ₹166.67 |
| 10+ | ₹162.98 | ₹1,629.80 |
| 30+ | ₹160.59 | ₹4,817.70 |
| 100+ | ₹150.60 | ₹15,060.00 |
1 × ₹166.67
₹166.67
excl. GST
₹196.67 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STD13N65M2
₹166.67 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 27.5pF
- Ciss-Input Capacitance
- 590pF
- Pd - Power Dissipation
- 110W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Current - Continuous Drain(Id)
- 10A
- Reverse Transfer Capacitance (Crss)
- 1.1pF
- RDS(on)
- 430mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 17nC@10V
- Vgs
- ±25V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.9 g
Overview
This device is an N-channel power MOSFET developed using MDmesh M2 technology. Thanks to its strip layout and improved vertical structure, the device features low on-resistance and optimized switching characteristics, making it suitable for the most demanding high-efficiency converters.
Applications
- Switching applications
Key features
- Ultra-low gate charge
- Excellent output capacitance (Coss) characteristics
- 100% avalanche tested
- Zener protected
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STD13N60M2#C457506ST · DPAK | ST | DPAK | 3,645 | ₹88.55 · 3,645 in stock | View |
 | STD12N60DM2AG#C495234ST · TO-252 | ST | TO-252 | 67 | ₹358.39 · 67 in stock | View |
| STD11N60DM2#C2688635ST · DPAK | ST | DPAK | 795 | ₹167.19 · 795 in stock | View | |
| STD15N60M2-EP#C5268729ST · DPAK | ST | DPAK | 26 | ₹257.93 · 26 in stock | View | |
