STDatasheet (PDF)

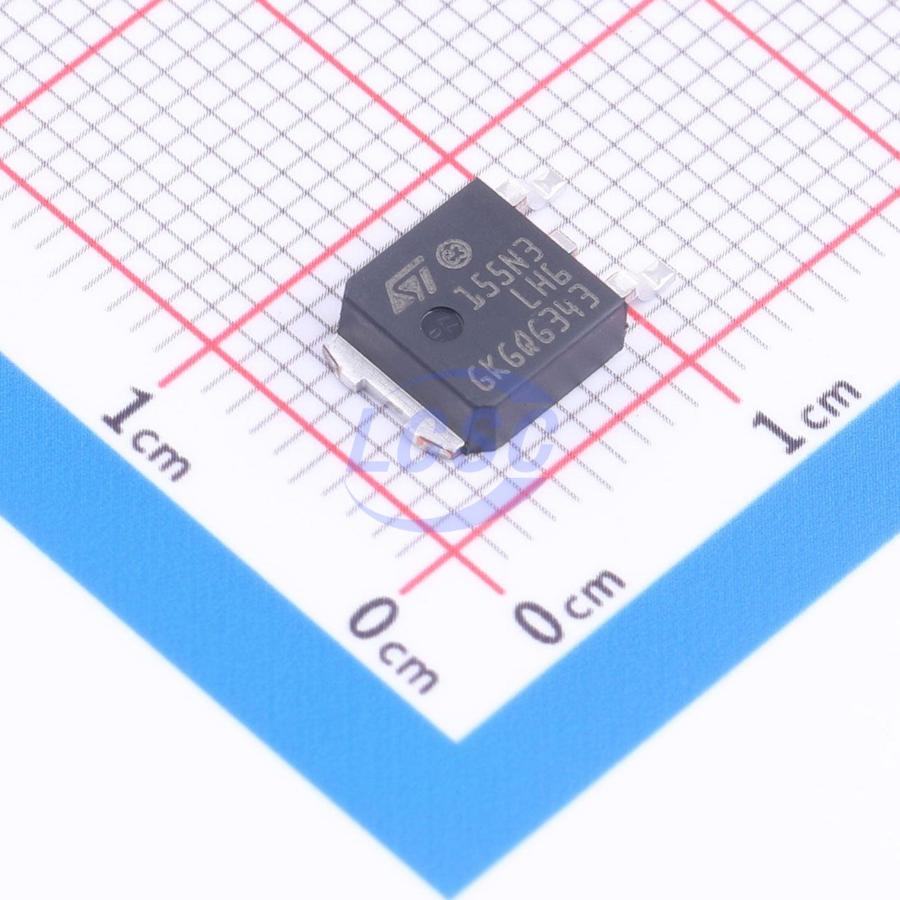

STD155N3LH6
110W 30V 80A 2.4mΩ@10V 1 N-channel N-Channel DPAK(TO-252) Single FETs, MOSFETs
DPAK(TO-252)RoHSActive
- Manufacturer
- ST
- Manufacturer part #
- STD155N3LH6
- Store part #
- C5268665
- Package / case
- DPAK(TO-252)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C5268665
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹338.32 | ₹338.32 |
| 10+ | ₹332.51 | ₹3,325.10 |
| 30+ | ₹328.65 | ₹9,859.50 |
| 100+ | ₹324.78 | ₹32,478.00 |
1 × ₹338.32
₹338.32
excl. GST
₹399.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STD155N3LH6
₹338.32 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 725pF
- Ciss-Input Capacitance
- 3.8nF
- Pd - Power Dissipation
- 110W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 80A
- Reverse Transfer Capacitance (Crss)
- 420pF
- RDS(on)
- 2.4mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 80nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.478 g
Overview
These devices are N-channel power MOSFETs developed using the 6th generation STripFET DeepGATE technology with a new gate structure. The resulting power MOSFETs deliver the lowest on-state resistance (RDS(on)) across all package types.
Applications
- Switching applications
- Automotive
Key features
- Current limited by package
- 100% avalanche tested
- Logic level drive
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| STD120N4LF6#C2971636ST · DPAK | ST | DPAK | 60 | ₹574.96 · 60 in stock | View | |
 | JMTK3003A#C2890418Jiangsu JieJie Microelectronics · TO-252 | Jiangsu JieJie Microelectronics | TO-252 | 55 | ₹40.51 · 55 in stock | View |
| STD100N3LF3#C2970469ST · DPAK | ST | DPAK | 24 | ₹377.19 · 24 in stock | View | |
 | AOD4132#C115836AOS · TO-252-2(DPAK) | AOS | TO-252-2(DPAK) | 19 | ₹103.43 · 19 in stock | View |
 | IRLR7843TRPBF-JSM#C18191948JSMSEMI · TO-252 | JSMSEMI | TO-252 | 1,955 | ₹49.90 · 1,955 in stock | View |
