STDatasheet (PDF)

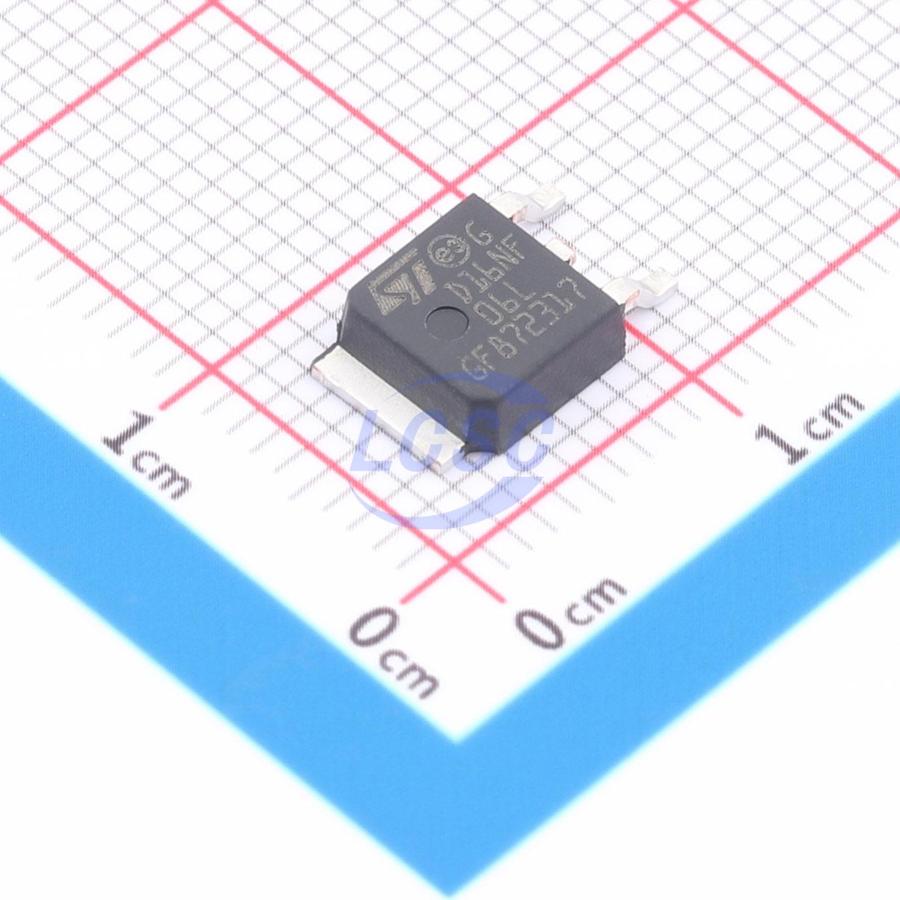

STD16NF06LT4
N-Channel 60V 24A 40W Surface Mount DPAK
DPAKROHS3 CompliantActive
MOSFET N-CH 60V 24A DPAK
- Manufacturer
- ST
- Manufacturer part #
- STD16NF06LT4
- Store part #
- C48580222
- Package / case
- DPAK
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C48580222
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹159.50 | ₹159.50 |
| 10+ | ₹131.90 | ₹1,319.00 |
| 30+ | ₹116.69 | ₹3,500.70 |
| 100+ | ₹99.53 | ₹9,953.00 |
| 500+ | ₹91.92 | ₹45,960.00 |
| 1,000+ | ₹88.44 | ₹88,440.00 |
1 × ₹159.50
₹159.50
excl. GST
₹188.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STD16NF06LT4
₹159.50 for 1 + GST
Specifications
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 24A
- Output Capacitance(Coss)
- 69pF
- Ciss-Input Capacitance
- 370pF
- Pd - Power Dissipation
- 40W
- Reverse Transfer Capacitance (Crss)
- 30pF
- RDS(on)
- 85mΩ@5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 6nC@5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- Ear99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.476 g
Overview
This Power MOSFET is the latest development of unique "Single Feature Size™" strip-based process. The resulting transistor shows extremely high packing density for low on-resistance, rugged avalanche characteristics and less critical alignment steps therefore a remarkable manufacturing reproducibility.
Applications
- Switching application
Key features
- Logic level device
- Low threshold drive
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CMD35N06B#C22364949Cmos · TO-252 | Cmos | TO-252 | 5 | ₹16.31 · 5 in stock | View |
 | AP40N100K#C2995335ALLPOWER · TO-252 | ALLPOWER | TO-252 | 9,495 | ₹36.61 · 9,495 in stock | View |
 | 20N06#C337511GOFORD · TO-252 | GOFORD | TO-252 | 40 | ₹32.66 · 40 in stock | View |
 | SUD23N06-31L-JSM#C6533554JSMSEMI · TO-252 | JSMSEMI | TO-252 | 205 | ₹48.98 · 205 in stock | View |
 | CMD30N06AL#C5203859Cmos · TO-252 | Cmos | TO-252 | 180 | ₹25.16 · 180 in stock | View |
