STDatasheet (PDF)

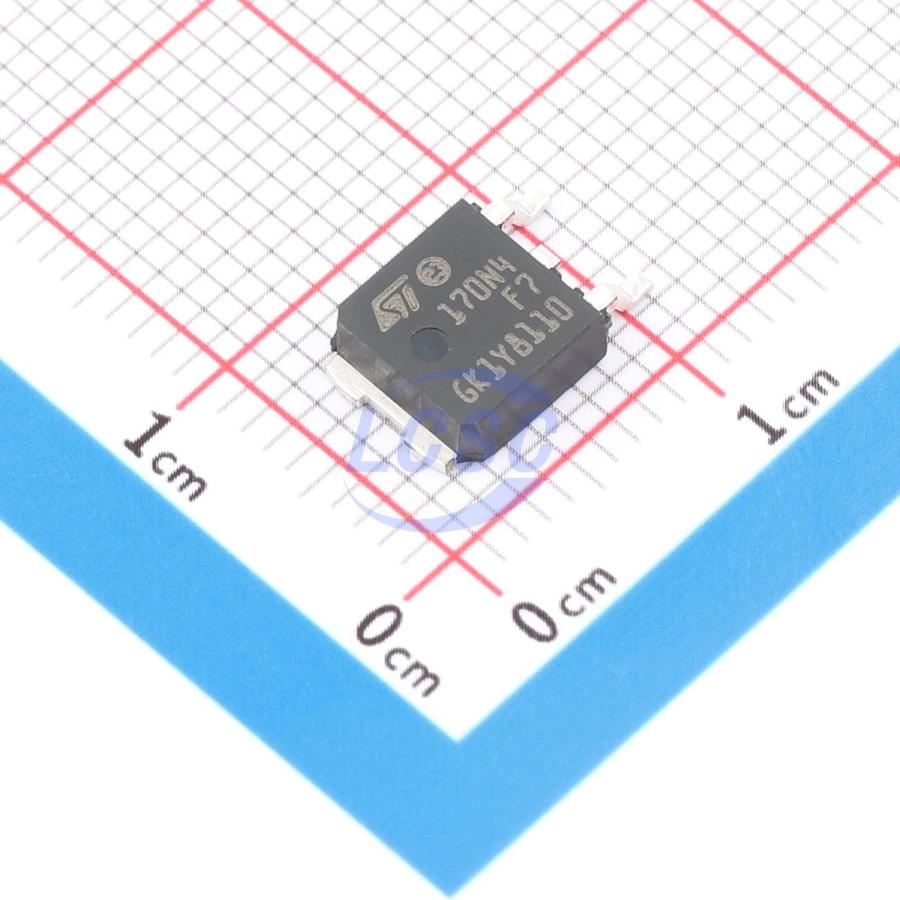

STD170N4F7AG
40V 80A 172W 2.8mΩ@10V 1 N-channel N-Channel DPAK Single FETs, MOSFETs RoHS
DPAKROHS3 CompliantActive
MOSFET 40V 80A DPAK
- Manufacturer
- ST
- Manufacturer part #
- STD170N4F7AG
- Store part #
- C5268625
- Package / case
- DPAK
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C5268625
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹668.90 | ₹668.90 |
| 10+ | ₹659.65 | ₹6,596.50 |
| 30+ | ₹653.42 | ₹19,602.60 |
| 100+ | ₹647.19 | ₹64,719.00 |
1 × ₹668.90
₹668.90
excl. GST
₹789.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STD170N4F7AG
₹668.90 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 1.43nF
- Current - Continuous Drain(Id)
- 80A
- Ciss-Input Capacitance
- 4.35nF
- Pd - Power Dissipation
- 172W
- Reverse Transfer Capacitance (Crss)
- 80pF
- RDS(on)
- 2.8mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 63nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.79 g
Overview
This N-channel power MOSFET utilizes StripFET™ F7 technology with an enhanced trench gate structure, achieving ultra-low on-resistance while reducing internal capacitance and gate charge for faster, more efficient switching operation.
Applications
- Switching applications
Key features
- AEC-Q101 qualified
- One of the lowest on-state resistance (RDS(on)) products on the market
- Excellent figure of merit (FoM)
- Low Crss/Ciss ratio with EMI immunity
- High avalanche ruggedness
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMTH6004SK3Q-13#C526586DIODES · TO-252(DPAK) | DIODES | TO-252(DPAK) | 1,011 | ₹191.29 · 1,011 in stock | View |
| MS100N06HDD0#C55042272MASPOWER · TO-252 | MASPOWER | TO-252 | 50 | ₹166.78 · 50 in stock | View | |
 | DMTH4004LK3-13#C260930DIODES · TO-252 | DIODES | TO-252 | 9,484 | ₹97.68 · 9,484 in stock | View |
 | IPD025N06NATMA1#C3279005Infineon · TO-252 | Infineon | TO-252 | 5,599 | ₹206.85 · 5,599 in stock | View |
 | K33S10N1Z-VB#C18212509VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 49 | ₹130.06 · 49 in stock | View |
