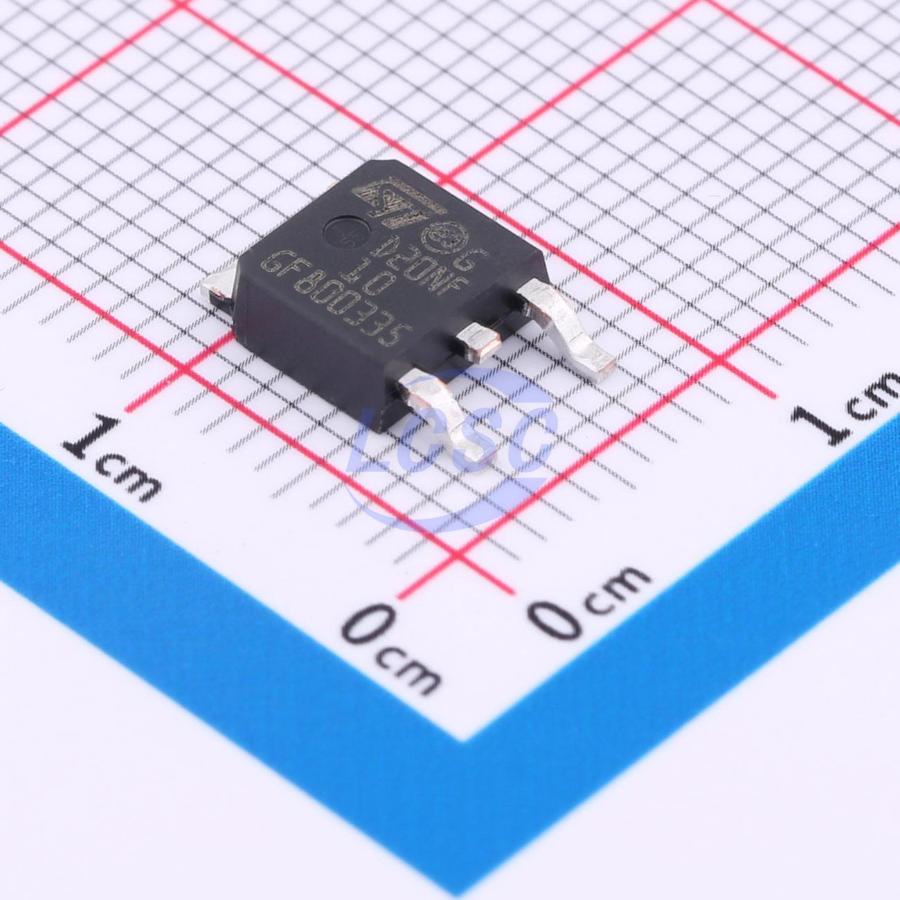

STD20NF10T4
N-Channel 100V 25A 85W Surface Mount DPAK
DPAKROHS3 CompliantActive
MOSFET N-CH 100V 25A DPAK
- Manufacturer
- ST
- Manufacturer part #
- STD20NF10T4
- Store part #
- C5162412
- Package / case
- DPAK
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
80 in stock
#C5162412
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹171.05 | ₹171.05 |
| 10+ | ₹140.52 | ₹1,405.20 |
| 30+ | ₹123.81 | ₹3,714.30 |
| 100+ | ₹104.82 | ₹10,482.00 |
| 500+ | ₹96.37 | ₹48,185.00 |
| 1,000+ | ₹92.65 | ₹92,650.00 |
1 × ₹171.05
₹171.05
excl. GST
₹201.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
STD20NF10T4
₹171.05 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 25A
- Ciss-Input Capacitance
- 1.2nF
- Pd - Power Dissipation
- 85W
- Reverse Transfer Capacitance (Crss)
- 80pF
- RDS(on)
- 45mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 55nC@80V
- Gate Threshold Voltage (Vgs(th))
- 3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.548 g
Overview
This MOSFET series realized with unique STripFET process has specifically been designed to minimize input capacitance and gate charge. It is therefore suitable as primary switch in advanced high - efficiency, high - frequency isolated DC - DC converters for Telecom and Computer applications. It is also intended for any applications with low gate drive requirements.
Applications
- Switching applications
Key features
- Current limited by package
- Exceptional dv/dt capability
- Application oriented characterization
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VBE1104N#C416248VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 44 | ₹112.43 · 44 in stock | View |
 | CMD530N15#C49208272Cmos · TO-252 | Cmos | TO-252 | 5 | ₹50.14 · 5 in stock | View |
 | ST36N10D#C2682822STANSON Tech. · TO-252 | STANSON Tech. | TO-252 | 4 | ₹46.54 · 4 in stock | View |
| MDD1902RH#C193406MagnaChip Semicon · TO-252(DPAK) | MagnaChip Semicon | TO-252(DPAK) | 5,762 | ₹36.50 · 5,762 in stock | View | |
| HSU30N20#C42376812HUASHUO · TO-252 | HUASHUO | TO-252 | 2,597 | ₹94.32 · 2,597 in stock | View | |
