STDatasheet (PDF)

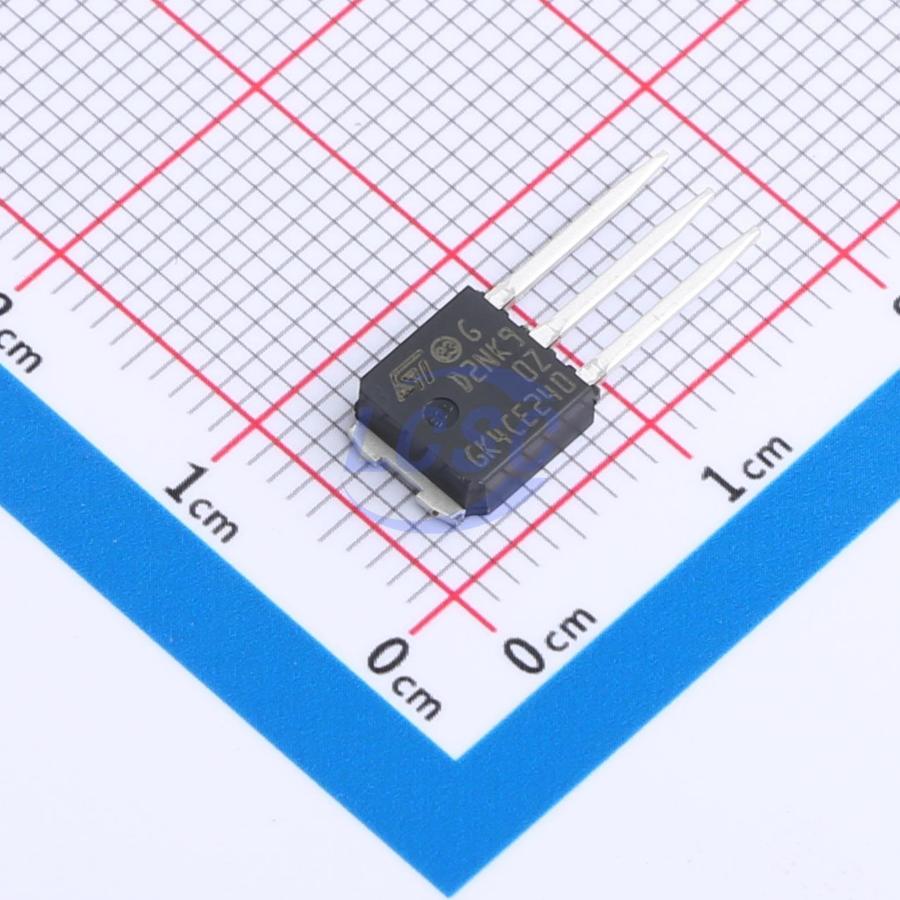

STD2NK90Z-1
N-Channel 900V 2.1A 70W Through Hole IPAK(TO-251)
IPAK(TO-251)ROHS3 CompliantActive
MOSFET N-CH 900V 2.1A IPAK(TO-251)
- Manufacturer
- ST
- Manufacturer part #
- STD2NK90Z-1
- Store part #
- C2971009
- Package / case
- IPAK(TO-251)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14 in stock
#C2971009
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹167.54 | ₹167.54 |
| 10+ | ₹163.63 | ₹1,636.30 |
| 30+ | ₹161.02 | ₹4,830.60 |
| 75+ | ₹158.42 | ₹11,881.50 |
1 × ₹167.54
₹167.54
excl. GST
₹197.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 75 per tube
STD2NK90Z-1
₹167.54 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 900V
- Output Capacitance(Coss)
- 50pF
- Current - Continuous Drain(Id)
- 2.1A
- Ciss-Input Capacitance
- 485pF
- Pd - Power Dissipation
- 70W
- Reverse Transfer Capacitance (Crss)
- 10pF
- RDS(on)
- 6.5Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 27nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 75 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.885 g
Overview
These high-voltage devices are Zener-protected N-channel Power MOSFETs developed using the SuperMESH™ technology, an optimization of the well-established PowerMESH™. In addition to a significant reduction in on-resistance, these devices are designed to ensure a high level of dv/dt capability for the most demanding applications.
Applications
- Switching applications
Key features
- Extremely high dv/dt capability
- 100% avalanche tested
- Gate charge minimized
- Very low intrinsic capacitance
- Zener-protected
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CMU3N90A#C55387894Cmos · TO-251 | Cmos | TO-251 | 160 | ₹43.67 · 160 in stock | View |
 | MS3N100HGD1#C5353710MASPOWER · TO-251 | MASPOWER | TO-251 | 14 | ₹72.58 · 14 in stock | View |
 | MMIS90R1K4PTH#C51902204MagnaChip Semicon · TO-251 | MagnaChip Semicon | TO-251 | 2 | ₹88.64 · 2 in stock | View |
 | 2N90G-TM3-T#C427626UTC · TO-251 | UTC | TO-251 | On request | ₹66.16 · 0 in stock | View |
 | CS3N90A3H1-G#C162396Wuxi China Resources Huajing Microelectronics · TO-251(IPAK) | Wuxi China Resources Huajing Microelectronics | TO-251(IPAK) | On request | ₹65.57 · 0 in stock | View |
