HXY MOSFETDatasheet (PDF)

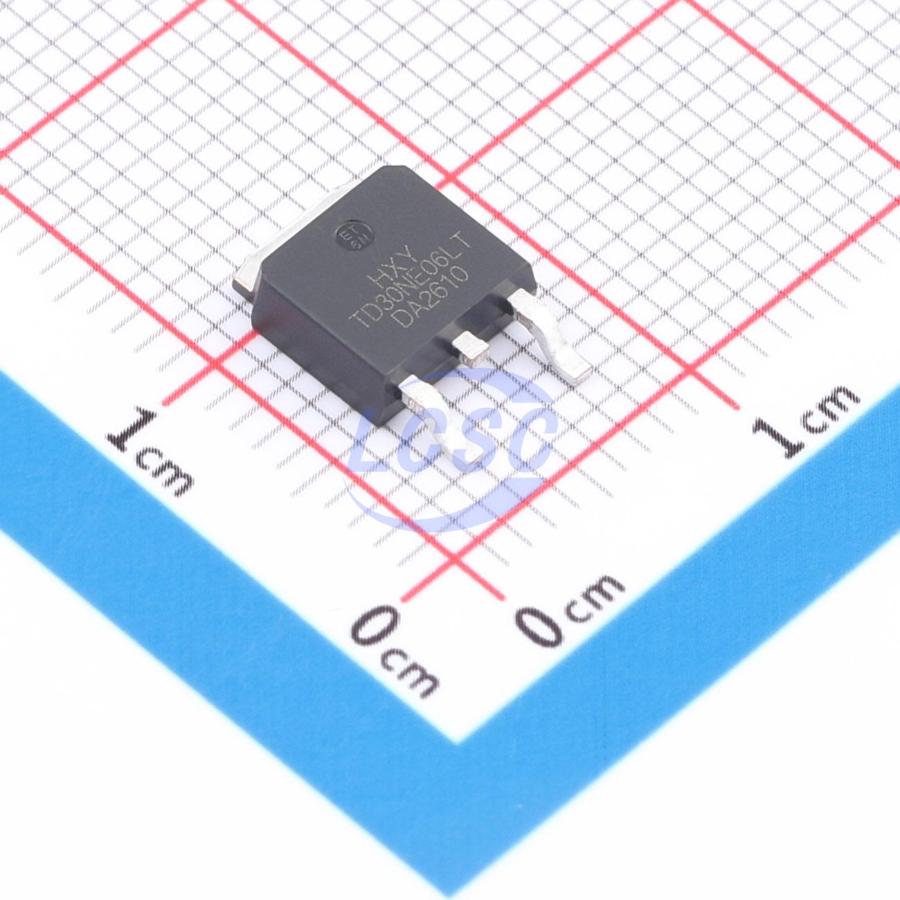

STD30NE06LT4-HXY
60V 30A 34.7W 22mΩ@10V 1 N-channel N-Channel TO-252-2L Single FETs, MOSFETs
TO-252-2LRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- STD30NE06LT4-HXY
- Store part #
- C54582510
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
47 in stock
#C54582510
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹61.81 | ₹61.81 |
| 10+ | ₹49.53 | ₹495.30 |
| 30+ | ₹44.15 | ₹1,324.50 |
| 100+ | ₹37.69 | ₹3,769.00 |
| 500+ | ₹31.01 | ₹15,505.00 |
| 1,000+ | ₹29.29 | ₹29,290.00 |
1 × ₹61.81
₹61.81
excl. GST
₹72.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STD30NE06LT4-HXY
₹61.81 for 1 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 86pF
- Current - Continuous Drain(Id)
- 30A
- Ciss-Input Capacitance
- 1.378nF
- Pd - Power Dissipation
- 34.7W
- Reverse Transfer Capacitance (Crss)
- 64pF
- RDS(on)
- 22mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 12.6nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.416 g
Overview
The STD30NE06LT4 utilizes advanced trench technology to deliver excellent on-state resistance (RDS(ON)), low gate charge, and operation at gate voltages as low as 4.5V. This device is suitable for battery protection and other switching applications.
Applications
- Battery protection
- Load switch
- Uninterruptible power supply
Key features
- Drain-source voltage (VDS) = 60V, drain current (ID) = 30A
- On-resistance (RDS(ON)) < 26mΩ at VGS = 10V
