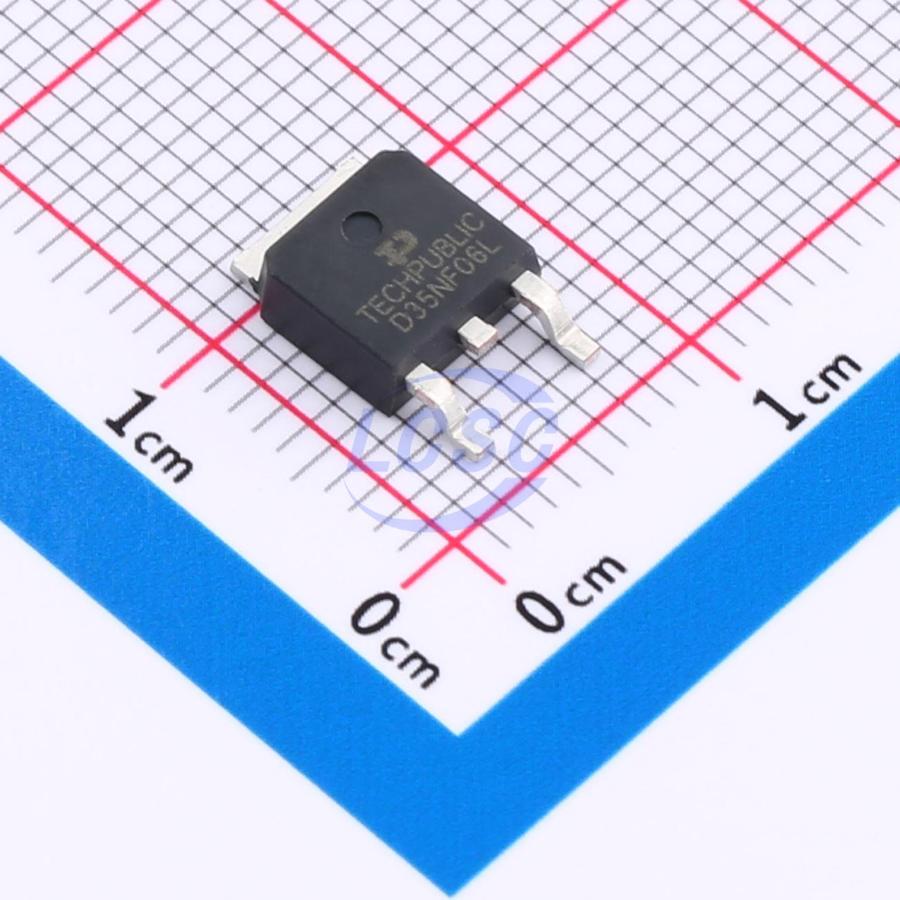

STD35NF06L
N-Channel 60V 50A 85W Surface Mount TO-252-3L
TO-252-3LRoHSActive
MOSFET N-CH 60V 50A TO-252-3L
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- STD35NF06L
- Store part #
- C20611850
- Package / case
- TO-252-3L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,455 in stock
#C20611850
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.48 | ₹202.40 |
| 50+ | ₹31.69 | ₹1,584.50 |
| 150+ | ₹27.93 | ₹4,189.50 |
| 500+ | ₹23.22 | ₹11,610.00 |
| 2,500+ | ₹21.13 | ₹52,825.00 |
| 5,000+ | ₹19.87 | ₹99,350.00 |
5 × ₹40.48
₹202.40
excl. GST
₹238.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STD35NF06L
₹202.40 for 5 + GST
Specifications
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+175℃
- Output Capacitance(Coss)
- 158pF
- Current - Continuous Drain(Id)
- 50A
- Ciss-Input Capacitance
- 2.05nF
- Pd - Power Dissipation
- 85W
- Reverse Transfer Capacitance (Crss)
- 120pF
- RDS(on)
- 20mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 50nC
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.458 g
Overview
Applications
- Notebook PC power management
- DC-DC converters
- Load switches
- LCD inverters
Key features
- Drain-Source Voltage (VDS) = 60V, Drain Current (ID) = 50A
- On-State Resistance RDS(ON) < 20mΩ at VGS = 10V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AOD442#C5350896TECH PUBLIC · TO-252-2(DPAK) | TECH PUBLIC | TO-252-2(DPAK) | 4,825 | ₹40.14 · 4,825 in stock | View |
 | 50N06#C5350897TECH PUBLIC · TO-252 | TECH PUBLIC | TO-252 | 3,080 | ₹20.41 · 3,080 in stock | View |
 | NTD5865NLT4G#C5350898TECH PUBLIC · TO-252 | TECH PUBLIC | TO-252 | 3,395 | ₹61.28 · 3,395 in stock | View |
 | IRLR2905#C5350899TECH PUBLIC · TO-252 | TECH PUBLIC | TO-252 | 8,030 | ₹41.75 · 8,030 in stock | View |
 | TPM6050NK3#C5350900TECH PUBLIC · TO-252-2 | TECH PUBLIC | TO-252-2 | 2,425 | ₹43.35 · 2,425 in stock | View |
