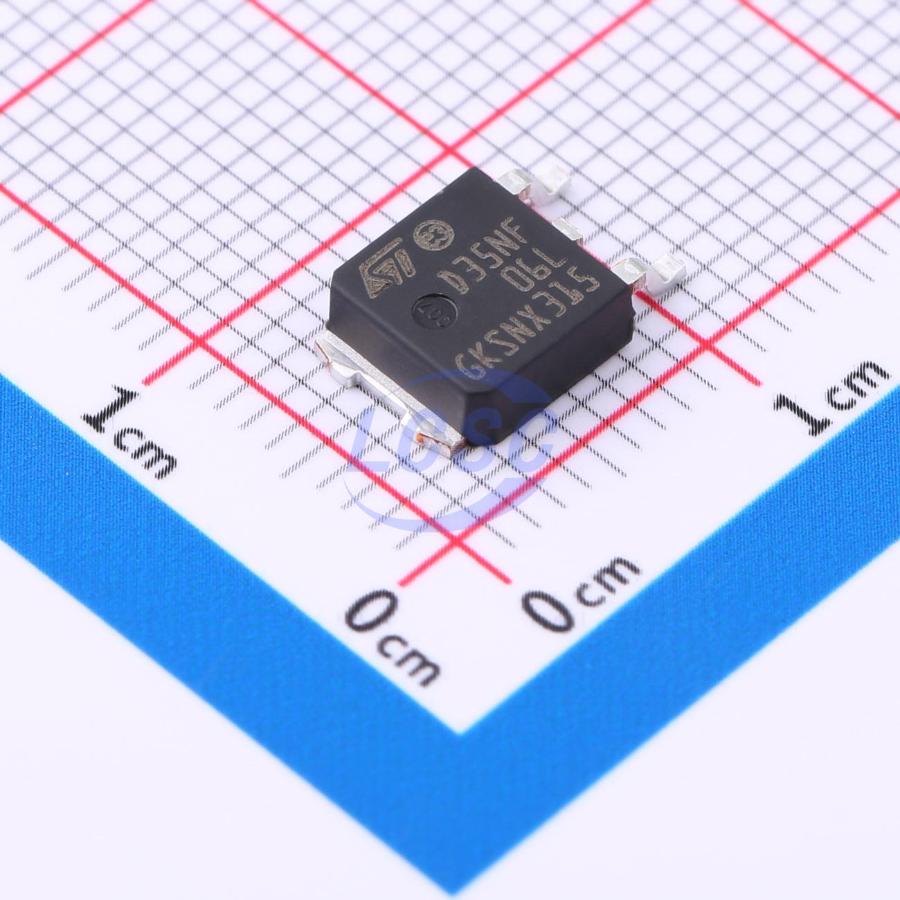

STD35NF06LT4
N-Channel 60V 35A 80W Surface Mount DPAK
DPAKROHS3 CompliantActive
MOSFET N-CH 60V 35A DPAK
- Manufacturer
- ST
- Manufacturer part #
- STD35NF06LT4
- Store part #
- C2688623
- Package / case
- DPAK
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
76 in stock
#C2688623
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹208.17 | ₹208.17 |
| 10+ | ₹175.36 | ₹1,753.60 |
| 30+ | ₹154.72 | ₹4,641.60 |
| 100+ | ₹133.65 | ₹13,365.00 |
| 500+ | ₹124.30 | ₹62,150.00 |
| 1,000+ | ₹120.17 | ₹1,20,170.00 |
1 × ₹208.17
₹208.17
excl. GST
₹245.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STD35NF06LT4
₹208.17 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 305pF
- Ciss-Input Capacitance
- 1.7nF
- Pd - Power Dissipation
- 80W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 35A
- Reverse Transfer Capacitance (Crss)
- 105pF
- RDS(on)
- 17mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 33nC@4.5V
- Vgs
- ±16V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.584 g
Overview
This Power MOSFET has been developed using STMicroelectronics’ unique STripFET process, which is specifically designed to minimize input capacitance and gate charge. This renders the device suitable for use as primary switch in advanced high-efficiency isolated DC-DC converters for telecom and computer applications, and applications with low gate charge driving requirements.
Applications
- Switching application
Key features
- Low threshold drive
- Minimized gate charge
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP60N15TH#C45351222Siliup · TO-252 | Siliup | TO-252 | 1,940 | ₹16.92 · 1,940 in stock | View |
 | ASDM60N45KQ-R#C2972869ASDsemi · TO-252 | ASDsemi | TO-252 | 1,735 | ₹20.81 · 1,735 in stock | View |
 | WSF70N10G#C47116177Winsok Semicon · TO-252-2L | Winsok Semicon | TO-252-2L | 401 | ₹63.08 · 401 in stock | View |
 | SP60N08TH#C45351223Siliup · TO-252 | Siliup | TO-252 | 2,345 | ₹26.59 · 2,345 in stock | View |
 | DE015NG#C41367275DOINGTER · TO-252 | DOINGTER | TO-252 | 2,790 | ₹17.78 · 2,790 in stock | View |
