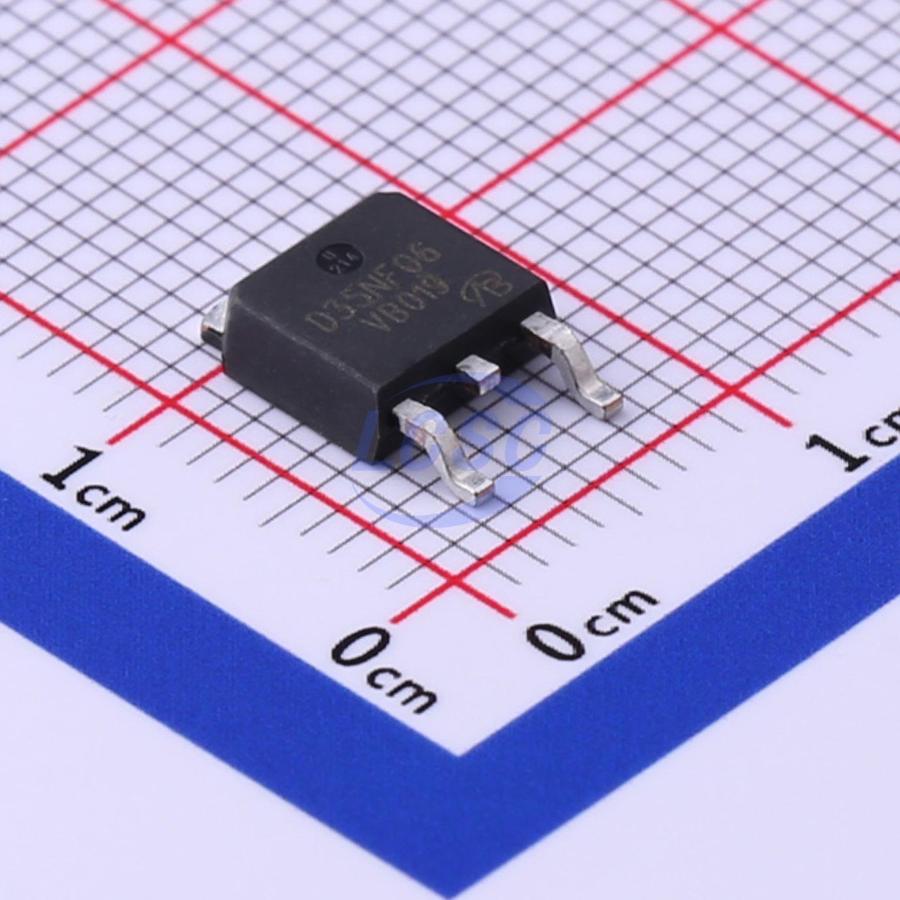

VBsemi ElecDatasheet (PDF)
STD35NF06T4&-38-VB
N-Channel 60V 45A Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 60V 45A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STD35NF06T4&-38-VB
- Store part #
- C558288
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9 in stock
#C558288
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹82.36 | ₹82.36 |
| 10+ | ₹67.80 | ₹678.00 |
| 30+ | ₹61.51 | ₹1,845.30 |
| 100+ | ₹53.90 | ₹5,390.00 |
| 500+ | ₹35.87 | ₹17,935.00 |
| 1,000+ | ₹33.68 | ₹33,680.00 |
1 × ₹82.36
₹82.36
excl. GST
₹97.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STD35NF06T4&-38-VB
₹82.36 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 140pF
- Current - Continuous Drain(Id)
- 45A
- Ciss-Input Capacitance
- 1.5nF
- Reverse Transfer Capacitance (Crss)
- 60pF
- RDS(on)
- 25mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 17nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.386 g
Overview
Key features
- TrenchFET Power MOSFET 175 °C Junction Temperature
- N-Channel MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 30N06G-TN3-T-VB#C20417482VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹68.28 · 50 in stock | View |
 | 350N06L-VB TO252#C22389388VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹70.54 · 20 in stock | View |
 | BUK7230-55A-VB#C29778932VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹65.75 · 20 in stock | View |
 | ME35N06G-VB#C3040205VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 3 | ₹68.48 · 3 in stock | View |
 | HUFA76409T3ST-VB#C45662331VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 10 | ₹69.63 · 10 in stock | View |
