STDatasheet (PDF)

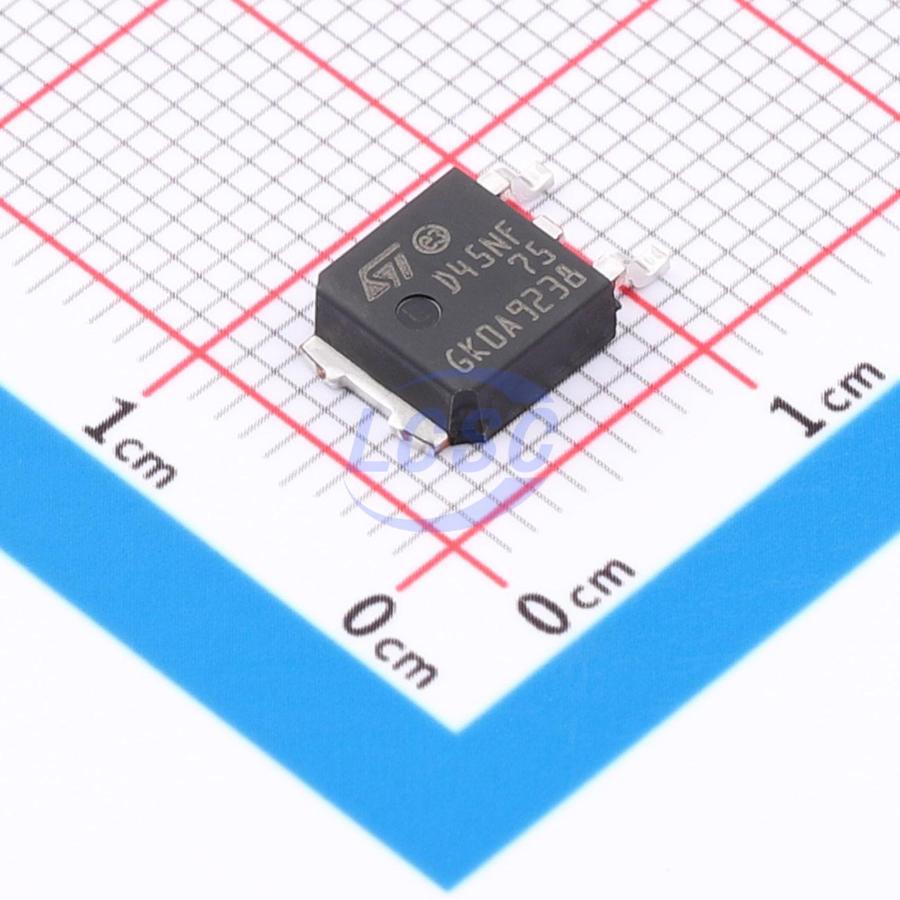

STD45NF75T4
75V 40A 125W 24mΩ@10V 1 N-channel DPAK Single FETs, MOSFETs RoHS
DPAKROHS3 CompliantActive
- Manufacturer
- ST
- Manufacturer part #
- STD45NF75T4
- Store part #
- C6303375
- Package / case
- DPAK
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C6303375
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹518.87 | ₹518.87 |
| 10+ | ₹455.68 | ₹4,556.80 |
| 30+ | ₹416.33 | ₹12,489.90 |
| 100+ | ₹375.72 | ₹37,572.00 |
| 500+ | ₹357.66 | ₹1,78,830.00 |
| 1,000+ | ₹349.71 | ₹3,49,710.00 |
1 × ₹518.87
₹518.87
excl. GST
₹612.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STD45NF75T4
₹518.87 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 75V
- Current - Continuous Drain(Id)
- 40A
- Ciss-Input Capacitance
- 1.76nF
- Pd - Power Dissipation
- 125W
- Reverse Transfer Capacitance (Crss)
- 140pF
- RDS(on)
- 24mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 80nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.461 g
Overview
This power MOSFET series is developed using STMicroelectronics' proprietary STripFET™ process, specifically designed to minimize input capacitance and gate charge. This makes the devices suitable for use as primary switches in advanced high-efficiency isolated DC-DC converters for telecom and computing applications, as well as applications with low gate charge drive requirements.
Applications
- Switching applications
Key features
- AEC-Q101 qualified
- Excellent dv/dt capability
- 100% avalanche tested
- Low gate charge
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPD70N10S3-12#C536859Infineon · TO-252-3 | Infineon | TO-252-3 | 12 | ₹96.29 · 12 in stock | View |
 | IPD70N12S311ATMA1#C3289141Infineon · TO-252-3 | Infineon | TO-252-3 | On request | ₹197.10 · 0 in stock | View |
 | IRFR2307ZTRLPBF#C537957Infineon · DPAK(TO-252AA) | Infineon | DPAK(TO-252AA) | 100 | ₹230.56 · 100 in stock | View |
 | IRFR3607TRPBF#C74775Infineon · TO-252 | Infineon | TO-252 | 1,344 | ₹135.09 · 1,344 in stock | View |
 | IPD12CN10NGATMA1#C6969203Infineon · TO-252-3 | Infineon | TO-252-3 | On request | ₹230.40 · 0 in stock | View |
