STDatasheet (PDF)

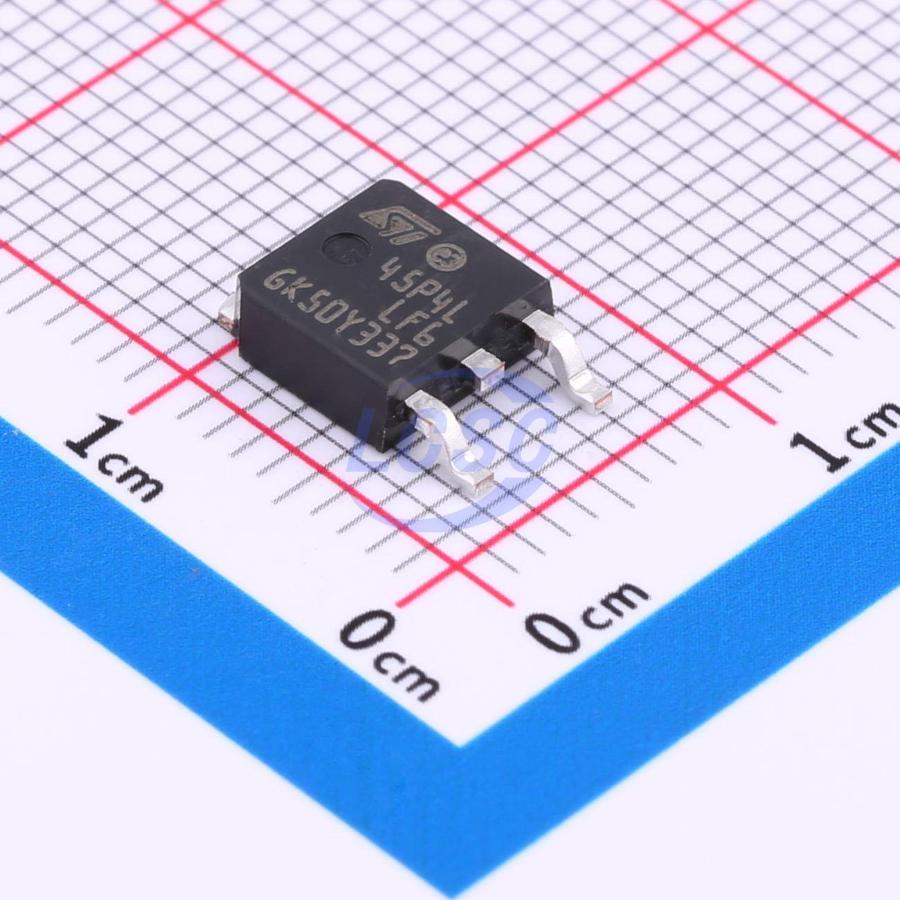

STD45P4LLF6AG
P-Channel 40V 50A 58W Surface Mount DPAK
DPAKROHS3 CompliantActive
MOSFET P-CH 40V 50A DPAK
- Manufacturer
- ST
- Manufacturer part #
- STD45P4LLF6AG
- Store part #
- C2969806
- Package / case
- DPAK
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17 in stock
#C2969806
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹148.90 | ₹148.90 |
| 10+ | ₹121.27 | ₹1,212.70 |
| 30+ | ₹107.55 | ₹3,226.50 |
| 100+ | ₹93.83 | ₹9,383.00 |
| 500+ | ₹85.56 | ₹42,780.00 |
| 1,000+ | ₹81.21 | ₹81,210.00 |
1 × ₹148.90
₹148.90
excl. GST
₹175.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STD45P4LLF6AG
₹148.90 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 345pF
- Current - Continuous Drain(Id)
- 50A
- Ciss-Input Capacitance
- 3.525nF
- Pd - Power Dissipation
- 58W
- Reverse Transfer Capacitance (Crss)
- 240pF
- RDS(on)
- 12mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 65.5nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.625 g
Overview
This device is a P-channel power MOSFET developed using STripFET™ F6 technology, featuring a novel trench gate structure. The resulting power MOSFET exhibits extremely low R<sub>DS(ON)</sub> across all package types.
Applications
- Switching applications
Key features
- Designed for automotive applications, AEC-Q101 qualified
- Ultra-low on-resistance
- Ultra-low gate charge
- High avalanche ruggedness
- Low gate drive power loss
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPM4050PK3#C5370994TECH PUBLIC · TO-252-3L | TECH PUBLIC | TO-252-3L | 1,865 | ₹29.91 · 1,865 in stock | View |
 | SP40P10TH#C41355195Siliup · TO-252-2L | Siliup | TO-252-2L | 325 | ₹19.00 · 325 in stock | View |
 | DOD45P04#C41416033DOINGTER · TO-252 | DOINGTER | TO-252 | 25 | ₹18.67 · 25 in stock | View |
 | E040P013CL1#C52204713Existar · TO-252 | Existar | TO-252 | 2,370 | ₹36.81 · 2,370 in stock | View |
 | HSU4115#C701015HUASHUO · TO-252-2 | HUASHUO | TO-252-2 | 2,080 | ₹43.91 · 2,080 in stock | View |
