MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
STDatasheet (PDF)

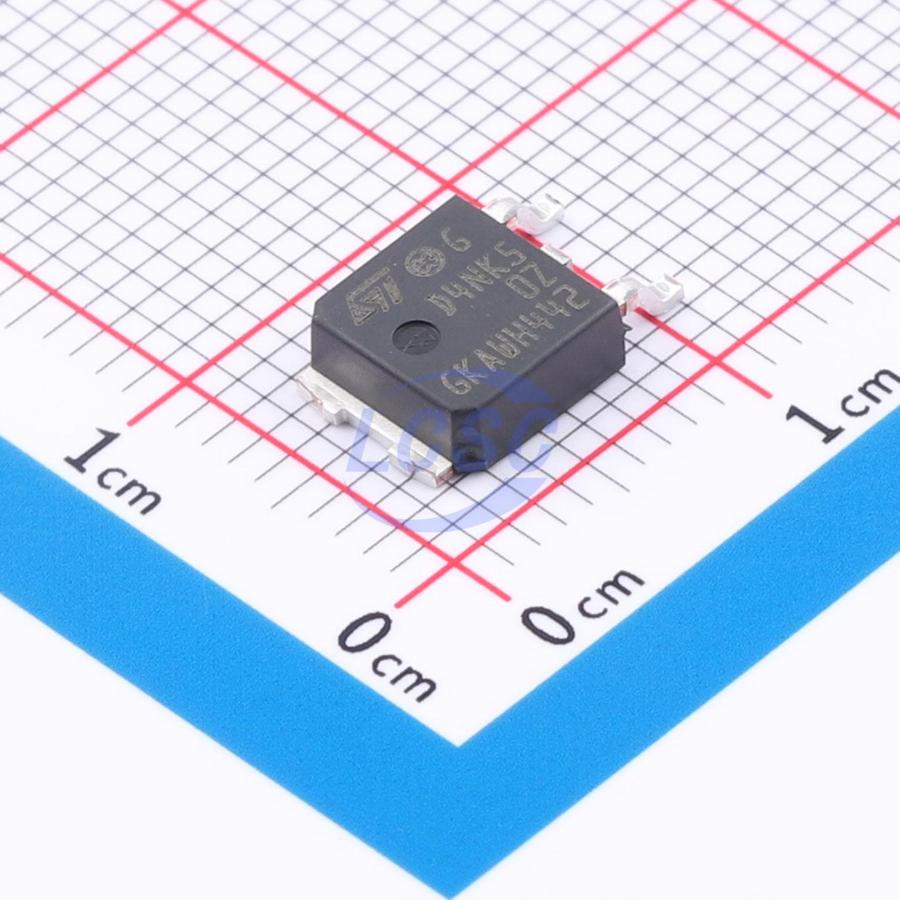

STD4NK50ZT4
N-Channel 500V 3A 45W Surface Mount DPAK(TO-252)
DPAK(TO-252)ROHS3 CompliantActive
MOSFET N-CH 500V 3A DPAK(TO-252)
- Manufacturer
- ST
- Manufacturer part #
- STD4NK50ZT4
- Store part #
- C2832809
- Package / case
- DPAK(TO-252)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
98 in stock
#C2832809
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹117.13 | ₹117.13 |
| 10+ | ₹94.96 | ₹949.60 |
| 30+ | ₹83.88 | ₹2,516.40 |
| 100+ | ₹73.02 | ₹7,302.00 |
| 500+ | ₹66.49 | ₹33,245.00 |
| 1,000+ | ₹63.03 | ₹63,030.00 |
1 × ₹117.13
₹117.13
excl. GST
₹138.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STD4NK50ZT4
₹117.13 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 49pF
- Ciss-Input Capacitance
- 310pF
- Pd - Power Dissipation
- 45W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 500V
- Current - Continuous Drain(Id)
- 3A
- Reverse Transfer Capacitance (Crss)
- 10pF
- RDS(on)
- 2.7Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 12nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.49 g
Overview
These high-voltage devices are Zener-protected N-channel Power MOSFETs developed using the SuperMESH™ technology, an optimization of the well-established PowerMESH™. In addition to a significant reduction in on-resistance, these devices are designed to ensure a high level of dv/dt capability for the most demanding applications.
Applications
- Switching applications
Key features
- Extremely high dv/dt capability
- 100% avalanche tested
- Gate charge minimized
- Very low intrinsic capacitance
- Zener-protected
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| KIA5N50SD#C20623380KIA Semicon Tech · TO-252 | KIA Semicon Tech | TO-252 | 2,470 | ₹21.09 · 2,470 in stock | View | |
 | TSD5N60M#C382368Truesemi · DPAK(TO-252) | Truesemi | DPAK(TO-252) | 590 | ₹29.93 · 590 in stock | View |
 | R8003KND3TL1#C5716820ROHM · TO-252 | ROHM | TO-252 | 2 | ₹429.53 · 2 in stock | View |
 | MS7N80HGD0#C55042315MASPOWER · TO-252 | MASPOWER | TO-252 | 40 | ₹67.71 · 40 in stock | View |
 | D4N65#C2875695Jingdao Microelectronics · TO-252-3 | Jingdao Microelectronics | TO-252-3 | 2,500 | ₹23.95 · 2,500 in stock | View |
