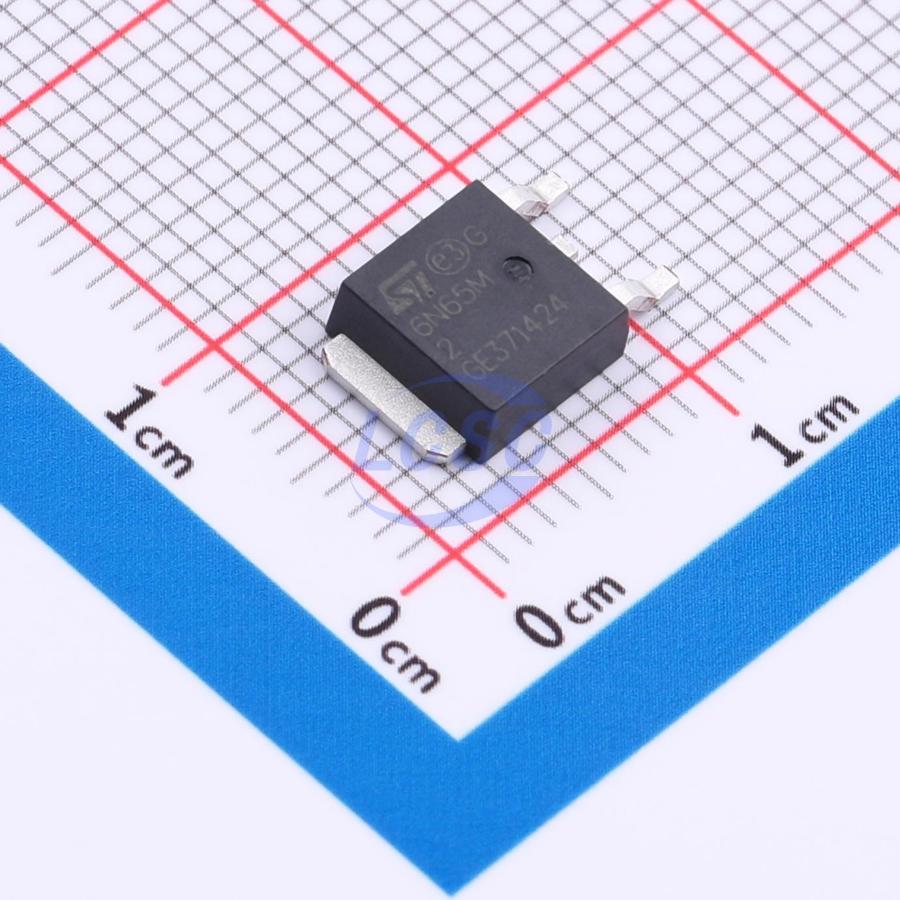

STD6N65M2
60W 650V 4A 1.35Ω@10V 1 N-channel N-Channel DPAK Single FETs, MOSFETs RoHS
DPAKROHS3 CompliantActive
N-channel, Current:4A, Voltage:650V
- Manufacturer
- ST
- Manufacturer part #
- STD6N65M2
- Store part #
- C2970537
- Package / case
- DPAK
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C2970537
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹360.24 | ₹360.24 |
| 10+ | ₹355.08 | ₹3,550.80 |
| 30+ | ₹351.87 | ₹10,556.10 |
| 100+ | ₹348.64 | ₹34,864.00 |
1 × ₹360.24
₹360.24
excl. GST
₹425.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STD6N65M2
₹360.24 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 12.8pF
- Ciss-Input Capacitance
- 226pF
- Pd - Power Dissipation
- 60W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Current - Continuous Drain(Id)
- 4A
- Reverse Transfer Capacitance (Crss)
- 0.65pF
- RDS(on)
- 1.35Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 9.8nC@10V
- Vgs
- ±25V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.524 g
Overview
These devices are N-channel power MOSFETs developed using MDmesh™ M2 technology. Thanks to their strip layout and improved vertical structure, these devices feature low on-resistance and optimized switching characteristics, making them suitable for the most demanding high-efficiency converters.
Applications
- Switching applications
Key features
- Ultra-low gate charge
- Excellent output capacitance (COSS) characteristics
- 100% avalanche tested
- Zener protection
