VBsemi ElecDatasheet (PDF)

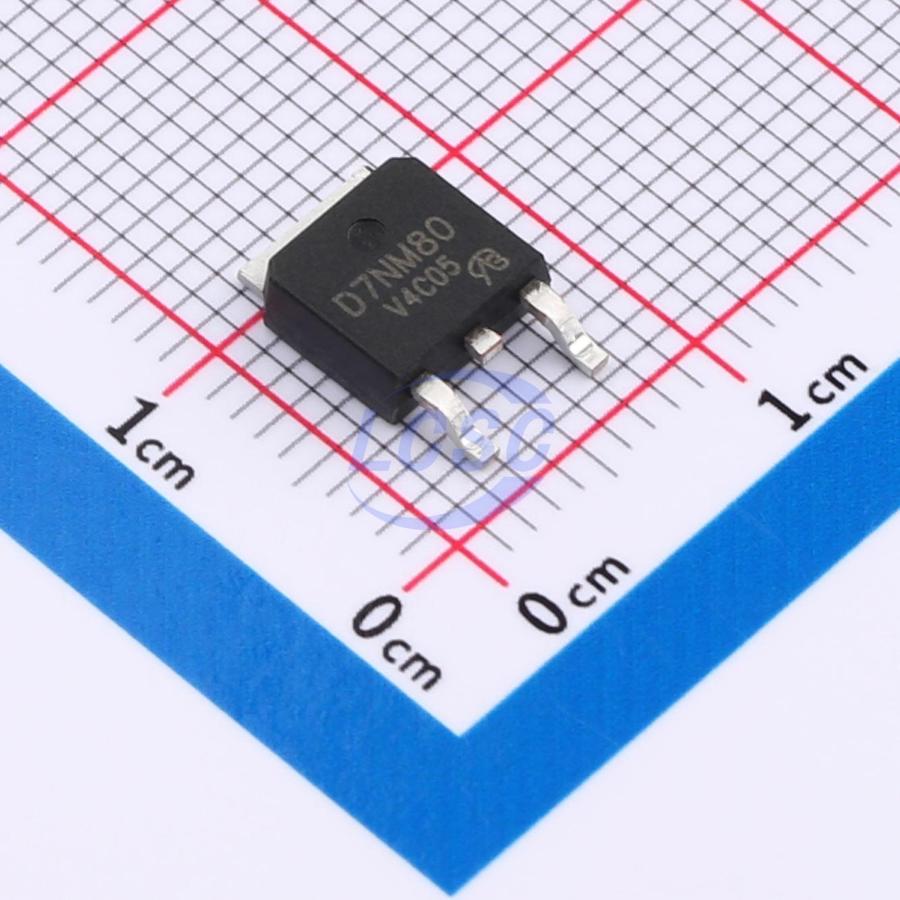

STD7NM80-VB
N-Channel 800V 5A 190W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 800V 5A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STD7NM80-VB
- Store part #
- C20755598
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C20755598
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹192.25 | ₹192.25 |
| 10+ | ₹161.46 | ₹1,614.60 |
| 30+ | ₹144.67 | ₹4,340.10 |
| 100+ | ₹125.51 | ₹12,551.00 |
| 500+ | ₹117.11 | ₹58,555.00 |
| 1,000+ | ₹113.24 | ₹1,13,240.00 |
1 × ₹192.25
₹192.25
excl. GST
₹226.86 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STD7NM80-VB
₹192.25 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 800V
- Output Capacitance(Coss)
- 800pF
- Current - Continuous Drain(Id)
- 5A
- Ciss-Input Capacitance
- 3.1nF
- Pd - Power Dissipation
- 190W
- Reverse Transfer Capacitance (Crss)
- 490pF
- RDS(on)
- 1.2Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 200nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.428 g
Overview
Applications
- Load switch
Key features
- Dynamic dV/dt Rating
- Repetitive Avalanche Rated
- Isolated Central Mounting Hole
- Fast Switching
- Ease of Paralleling
- Simple Drive Requirements
- Compliant to RoHS Directive 2002/95/EC
