HXY MOSFETDatasheet (PDF)

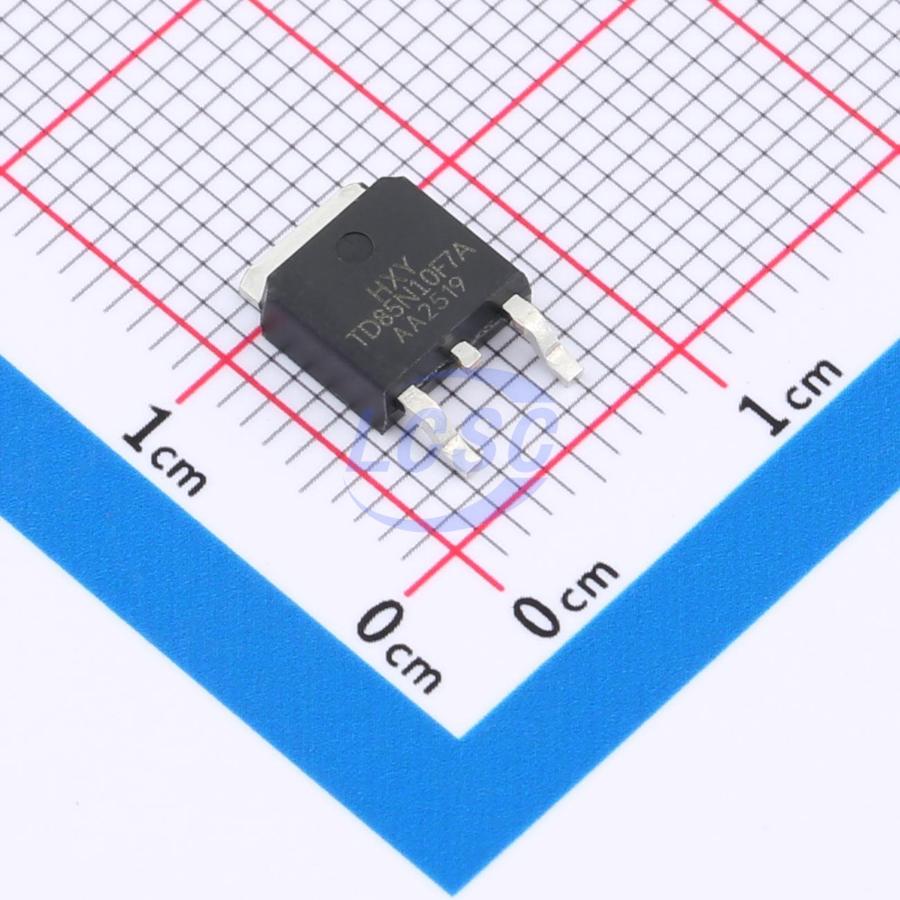

STD85N10F7AG-HXY
100V 70A 100W Surface Mount TO-252-2L
TO-252-2LROHS CompliantActive
MOSFET 100V 70A TO-252-2L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- STD85N10F7AG-HXY
- Store part #
- C48996335
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
97 in stock
#C48996335
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹195.66 | ₹195.66 |
| 10+ | ₹164.73 | ₹1,647.30 |
| 30+ | ₹147.77 | ₹4,433.10 |
| 100+ | ₹128.44 | ₹12,844.00 |
| 500+ | ₹119.85 | ₹59,925.00 |
| 1,000+ | ₹115.97 | ₹1,15,970.00 |
1 × ₹195.66
₹195.66
excl. GST
₹230.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STD85N10F7AG-HXY
₹195.66 for 1 + GST
Specifications
- Configuration
- Standalone
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 451pF
- Current - Continuous Drain(Id)
- 70A
- Ciss-Input Capacitance
- 1.368nF
- Pd - Power Dissipation
- 100W
- Reverse Transfer Capacitance (Crss)
- 12.9pF
- RDS(on)
- 8.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 31.3nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.8V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.394 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AOD66923-HXY#C22367362HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 126 | ₹68.08 · 126 in stock | View |
 | IPD12CN10NGATMA1-HXY#C51949337HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 97 | ₹139.60 · 97 in stock | View |
 | IPD70N10S3-12-HXY#C51949343HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 93 | ₹88.06 · 93 in stock | View |
 | FDD86110-HXY#C54582554HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 47 | ₹125.74 · 47 in stock | View |
 | DI054N10D1-AQ-HXY#C54582590HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 42 | ₹148.31 · 42 in stock | View |
