STDatasheet (PDF)

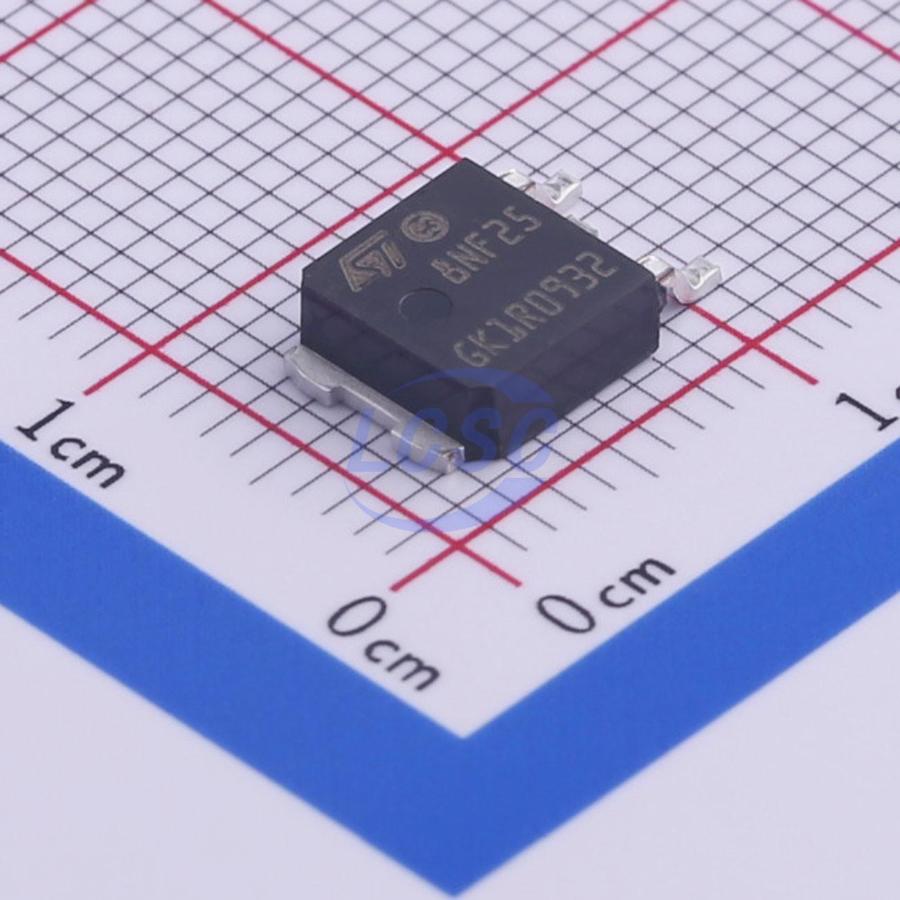

STD8NF25
72W 250V 8A 318mΩ@10V 1 N-channel N-Channel DPAK Single FETs, MOSFETs RoHS
DPAKROHS3 CompliantActive
- Manufacturer
- ST
- Manufacturer part #
- STD8NF25
- Store part #
- C457500
- Package / case
- DPAK
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
107 in stock
#C457500
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹87.12 | ₹87.12 |
| 10+ | ₹69.70 | ₹697.00 |
| 30+ | ₹60.98 | ₹1,829.40 |
| 100+ | ₹52.27 | ₹5,227.00 |
| 500+ | ₹47.05 | ₹23,525.00 |
| 1,000+ | ₹44.43 | ₹44,430.00 |
1 × ₹87.12
₹87.12
excl. GST
₹102.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STD8NF25
₹87.12 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 90pF
- Ciss-Input Capacitance
- 500pF
- Pd - Power Dissipation
- 72W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 250V
- Current - Continuous Drain(Id)
- 8A
- Reverse Transfer Capacitance (Crss)
- 15pF
- RDS(on)
- 318mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 16nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.536 g
Overview
This power MOSFET series is developed using STMicroelectronics' proprietary STripFET™ process, specifically designed to minimize input capacitance and gate charge. This makes the device suitable as the main switch in advanced high-efficiency isolated DC-DC converters for telecom and computer applications, as well as applications with low gate charge drive requirements.
Applications
- Switching applications
Key features
- AEC-Q101 qualified
- 100% avalanche tested
- Maximum junction temperature 175 °C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FQD9N25TM-TP#C48543192TECH PUBLIC · TO-252 | TECH PUBLIC | TO-252 | 285 | ₹104.65 · 285 in stock | View |
| STD15N60M2-EP#C5268729ST · DPAK | ST | DPAK | 26 | ₹257.93 · 26 in stock | View | |
 | TSD65R550#C39832940Truesemi · TO-252 | Truesemi | TO-252 | 58 | ₹60.71 · 58 in stock | View |
 | 8N65R#C42441704HL · TO-252-3L | HL | TO-252-3L | 243 | ₹63.68 · 243 in stock | View |
| XR60R320#C49328950XNRUSEMI · TO-252-3L | XNRUSEMI | TO-252-3L | 2,489 | ₹72.42 · 2,489 in stock | View | |
