HXY MOSFETDatasheet (PDF)

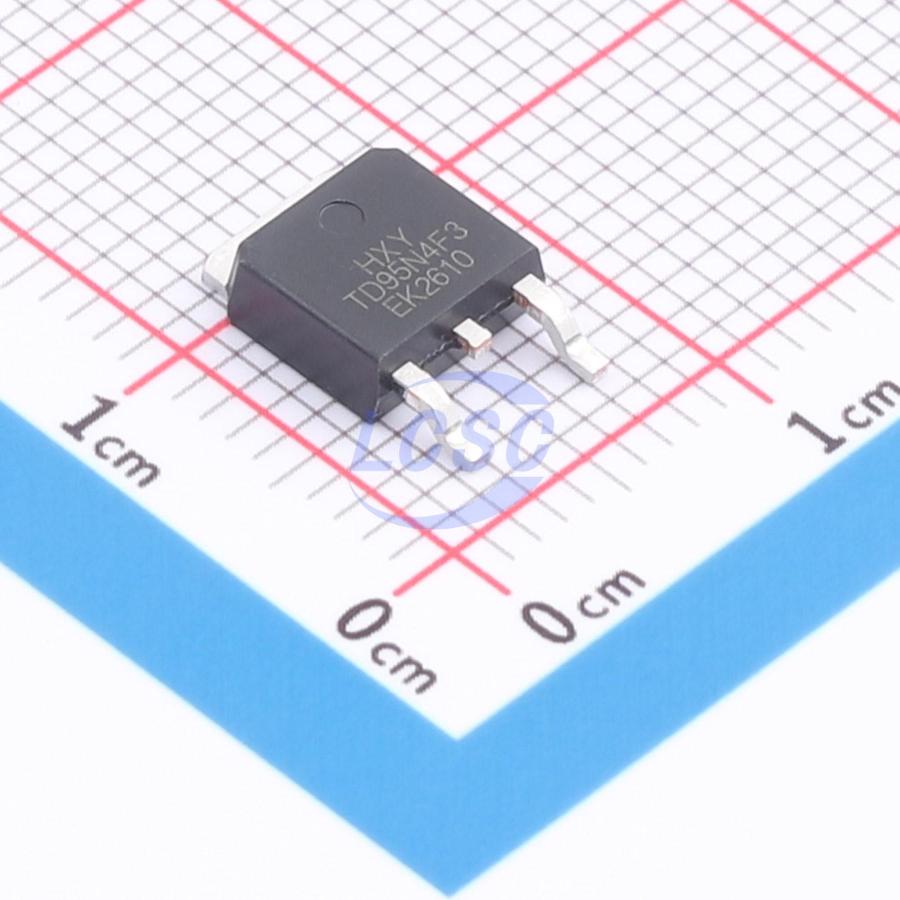

STD95N4F3-HXY
40V 60A 114W 5.4mΩ@10V 1 N-channel N-Channel TO-252-2L Single FETs, MOSFETs
TO-252-2LRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- STD95N4F3-HXY
- Store part #
- C54582770
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
44 in stock
#C54582770
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹70.29 | ₹70.29 |
| 10+ | ₹55.72 | ₹557.20 |
| 30+ | ₹49.51 | ₹1,485.30 |
| 100+ | ₹41.58 | ₹4,158.00 |
| 500+ | ₹38.16 | ₹19,080.00 |
| 1,000+ | ₹36.01 | ₹36,010.00 |
1 × ₹70.29
₹70.29
excl. GST
₹82.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STD95N4F3-HXY
₹70.29 for 1 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 167pF
- Current - Continuous Drain(Id)
- 60A
- Ciss-Input Capacitance
- 2.443nF
- Pd - Power Dissipation
- 114W
- Reverse Transfer Capacitance (Crss)
- 138pF
- RDS(on)
- 5.4mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 48nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.9V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.402 g
Overview
The STD95N4F3 employs advanced trench technology to deliver excellent on-resistance, low gate charge, and operation down to 4.5V gate voltage. This device is suitable for battery protection or other switching applications.
Applications
- Battery protection
- Load switch
- Uninterruptible power supply
Key features
- VDS = 40V, ID = 80A
- RDS(ON) < 5.4mΩ (at VGS = 10V)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STD95N4LF3-HXY#C54582768HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 38 | ₹75.44 · 38 in stock | View |
 | IPD75N04S406ATMA1-HXY#C54582772HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 48 | ₹90.86 · 48 in stock | View |
 | STD80N4F6-HXY#C54582773HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 29 | ₹76.73 · 29 in stock | View |
 | FDD8453LZ-F085-HXY#C54582779HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 48 | ₹124.08 · 48 in stock | View |
 | STD90N4F3-HXY#C54582783HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 48 | ₹57.87 · 48 in stock | View |
