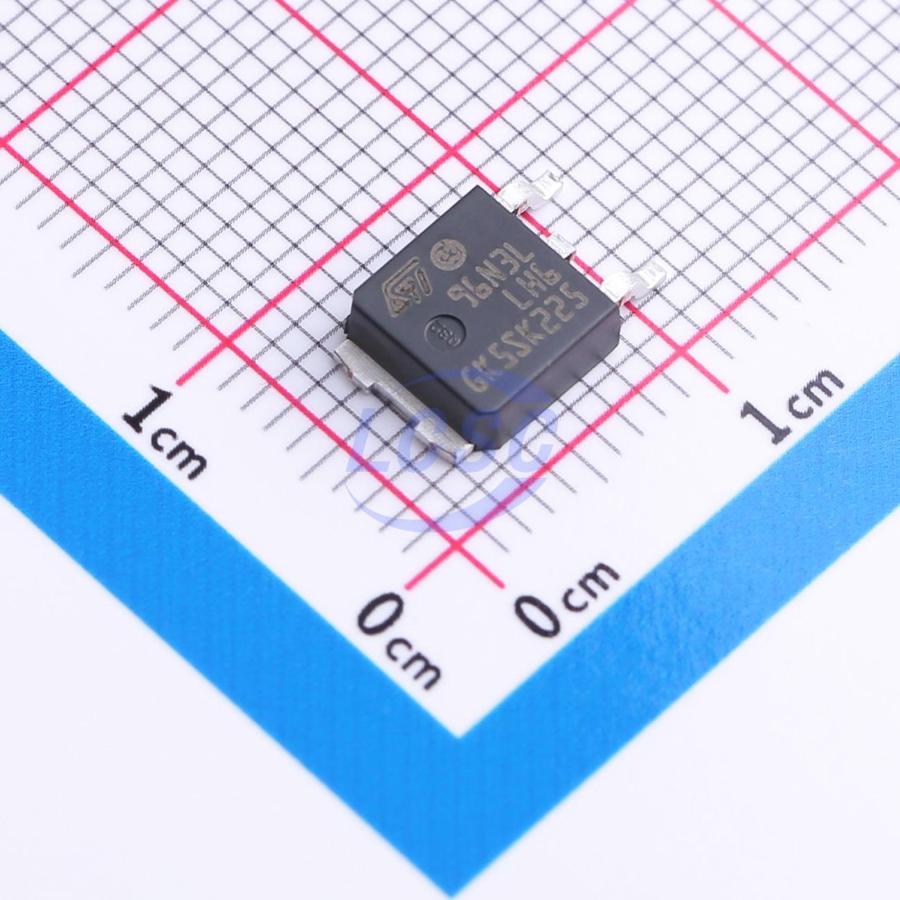

STD96N3LLH6

N-Channel 30V 80A 70W Surface Mount DPAK

DPAKROHS3 CompliantActive

MOSFET N-CH 30V 80A DPAK

Manufacturer: ST
Manufacturer part #: STD96N3LLH6
Store part #: C2970169
Package / case: DPAK
Category: Single FETs, MOSFETs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

15 in stock

#C2970169

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹216.61	₹216.61
10+	₹211.24	₹2,112.40
30+	₹207.38	₹6,221.40
100+	₹203.73	₹20,373.00

Quantity (min 1)

1 × ₹216.61

₹216.61

excl. GST

₹255.60 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

STD96N3LLH6

₹216.61 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Capacitance(Coss): 400pF
Ciss-Input Capacitance: 2.2nF
Pd - Power Dissipation: 70W
Operating Temperature: -55℃~+175℃
Drain to Source Voltage: 30V
Current - Continuous Drain(Id): 80A
Reverse Transfer Capacitance (Crss): 280pF
RDS(on): 7mΩ@5.5V
Number: 1 N-channel
Gate Charge(Qg): 20nC@4.5V
Vgs: ±20V
Gate Threshold Voltage (Vgs(th)): 2.5V
Type: N-Channel

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.49 g

Overview

This product is an N-channel Power MOSFET that utilizes the 6th generation of design rules of ST’s proprietary STripFET™ technology, with a new gate structure. The resulting Power MOSFET exhibits the lowest RDS(on) in all packages.

Applications

Switching applications
Automotive

Key features

RDS(on)*Qg industry benchmark
Extremely low on-resistance RDS(on)
High avalanche ruggedness
Low gate drive power losses
