STDatasheet (PDF)

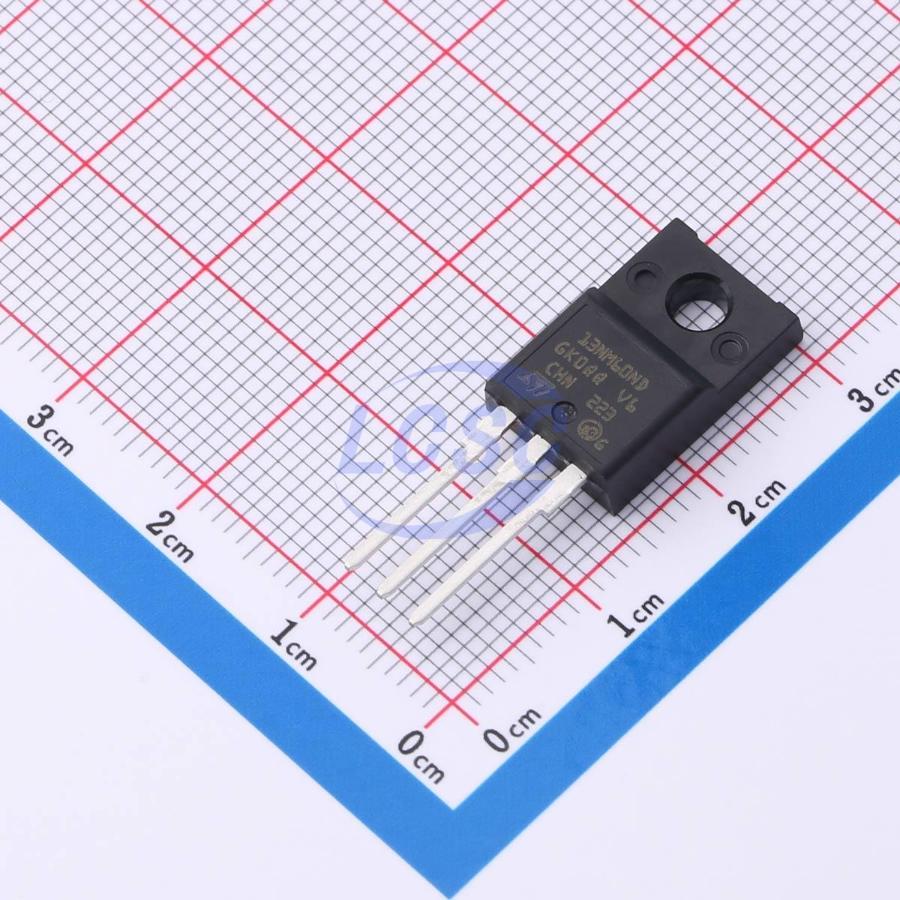

STF13NM60ND
25W 600V 11A 380mΩ@10V 1 N-channel N-Channel TO-220FP-3 Single FETs, MOSFETs RoHS
TO-220FP-3ROHS3 CompliantActive
- Manufacturer
- ST
- Manufacturer part #
- STF13NM60ND
- Store part #
- C2970141
- Package / case
- TO-220FP-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C2970141
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹410.26 | ₹410.26 |
| 10+ | ₹400.70 | ₹4,007.00 |
| 30+ | ₹394.19 | ₹11,825.70 |
| 100+ | ₹387.88 | ₹38,788.00 |
1 × ₹410.26
₹410.26
excl. GST
₹484.11 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STF13NM60ND
₹410.26 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 47pF
- Ciss-Input Capacitance
- 845pF
- Pd - Power Dissipation
- 25W
- Drain to Source Voltage
- 600V
- Current - Continuous Drain(Id)
- 11A
- Reverse Transfer Capacitance (Crss)
- 2.5pF
- RDS(on)
- 380mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 24.5nC@10V
- Vgs
- ±25V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.42 g
Overview
These FDmesh™ II power MOSFETs with intrinsic fast-recovery body diode are manufactured using second-generation MDmesh™ technology. These innovative devices feature a new strip layout vertical structure with extremely low on-resistance and excellent switching performance. They are ideal for bridge topologies and zero-voltage switching (ZVS) phase-shift converters.
Applications
- Switching applications
Key features
- Industry-leading RDS(on) × area product among fast recovery diode devices worldwide
- 100% avalanche tested
- Low input capacitance and gate charge
- Low gate input resistance
- Extremely high dv/dt and avalanche capability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STF18N60M2#C146209ST · TO-220FP | ST | TO-220FP | 2,690 | ₹79.04 · 2,690 in stock | View |
 | STFH18N60M2#C495240ST · TO-220FP-3 | ST | TO-220FP-3 | 4 | ₹132.04 · 4 in stock | View |
 | TSF70R360#C22377302Truesemi · TO-220F | Truesemi | TO-220F | 26 | ₹108.43 · 26 in stock | View |
 | STF18N65M2#C155552ST · TO-220FP | ST | TO-220FP | 61 | ₹227.52 · 61 in stock | View |
 | STF16N60M6#C155608ST · TO-220FPAB-3 | ST | TO-220FPAB-3 | 2 | ₹551.72 · 2 in stock | View |
