STDatasheet (PDF)

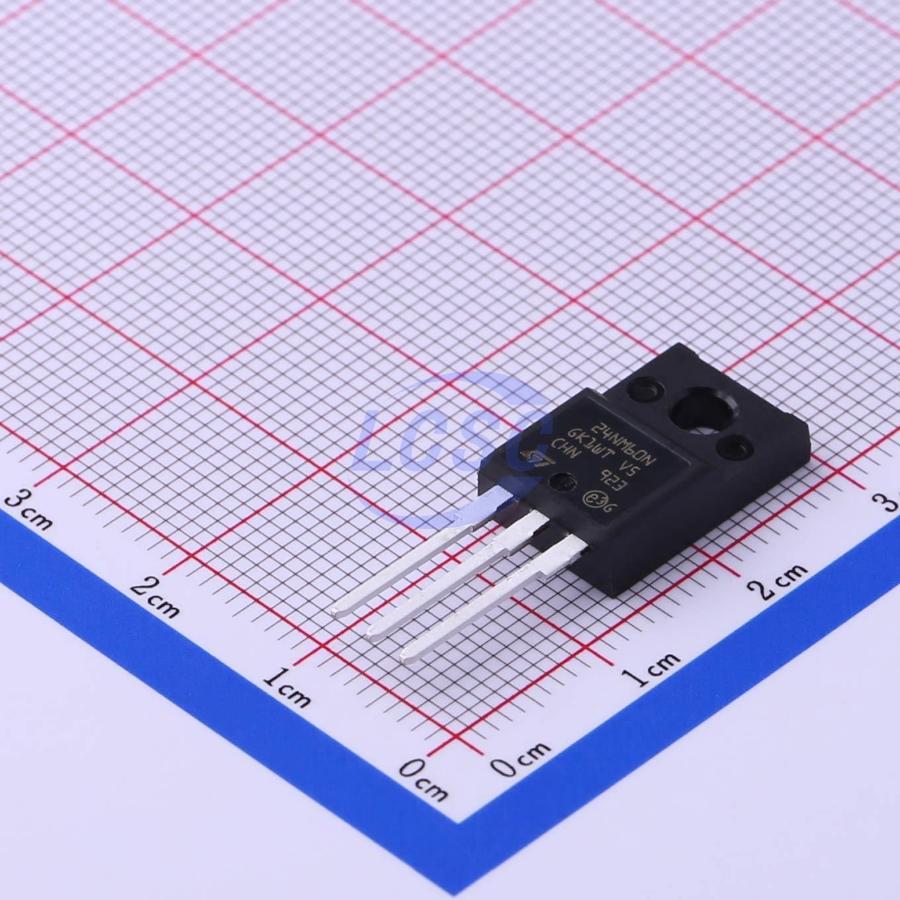

STF24NM60N
N-Channel 17A 125W Through Hole TO-220FP
TO-220FPROHS3 CompliantActive
MOSFET N-CH 17A TO-220FP
- Manufacturer
- ST
- Manufacturer part #
- STF24NM60N
- Store part #
- C455169
- Package / case
- TO-220FP
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
82 in stock
#C455169
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹251.20 | ₹251.20 |
| 10+ | ₹217.74 | ₹2,177.40 |
| 50+ | ₹187.31 | ₹9,365.50 |
| 100+ | ₹166.67 | ₹16,667.00 |
| 500+ | ₹157.54 | ₹78,770.00 |
| 1,000+ | ₹153.42 | ₹1,53,420.00 |
1 × ₹251.20
₹251.20
excl. GST
₹296.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STF24NM60N
₹251.20 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 80pF
- Ciss-Input Capacitance
- 1.33nF
- Pd - Power Dissipation
- 125W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Current - Continuous Drain(Id)
- 17A
- Reverse Transfer Capacitance (Crss)
- 3.2pF
- RDS(on)
- 168mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 44nC@480V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.84 g
Overview
These devices are N-channel Power MOSFETs developed using the second generation of MDmesh™ technology. This revolutionary Power MOSFET associates a vertical structure to the company’s strip layout to yield one of the lowest on-resistance and gate charge. It is therefore suitable for the most demanding high efficiency converters.
Applications
- Switching applications
Key features
- 100% avalanche tested
- Low input capacitance and gate charge
- Low gate input resistance
Alternatives
Similar parts — check the datasheet before substituting.
