VBsemi ElecDatasheet (PDF)

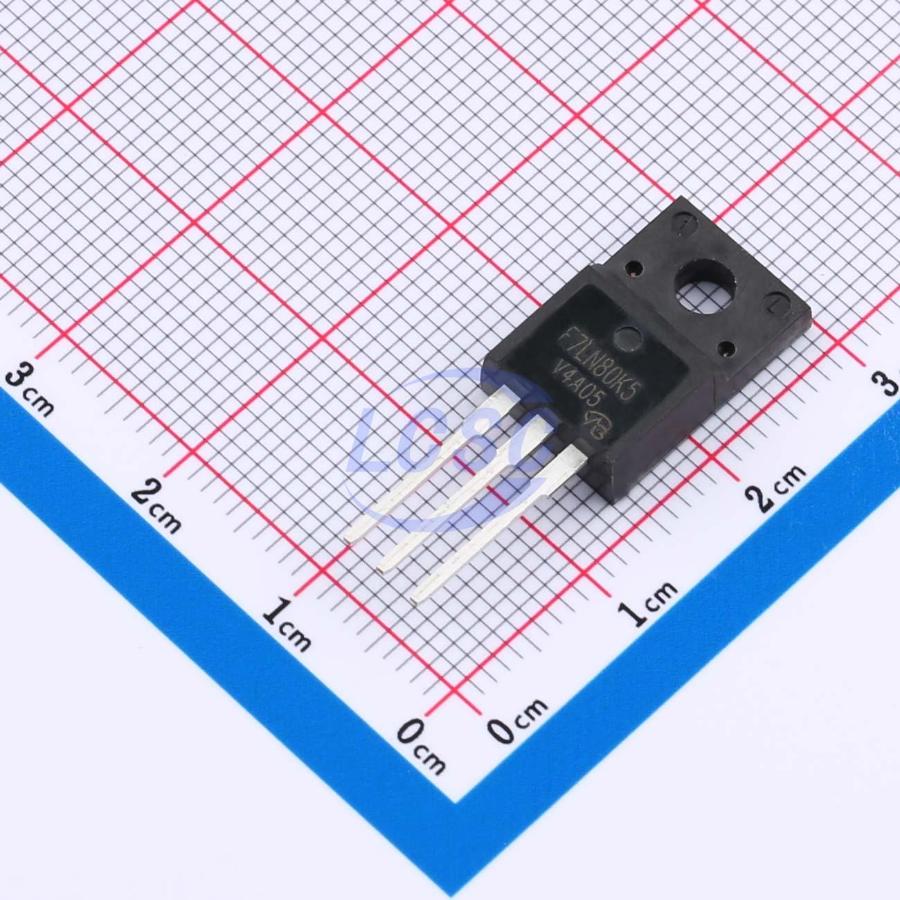

STF7LN80K5-VB
N-Channel 800V 5A 90W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 800V 5A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STF7LN80K5-VB
- Store part #
- C22357327
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C22357327
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹185.27 | ₹185.27 |
| 10+ | ₹153.35 | ₹1,533.50 |
| 50+ | ₹135.70 | ₹6,785.00 |
| 100+ | ₹115.75 | ₹11,575.00 |
| 500+ | ₹106.92 | ₹53,460.00 |
| 1,000+ | ₹102.93 | ₹1,02,930.00 |
1 × ₹185.27
₹185.27
excl. GST
₹218.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STF7LN80K5-VB
₹185.27 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 800V
- Output Capacitance(Coss)
- 80pF
- Current - Continuous Drain(Id)
- 5A
- Ciss-Input Capacitance
- 1.6nF
- Pd - Power Dissipation
- 90W
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 1.1Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 73nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.8 g
Overview
Applications
- Server and telecom power supplies
- Switch mode power supplies (SMPS)
- Power factor correction power supplies (PFC)
- Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
- Industrial
Key features
- Low figure-of-merit (FOM) R_on × Q_g
- Low input capacitance (C_iss)
- Reduced switching and conduction losses
- Ultra low gate charge (Q_g)
- Avalanche energy rated (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FCPF1300N80Z-VB#C22357326VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 5 | ₹185.27 · 5 in stock | View |
 | FCPF850N80Z-VB#C22357323VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 5 | ₹232.53 · 5 in stock | View |
 | TK7A80W-VB#C22357324VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 5 | ₹232.53 · 5 in stock | View |
 | NTPF360N80S3Z-VB#C22357317VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 2 | ₹348.90 · 2 in stock | View |
 | FCPF400N80ZL1-VB#C22357318VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 4 | ₹348.90 · 4 in stock | View |
